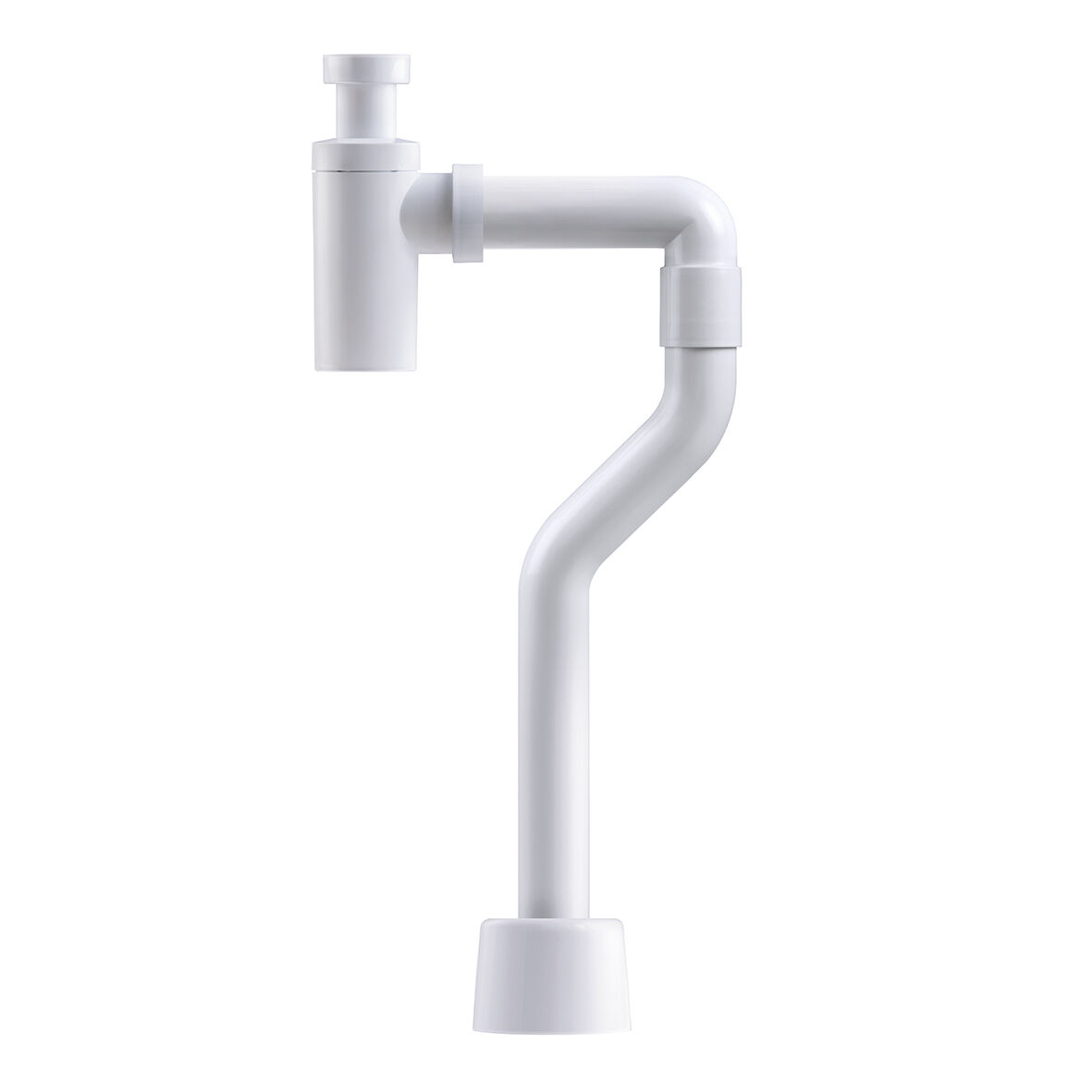

S-Bend water trap kit designed for floor connection with a 1¼" bottle trap and a 40mm diameter outlet pipe. This water trap kit allows for floor installation directly below the vertical waste, and 320mm to the side. Comes with floor cover.
- Cuttable pipes
- Divisible water trap for easy cleaning
- Telescopic pipe for adjusting the distance to the washbasin
- Enables installation in the floor directly below the bottom valve and 320mm to the side of the centre
- Cuttable pipes
- Divisible water trap for easy cleaning
- Telescopic pipe for adjusting the distance to the washbasin
- Enables installation in the floor directly below the bottom valve and 320mm to the side of the centre
Set of 175 No S-Bend water trap kits. Designed for floor connection with a 1¼" bottle trap and a 40mm diameter outlet pipe. This water trap kit allows for floor installation directly below the vertical waste, and 320mm to the side. Comes with floor cover.
- Cuttable pipes
- Divisible water trap for easy cleaning
- Telescopic pipe for adjusting the distance to the washbasin
- Enables installation in the floor directly below the bottom valve and 320mm to the side of the centre
- Cuttable pipes
- Divisible water trap for easy cleaning
- Telescopic pipe for adjusting the distance to the washbasin
- Enables installation in the floor directly below the bottom valve and 320mm to the side of the centre
S-Bend water trap kit designed for floor connection with a 1¼" Design bottle trap and a 40mm diameter outlet pipe. This water trap kit allows for floor installation directly below the vertical waste, and 320mm to the side. Comes with floor cover.
- Cuttable pipes
- Divisible water trap for easy cleaning
- Telescopic pipe for adjusting the distance to the washbasin
- Enables installation in the floor directly below the bottom valve and 320mm to the side of the centre
RSK Number
8075608
Function
To washbasin, connection to floor
Item Color
White
Material
PP, ABS
Outlet Dimension
G32xØ40 mm
Pressure Flow Temp
0,6 l/s
Version
With S-Bend and flange
RSK Number
8075609
Function
To washbasin, connection to floor
Item Color
White
Material
PP, ABS
Outlet Dimension
G32xØ40 mm
Pressure Flow Temp
0,6 l/s
Version
With S-Bend and flange
RSK Number
8075421
Function
To washbasin, connection to floor
Item Color
White
Material
PP, ABS
Outlet Dimension
G32xØ40 mm
Pressure Flow Temp
0,6 l/s
Version
With S-Bend and flange
