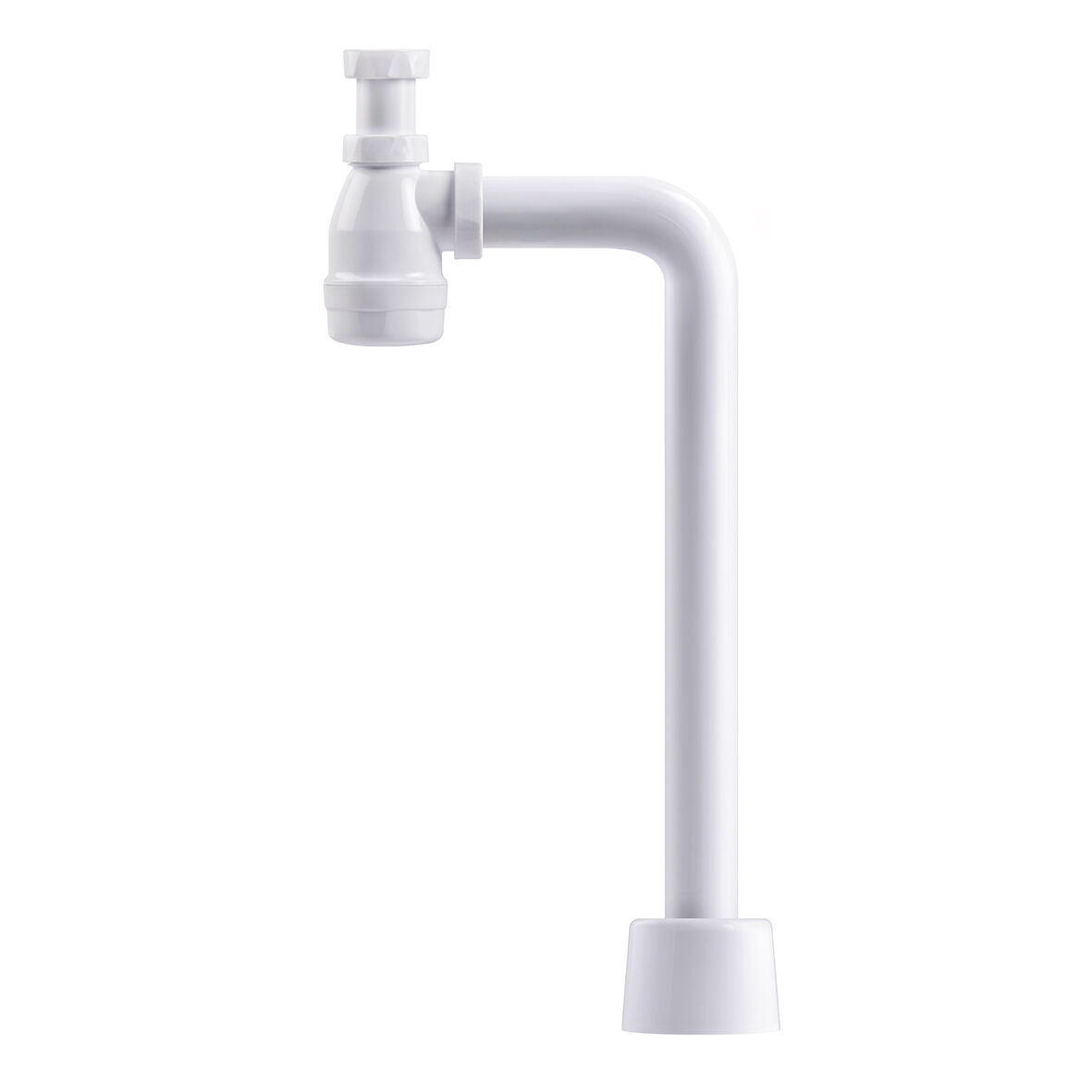

Water trap kit designed for floor connection with a 1¼" bottle trap and a 90°/40mm diameter outlet pipe. The bottle trap has a rubber seal for push-fit connection. Comes with floor cover.
- Cuttable pipes
- Divisible water trap for easy cleaning
- Delivered with flange
S-Bend water trap kit designed for floor connection with a 1¼" bottle trap and a 40mm diameter outlet pipe. The bottle trap contains a rubber seal for push-fit connections. This water trap kit allows for floor installation directly below the vertical waste, and 320mm to the side. Comes with floor cover.
- Cuttable pipes
- Divisible water trap for easy cleaning
- Enables installation in the floor directly below the bottom valve and 320mm to the side of the centre
RSK Number
8075611
Function
To washbasin, connection to floor
Item Color
White
Material
PP, ABS
Outlet Dimension
G32xØ40 mm
Pressure Flow Temp
0,6 l/s
Version
Push-fit bottle trap
RSK Number
8075610
Function
To washbasin, connection to floor
Item Color
White
Material
PP, ABS
Outlet Dimension
G32xØ40 mm
Pressure Flow Temp
0,6 l/s
Version
Push-fit bottle trap
