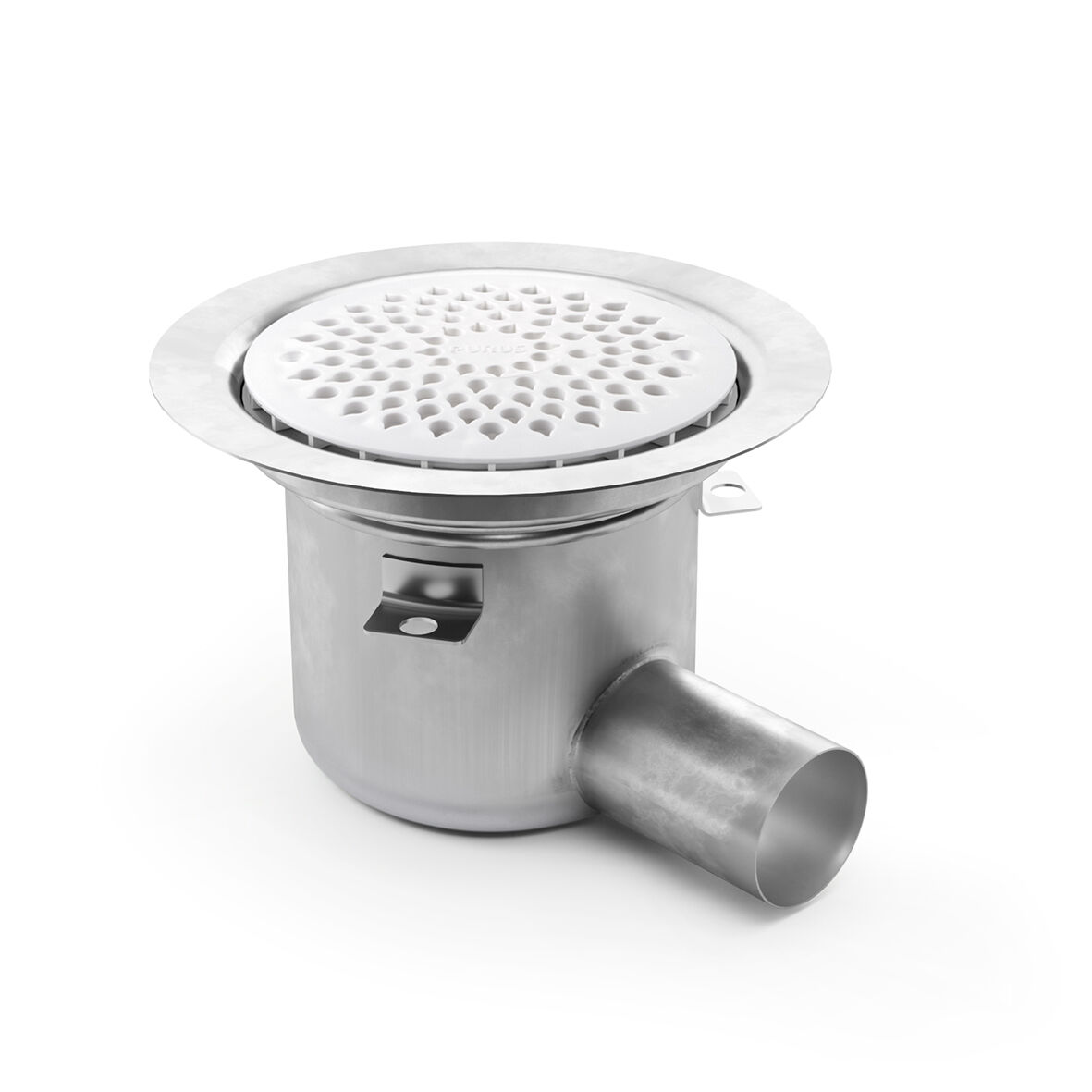

Untrapped Sigyn 50 P

The Sigyn 50 P untrapped floor drain has a 50 mm side outlet and is for installation in wooden or concrete joists. The Sigyn untrapped floor drain comes with a clamping ring and plastic grate. It also comes with a protective cover that is intended to prevent any concrete or debris from installation from entering the drain.

The automatic clamping ring is used for both sealing membrane and vinyl flooring. It is a self-adjusting clamping ring for vinyl flooring with a thickness of 1,5 mm to 2 mm.

The Sigyn 50 P untrapped floor drain has a 50 mm side outlet and is for installation in wooden or concrete joists. The Sigyn untrapped floor drain comes with a clamping ring and plastic grate. It also comes with a protective cover that is intended to prevent any concrete or debris from installation from entering the drain.

The automatic clamping ring is used for both sealing membrane and vinyl flooring. It is a self-adjusting clamping ring for vinyl flooring with a thickness of 1,5 mm to 2 mm.
  • High resistance to chemicals
  • Corrosion resistant
  • Recyclable
  • High strength
RSK Number
7152420
Floor Construction
Concrete/Wood
Function
Side outlet
Item Color
Stainless
Material
PP, Acid-resistant stainless steel 1.4404
Outlet Dimension
Ø50 mm
Pressure Flow Temp
0,8 l/s
Size
Ø150 mm
Surface
Cold rolled (2B)
Version
With plastic grating
Installation instructions
Maintenance Instructions
Tech drawing
