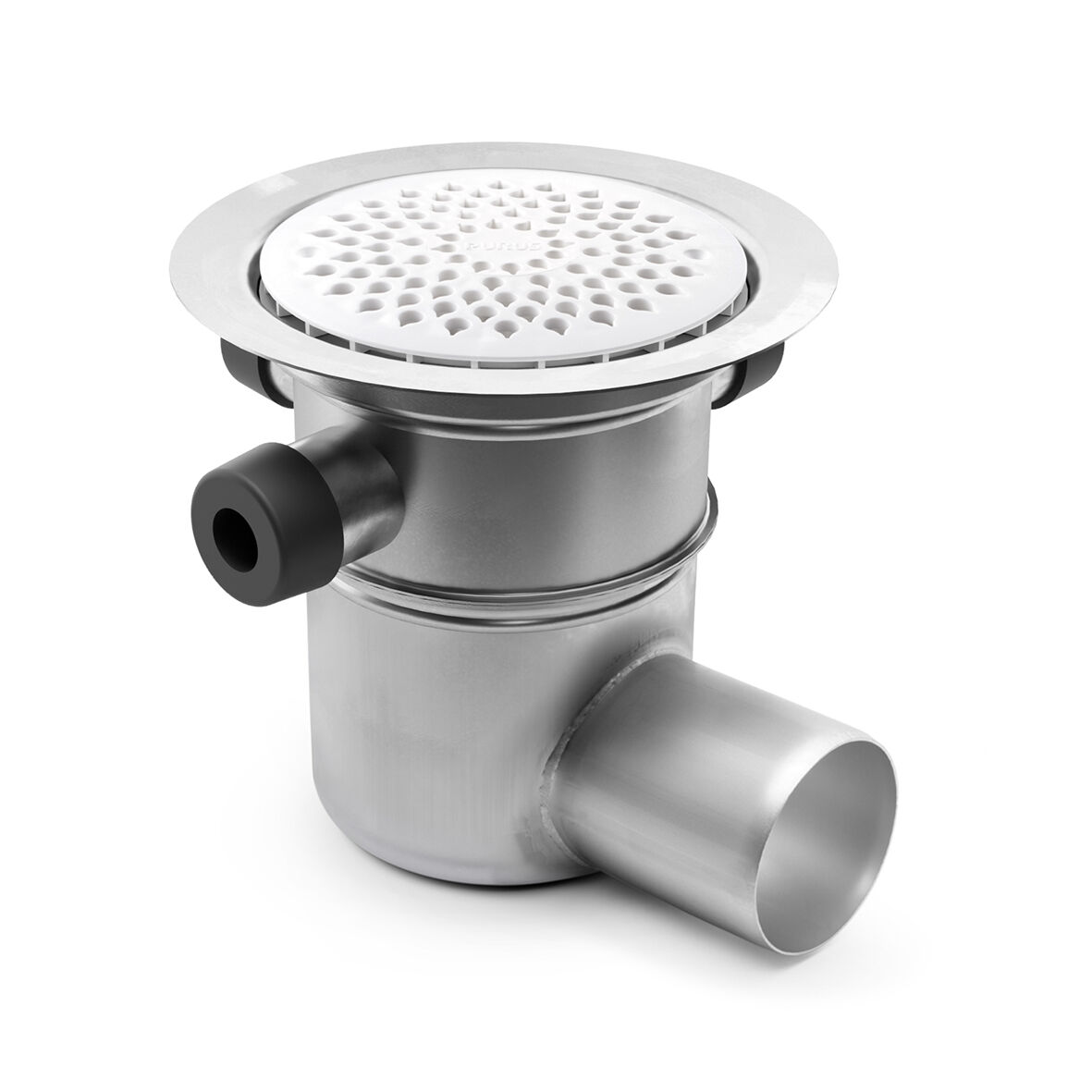

The Sigex 75 P untrapped floor drain has a 75 mm side outlet and three extra inlets. Only one of the extra inlets should be used. The gully is suitable for installation in wooden or concrete joists and comes with a clamping ring and plastic grate. It also comes with a protective cover that is intended to prevent any concrete or debris from installation from entering the drain.
The automatic clamping ring is used for both sealing membrane and vinyl flooring. It is a self-adjusting clamping ring for vinyl flooring with a thickness of 1,5 mm to 2 mm.
The automatic clamping ring is used for both sealing membrane and vinyl flooring. It is a self-adjusting clamping ring for vinyl flooring with a thickness of 1,5 mm to 2 mm.
- High resistance to chemicals
- Corrosion resistant
- Recyclable
- High strength
RSK Number
7118108
Floor Construction
Concrete flooring
Function
Side outlet
Item Color
Stainless
Material
PP, Acid-resistant stainless steel 1.4404
Outlet Dimension
Ø75 mm
Pressure Flow Temp
1,1 l/s
Size
Ø150 mm
Surface
Cold rolled (2B)
Version
With plastic grating
