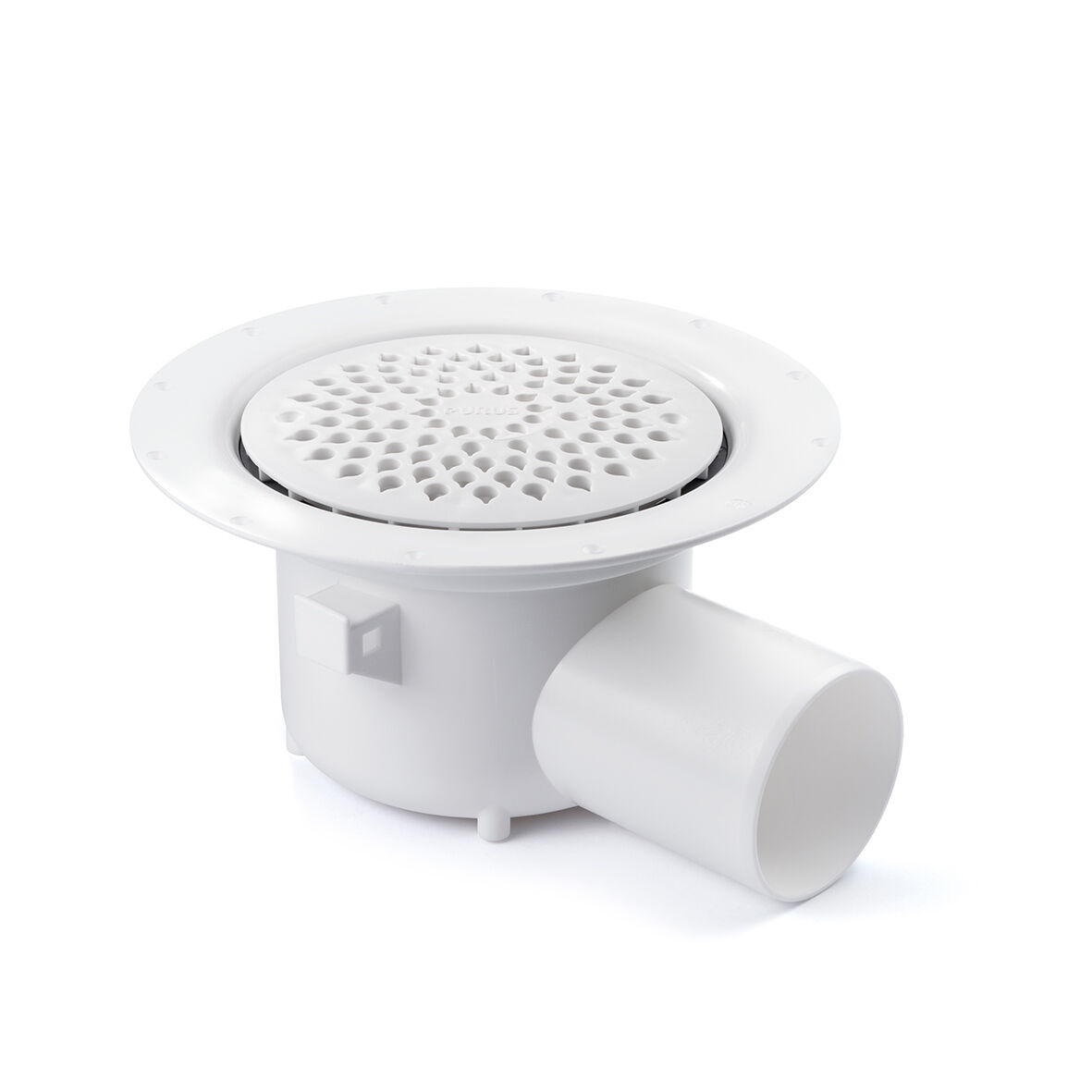

The Oden 75 Side untrapped floor drain has a 75 mm side outlet and is for installation in wooden or concrete joists. The Oden untrapped floor drain comes with a clamping ring and plastic grate. It also comes with a protective cover that is intended to prevent any concrete or debris from installation from entering the drain.
The automatic clamping ring is used for both sealing membrane and vinyl flooring. It is a self-adjusting clamping ring for vinyl flooring with a thickness of 1,5 mm to 2 mm.
The automatic clamping ring is used for both sealing membrane and vinyl flooring. It is a self-adjusting clamping ring for vinyl flooring with a thickness of 1,5 mm to 2 mm.
- Smooth base to the floor drain which prevents dirt from accumulating
- The untrapped drain is delivered with an automatic clamping ring and grating
- The automatic clamping ring means that no o-ring or loose screws need to be used during installation
RSK Number
7152427
Floor Construction
Concrete/Wood
Function
Side outlet
Item Color
White
Material
PP
Outlet Dimension
Ø75 mm
Pressure Flow Temp
1,0 l/s
Size
Ø150 mm
Version
With plastic grating
