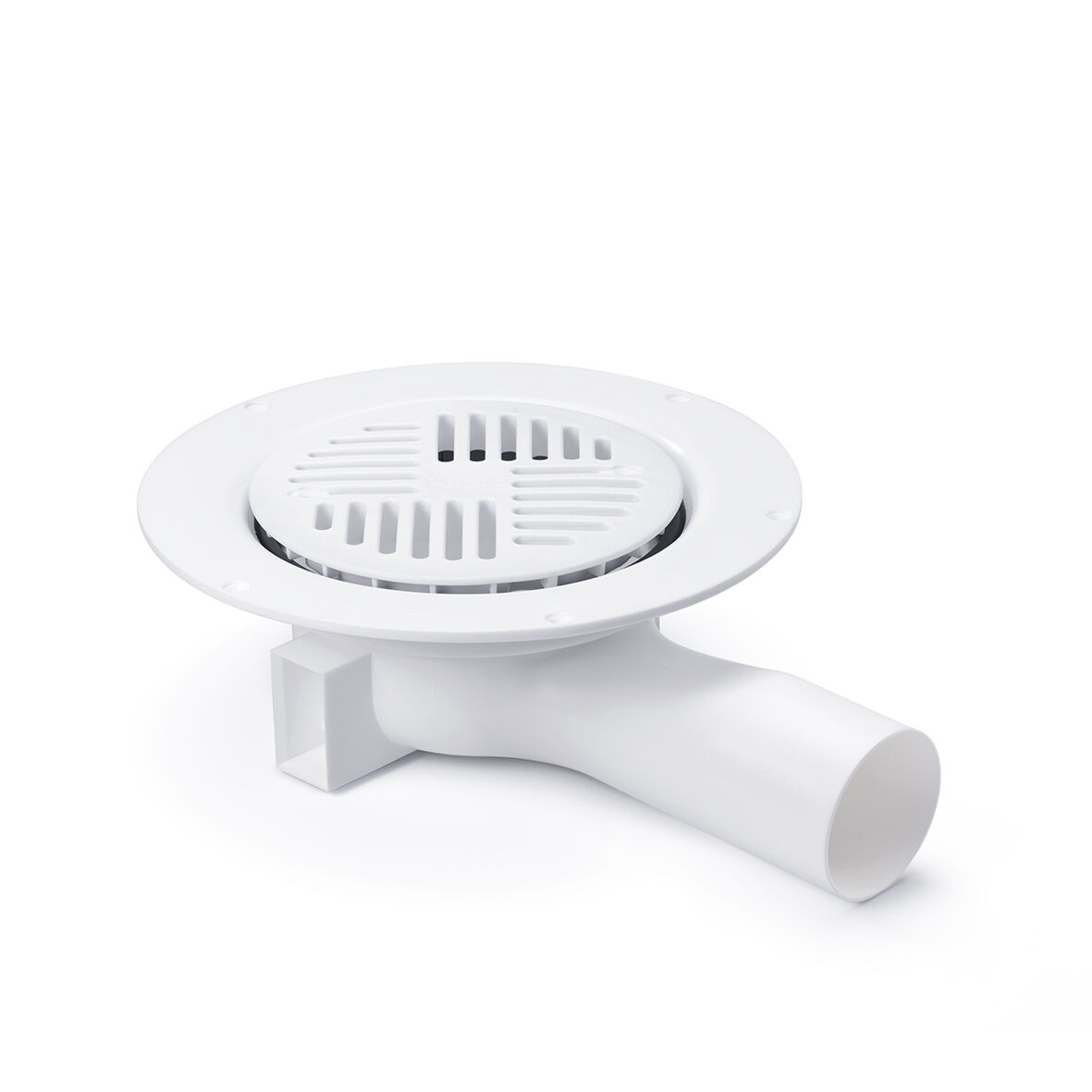

The Minimax 50 Side untrapped floor drain has a 50mm side outlet and is for installation in concrete floors. It has a low construction height of 70mm. The Minimax floor gully comes with a clamping ring and plastic grate, and does not include a water trap. Not suitable for installation underneath a bathtub.
The automatic clamping ring is used for both sealing membrane and vinyl flooring. It is a self-adjusting clamping ring for vinyl flooring with a thickness of 1,5 mm to 2 mm.
The automatic clamping ring is used for both sealing membrane and vinyl flooring. It is a self-adjusting clamping ring for vinyl flooring with a thickness of 1,5 mm to 2 mm.
- Low-built
- Smooth base to the floor drain which prevents dirt from accumulating
- The untrapped drain comes with an automatic clamping ring and grating
- The automatic clamping ring means that no o-ring or loose screws need to be used during installation
- The grating is designed to prevent any residual water from pooling
RSK Number
7152455
Floor Construction
Concrete flooring
Floor Covering
Concrete/Resin/Tiles/Vinyl
Function
Side outlet
Item Color
White
Material
PP
Outlet Dimension
Ø50 mm
Pressure Flow Temp
0,8 l/s
Size
130
Version
Low built
