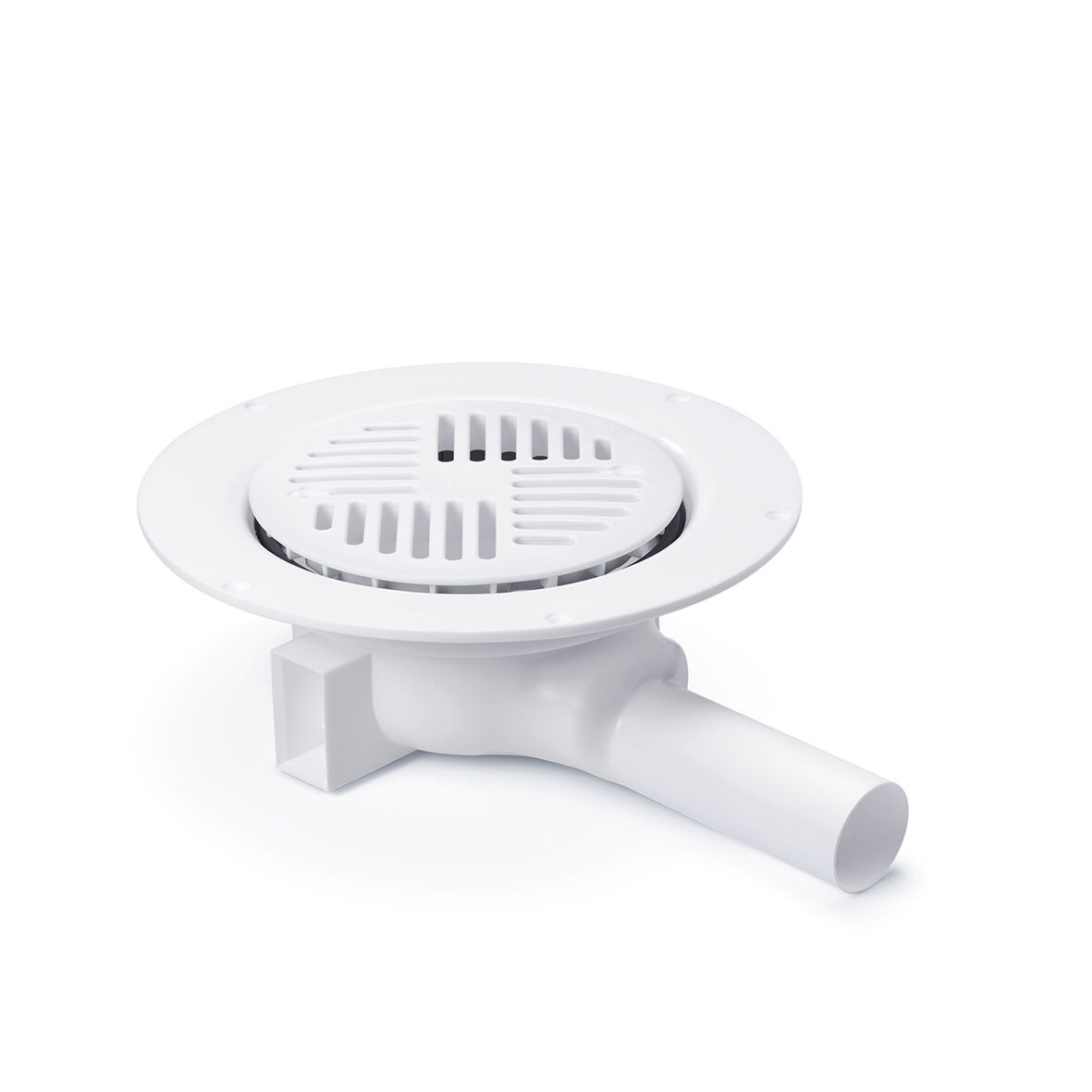

The Minimax 30 Side untrapped floor drain has a 30mm side outlet and is for installation in concrete or wooden floors. It has a low construction height of 70mm. The Minimax floor gully comes with a clamping ring and plastic grate, and does not include a water trap. Not suitable for installation underneath a bathtub.
The automatic clamping ring is used for both sealing membrane and vinyl flooring. It is a self-adjusting clamping ring for vinyl flooring with a thickness of 1,5 mm to 2 mm.
The automatic clamping ring is used for both sealing membrane and vinyl flooring. It is a self-adjusting clamping ring for vinyl flooring with a thickness of 1,5 mm to 2 mm.
- Low-built
- Smooth base to the floor drain which prevents dirt from accumulating
- The untrapped drain comes with an automatic clamping ring and grating
- The automatic clamping ring means that no o-ring or loose screws need to be used during installation
- The grating is designed to prevent any residual water from pooling
RSK Number
7152456
Floor Construction
Concrete flooring
Function
Side outlet
Item Color
White
Material
PP
Outlet Dimension
Ø32 mm
Pressure Flow Temp
0,5 l/s
Size
Ø130 mm
Version
Low built
