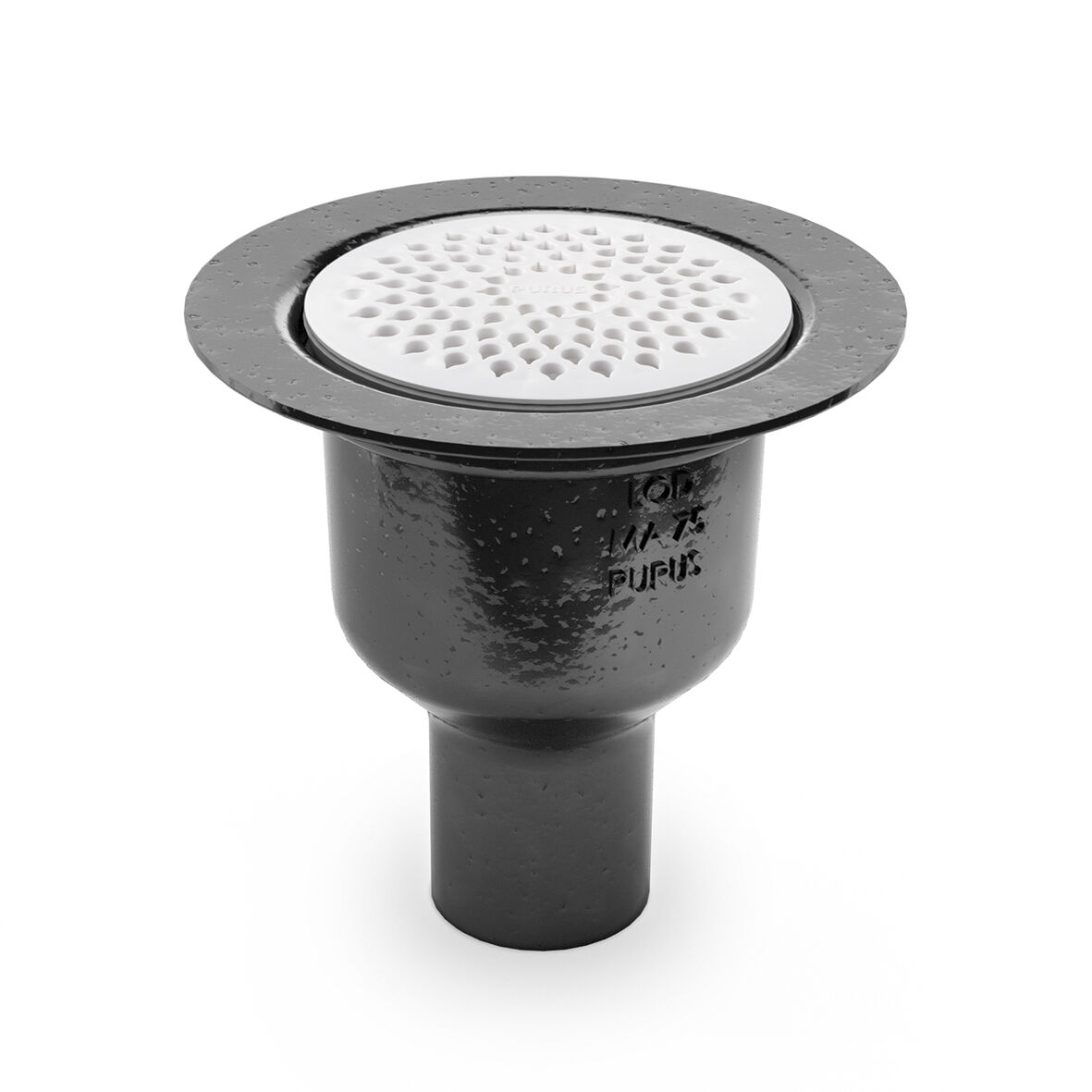

The Lod MA untrapped floor drain is manufactured in epoxy-coated cast iron. It has a 75mm vertical outlet and can be installed in concrete or wooden floors. The Lod MA floor gully comes with a clamping ring and plastic grate, and does not include a water trap. The outlet hole has a protective cover which will prevent any screed or similar from entering the drain.
The automatic clamping ring is used for both sealing membrane and vinyl flooring. It is a self-adjusting clamping ring for vinyl flooring with a thickness of 1,5 mm to 2 mm.
The automatic clamping ring is used for both sealing membrane and vinyl flooring. It is a self-adjusting clamping ring for vinyl flooring with a thickness of 1,5 mm to 2 mm.
- Sound-absorbing and fireproof
- The floor drain comes with an automatic clamping ring and grating
- The automatic clamping ring means that no o-ring or loose screws need to be used during installation
- The grating is designed to prevent any residual water from pooling
RSK Number
7152402
Floor Construction
Concrete flooring, Wooden joist
Floor Covering
Concrete/Resin/Tiles/Vinyl
Function
Bottom outlet
Item Color
Black
Material
Cast iron, PP
Outlet Dimension
Ø75 mm
Pressure Flow Temp
1,1 l/s
Size
Ø150 mm
Surface
Epoxy coated
Version
With plastic grating
