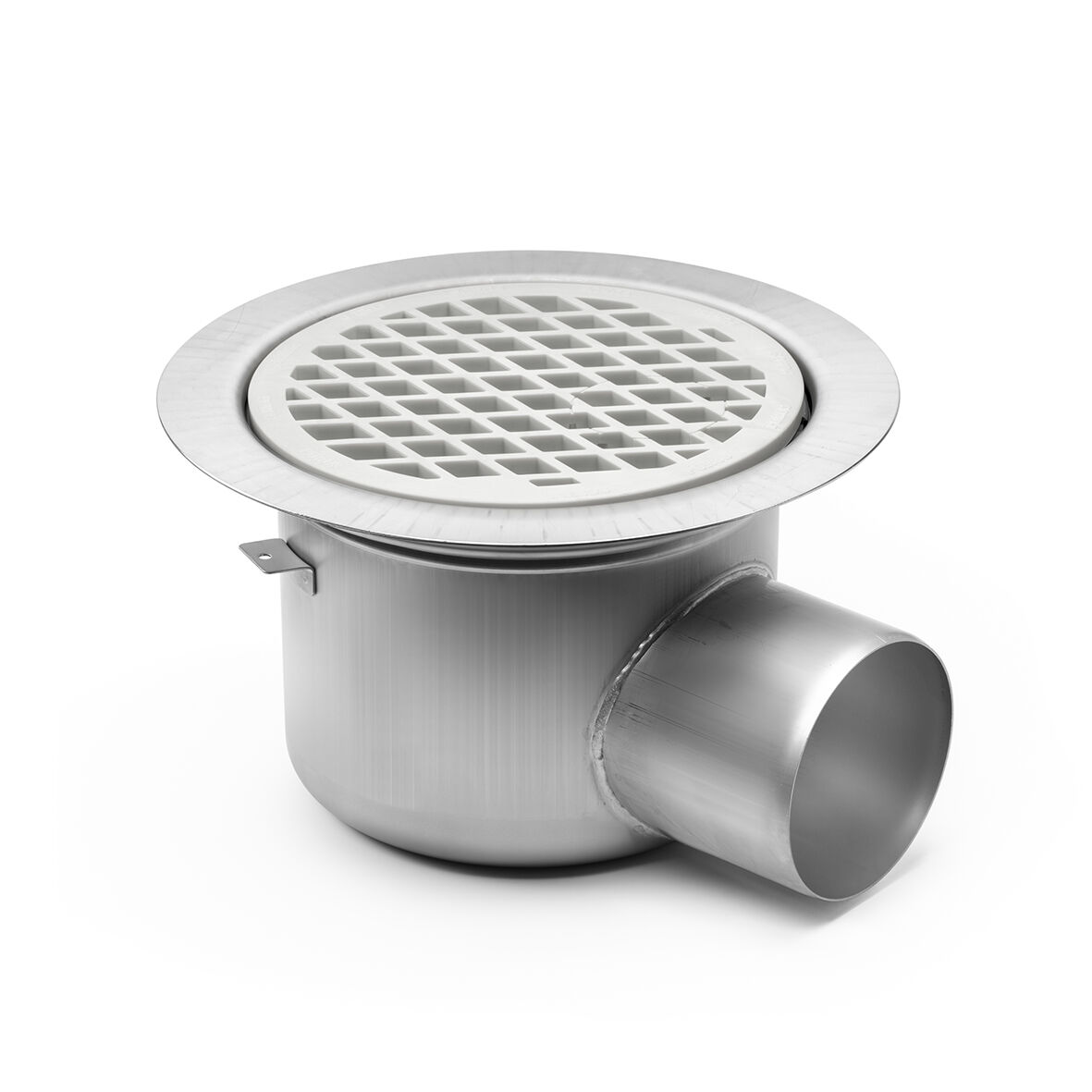

The Bigg 110 P untrapped floor drain has a 110 mm side outlet and is for installation in concrete joists. The Bigg untrapped floor drain comes with a clamping ring and plastic grate. It also comes with a protective cover that is intended to prevent any concrete or debris from installation from entering the drain.
The automatic clamping ring is used for both sealing membrane and vinyl flooring. It is a self-adjusting clamping ring for vinyl flooring with a thickness of 1,5 mm to 2 mm.
The automatic clamping ring is used for both sealing membrane and vinyl flooring. It is a self-adjusting clamping ring for vinyl flooring with a thickness of 1,5 mm to 2 mm.
- High resistance to chemicals
- Corrosion resistant
- Recyclable
- High strength
RSK Number
7152425
Floor Construction
Concrete flooring
Function
Side outlet
Item Color
Stainless
Material
PP, Acid-resistant stainless steel 1.4404
Outlet Dimension
Ø110 mm
Pressure Flow Temp
2,9 l/s
Size
Ø220 mm
Surface
Cold rolled (2B)
Version
With plastic grating
