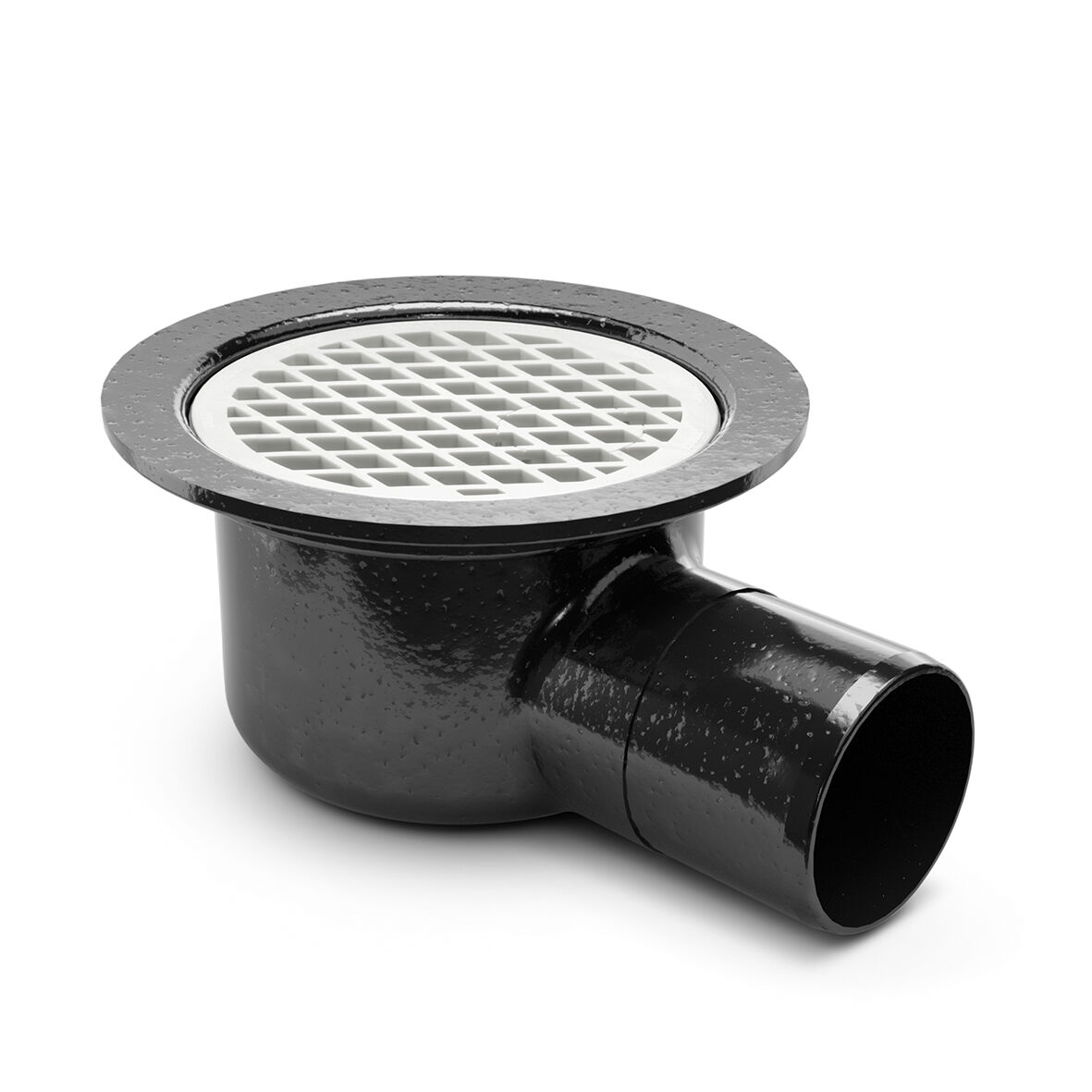

The Bigg 110 E untrapped floor drain is manufactured in epoxy-coated cast iron. It has a 110mm side outlet and can be installed in concrete floors. The Bigg 110 E floor gully comes with a clamping ring and plastic grate, and does not include a water trap. The outlet hole has a protective cover which will prevent any screed or similar from entering the drain.
The automatic clamping ring is used for both sealing membrane and vinyl flooring. It is a self-adjusting clamping ring for vinyl flooring with a thickness of 1,5 mm to 2 mm.
The automatic clamping ring is used for both sealing membrane and vinyl flooring. It is a self-adjusting clamping ring for vinyl flooring with a thickness of 1,5 mm to 2 mm.
- Sound-absorbing and fireproof
- The floor drain comes with an automatic clamping ring and grating
- The automatic clamping ring means that no o-ring or loose screws need to be used during installation
- The grating is designed to prevent any residual water from pooling
RSK Number
7152422
Floor Construction
Concrete flooring
Floor Covering
Concrete/Resin/Tiles/Vinyl
Function
Side outlet
Item Color
Black
Material
Cast iron, PP
Outlet Dimension
Ø110 mm
Pressure Flow Temp
2,2 l/s
Size
Ø220 mm
Surface
Epoxy coated
Version
With plastic grating
