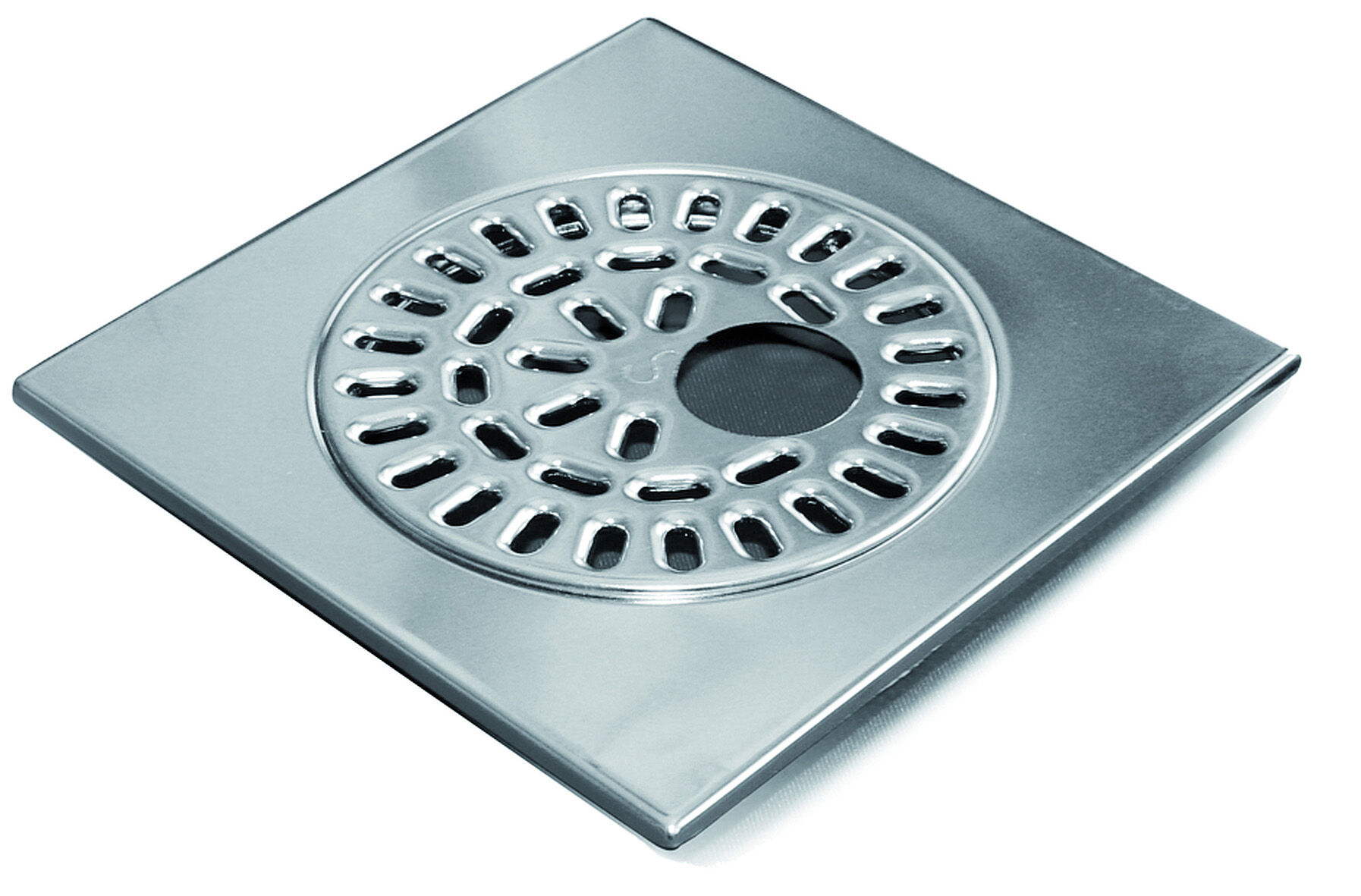

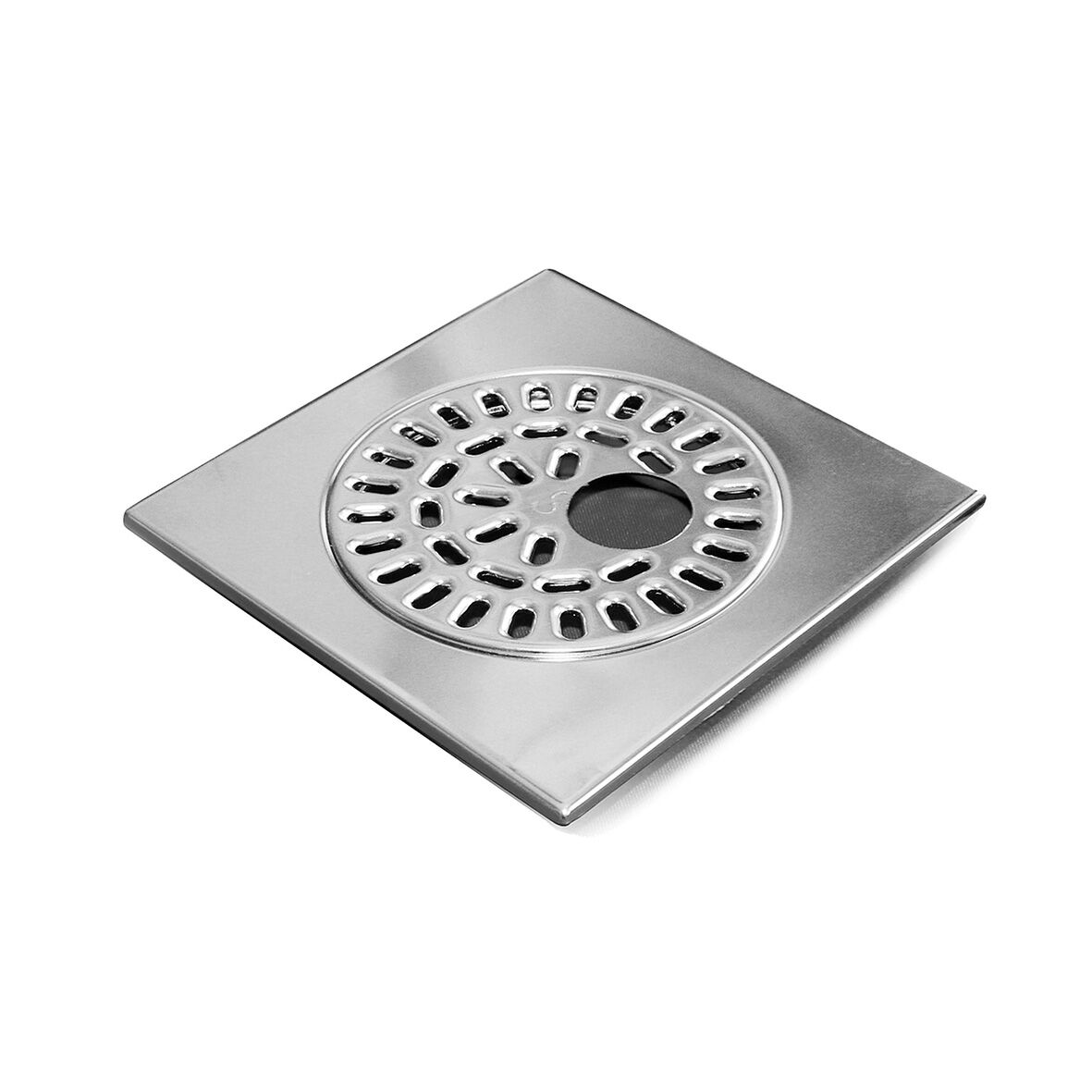

The 300x300mm stainless steel grate for tiled floors has a height of 6mm and a K3 load class (300kg), and a 50mm inlet hole. It comes with a locking device for securing to the floor. The grate consists of a square frame with a circular grate within, which can be removed for cleaning and maintenance. It is designed to fit most of Purus' floor drains with a grate diameter of 220mm.
Size
300x300x6
RSK Number
7133800
Material
Stainless steel 1.4301
Floor Covering
Tiles
Surface
Electropolished
Version
With stainless steel grating
Item Color
Stainless
Pressure Flow Temp
K3
Outlet Dimension
Ø40 mm
