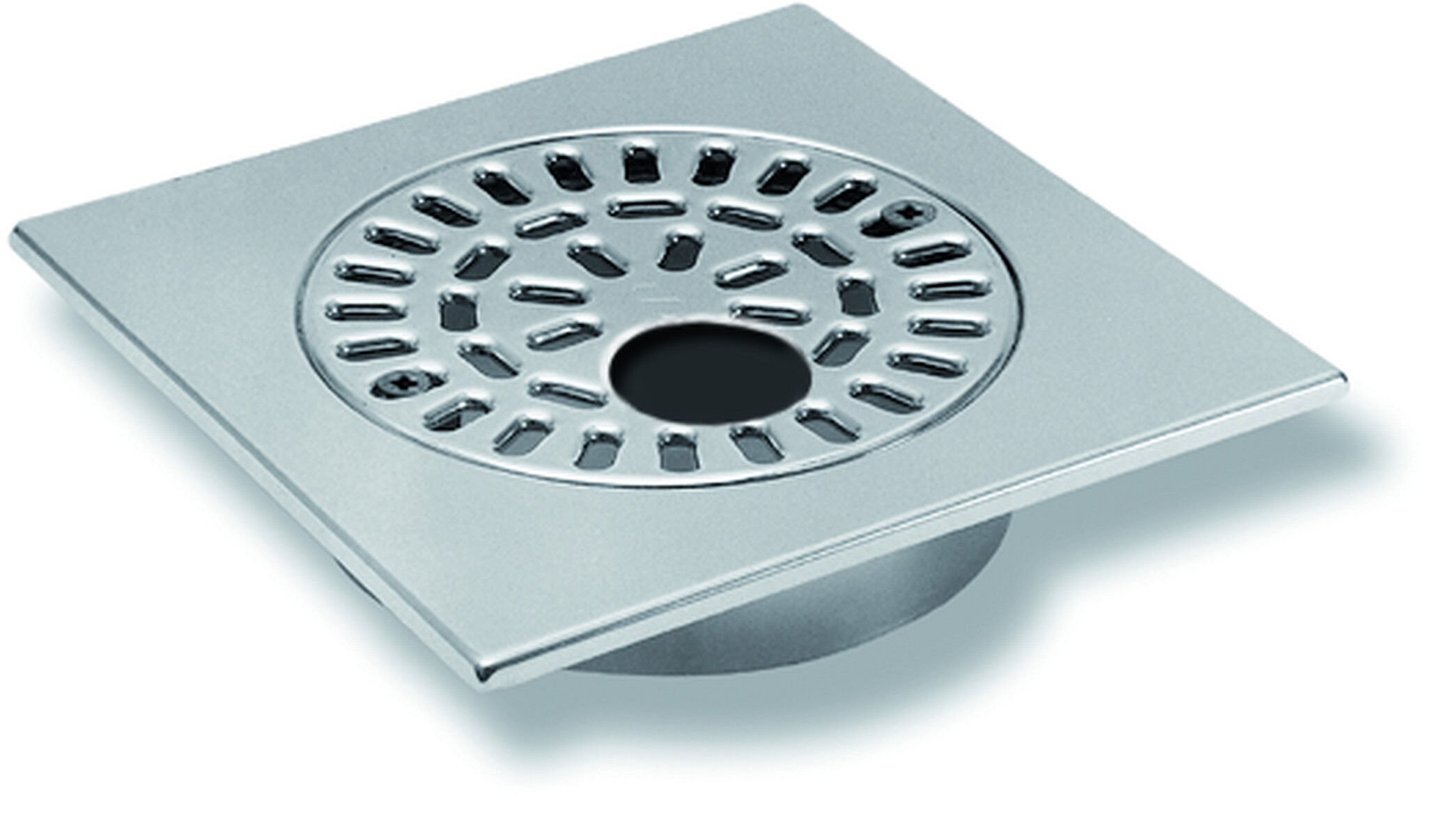

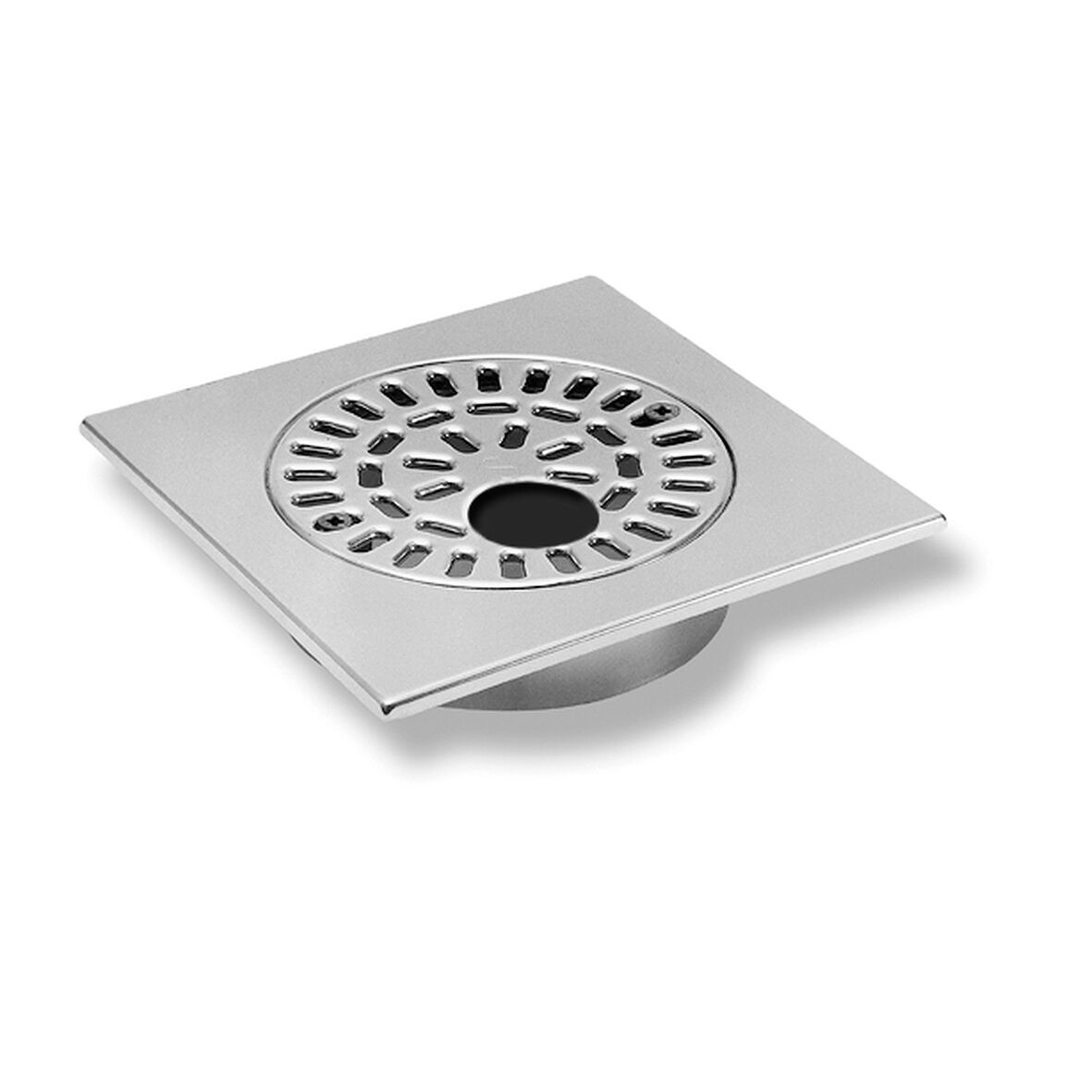

The 200x200mm stainless steel grate for tiled floors has a height of 25mm and a K3 load class (300kg), and a 40mm inlet hole. It comes with a locking device for securing to the floor. The grate consists of a square frame with a circular grate within, which can be removed for cleaning and maintenance. It is designed to fit most of Purus' floor drains with a grate diameter of 150mm.
Size
200x200x25
RSK Number
7133755
Material
Acid-resistant stainless steel 1.4404
Floor Covering
Tiles
Surface
Electropolished
Version
With stainless steel grating
Item Color
Stainless
Pressure Flow Temp
K3
Outlet Dimension
Ø40 mm
Function
With locking device
