Tile 200×200 mm

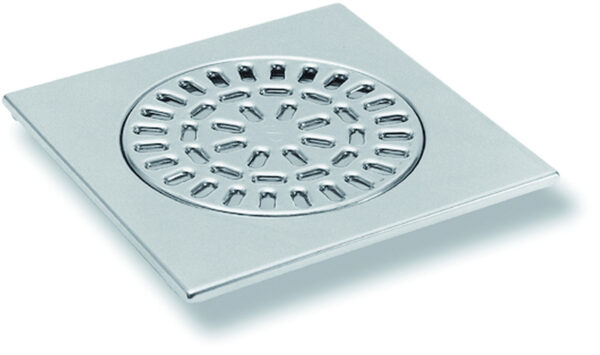

The 200x200mm stainless steel grate for tiled floors has a height of 25mm and a K3 load class (300kg). It comes with a locking device for securing to the floor. The grate consists of a square frame with a circular grate within, which can be removed for cleaning and maintenance. It is designed to fit most of Purus’ floor drains with a grate diameter of 150mm.

The 200x200mm stainless steel grate for tiled floors has a height of 25mm and a K3 load class (300kg). It comes with a locking device for securing to the floor. The grate consists of a square frame with a circular grate within, which can be removed for cleaning and maintenance. It is designed to fit most of Purus' floor drains with a grate diameter of 150mm.
  • Made of stainless steel
  • Fits most floor drains
  • With locking device as standard
  • Durable
  • High quality

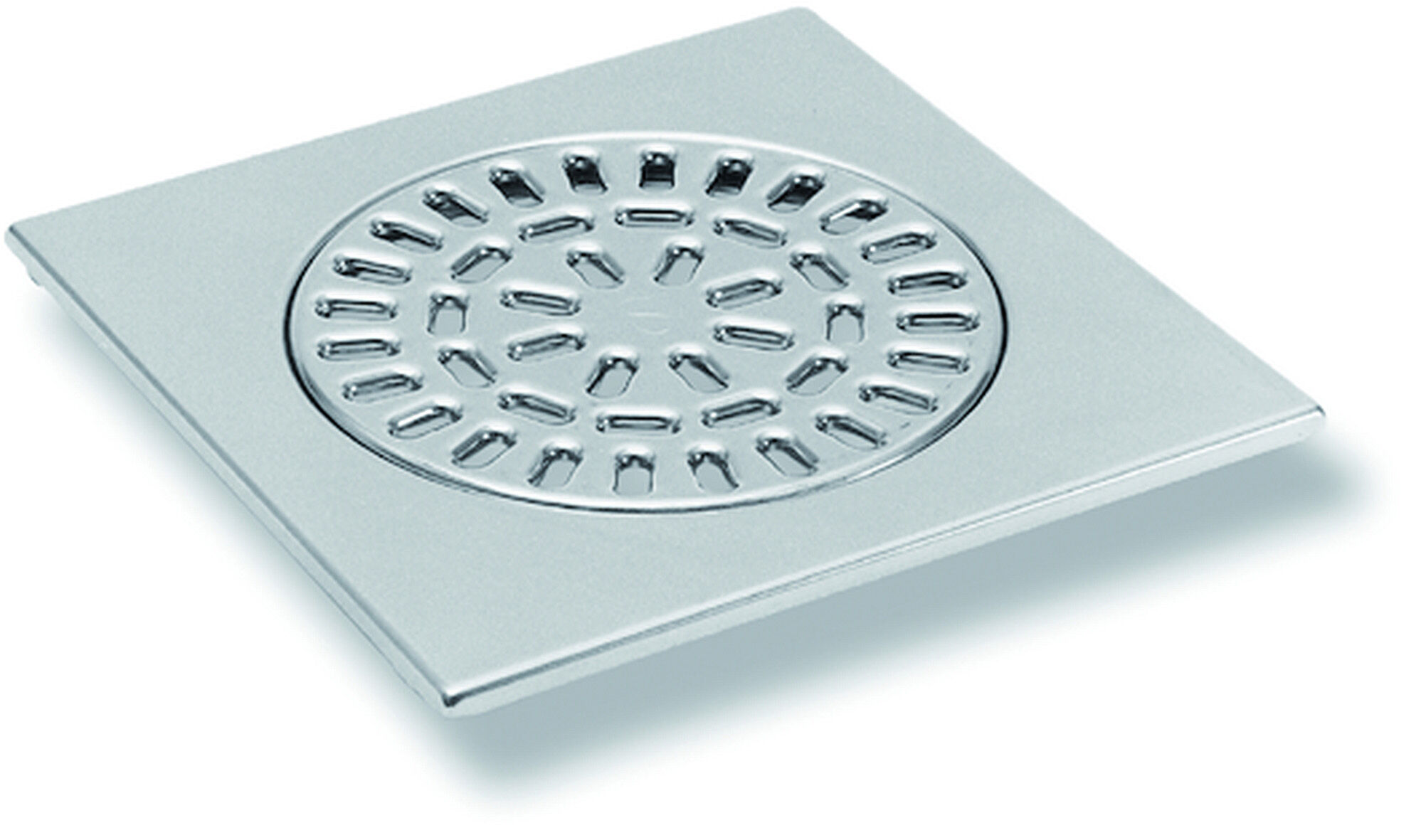

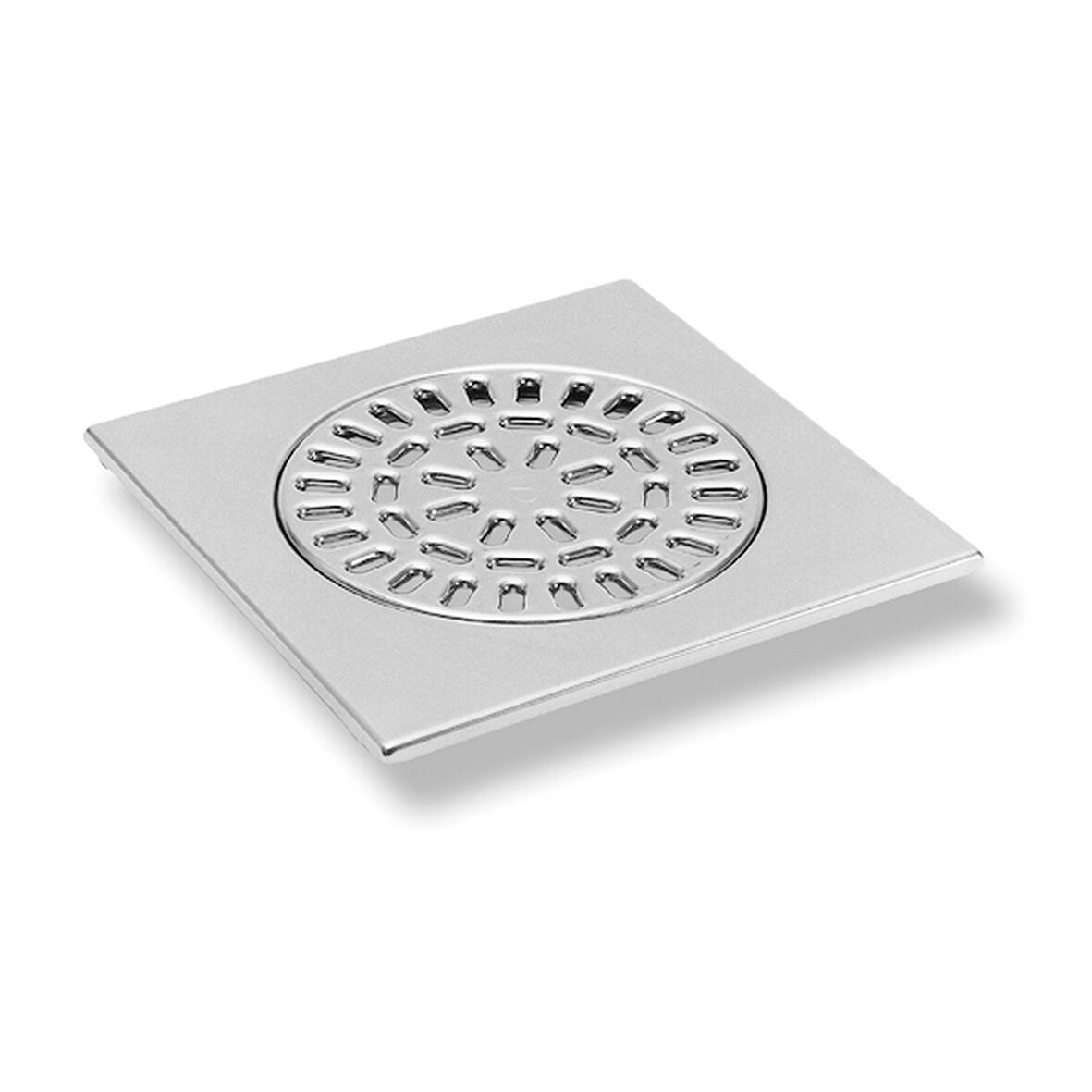

The 200x200mm stainless steel grate for tiled floors has a height of 6mm and a K3 load class (300kg). It comes with a locking device for securing to the floor. The grate consists of a square frame with a circular grate within, which can be removed for cleaning and maintenance. It is designed to fit most of Purus' floor drains with a grate diameter of 150mm.
  • Made of stainless steel
  • Fits most floor drains
  • With locking device as standard
  • Durable
  • High quality
The 200x200mm stainless steel grate for tiled floors has a height of 50mm and a K3 load class (300kg). It comes with a locking device for securing to the floor. The grate consists of a square frame with a circular grate within, which can be removed for cleaning and maintenance. It is designed to fit most of Purus' floor drains with a grate diameter of 150mm.
  • Made of stainless steel
  • Fits most floor drains
  • With locking device as standard
  • Durable
  • High quality
The 200x200mm stainless steel grate for tiled floors has a height of 100mm and a K3 load class (300kg). It comes with a locking device for securing to the floor. The grate consists of a square frame with a circular grate within, which can be removed for cleaning and maintenance. It is designed to fit most of Purus' floor drains with a grate diameter of 150mm.
  • Made of stainless steel
  • Fits most floor drains
  • With locking device as standard
  • Durable
  • High quality
The 200x200mm stainless steel grate for tiled floors has a height of 6mm and a L15 load class (1500kg). The grate consists of a square frame with a circular grate within, which can be removed for cleaning and maintenance. It is designed to fit most of Purus' floor drains with a grate diameter of 150mm and smaller.
  • Made of stainless steel
  • Fits most floor drains
  • Durable
  • High quality
The 200x200mm stainless steel grate for tiled floors has a height of 25mm and a L15 load class (1500kg). It comes with a locking device for securing to the floor. The grate consists of a square frame with a circular grate within, which can be removed for cleaning and maintenance. It is designed to fit most of Purus' floor drains with a grate diameter of 150mm.
  • Made of stainless steel
  • Fits most floor drains
  • With locking device as standard
  • Durable
  • High quality
RSK Number
7133754
Floor Covering
Tiles
Function
With locking device
Item Color
Stainless
Material
Acid-resistant stainless steel 1.4404
Pressure Flow Temp
K3
Size
200x200x25
Surface
Electropolished
Version
With stainless steel grating
RSK Number
7133756
Floor Covering
Tiles
Function
With locking device
Item Color
Stainless
Material
Acid-resistant stainless steel 1.4404
Pressure Flow Temp
K3
Size
200x200x6
Surface
Electropolished
Version
With stainless steel grating
RSK Number
7133757
Floor Covering
Tiles
Function
With locking device
Item Color
Stainless
Material
Acid-resistant stainless steel 1.4404
Pressure Flow Temp
K3
Size
200x200x50
Surface
Electropolished
Version
With stainless steel grating
RSK Number
7133758
Floor Covering
Tiles
Function
With locking device
Item Color
Stainless
Material
Acid-resistant stainless steel 1.4404
Pressure Flow Temp
K3
Size
200x200x100
Surface
Electropolished
Version
With stainless steel grating
Item Number
7133756F
Floor Covering
Tiles
Function
With locking device
Item Color
Stainless
Material
Acid-resistant stainless steel 1.4404
Pressure Flow Temp
L15
Size
200x200x6
Surface
Electropolished
Version
With stainless steel grating
RSK Number
7133760
Floor Covering
Tiles
Function
With locking device
Item Color
Stainless
Material
Acid-resistant stainless steel 1.4404
Pressure Flow Temp
L15
Size
200x200x25
Surface
Electropolished
Version
With stainless steel grating
