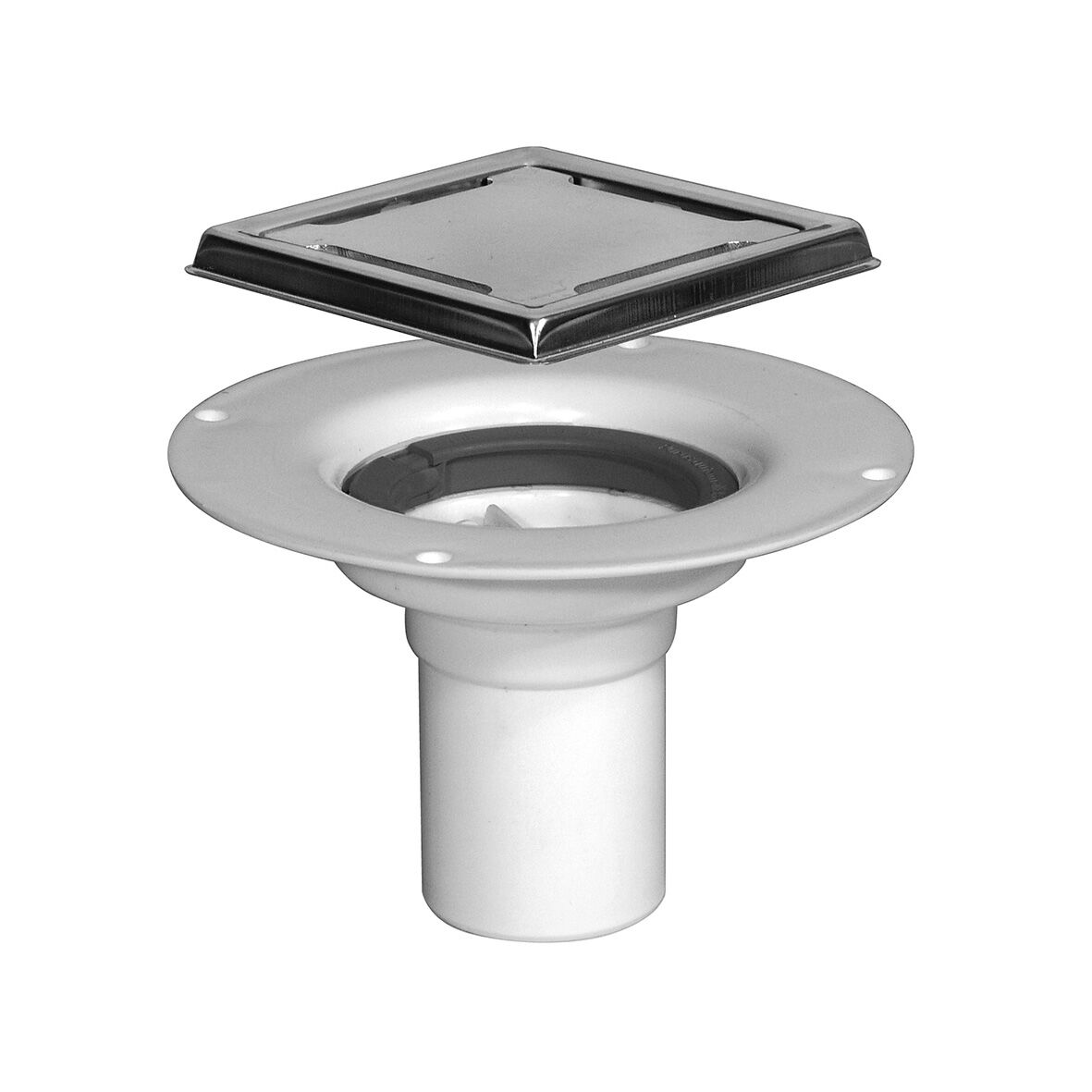

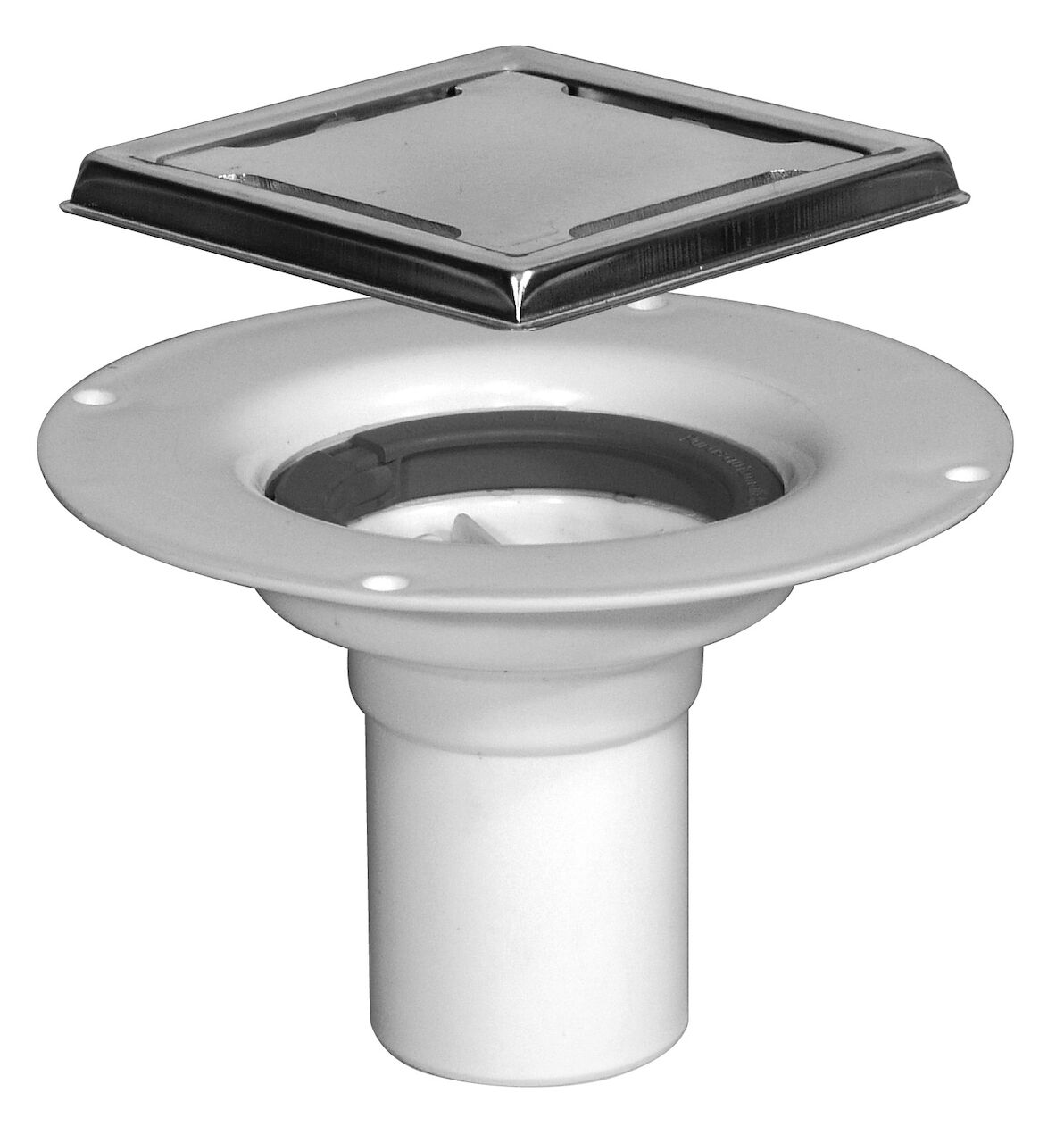

Safe for tiled floors with Ø50 bottom

Safe Overflow for tiled floors with gluing flange has a 50mm vertical outlet and is adapted for unintentional overflow of water. The Safe Overflow for tiles with gluing flange comes with a removable automatic odour stop and clamping ring. The automatic odour stop prevents any bad odours from escaping through the drainage system, even if it is dried out. The overflow must not be used as an ordinary floor drain, but can be placed underneath a sink, a kitchen ice maker or similar.

Safe Overflow for tiled floors with gluing flange has a 50mm vertical outlet and is adapted for unintentional overflow of water. The Safe Overflow for tiles with gluing flange comes with a removable automatic odour stop and clamping ring. The automatic odour stop prevents any bad odours from escaping through the drainage system, even if it is dried out. The overflow must not be used as an ordinary floor drain, but can be placed underneath a sink, a kitchen ice maker or similar.
  • Adapted for accidental water leakages
  • Automatic odour barrier that prevents bad smells
  • Can be placed under a sink, ice maker in the kitchen or similar
Safe Overflow for tiled floors has a 50mm vertical outlet and is adapted for unintentional overflow of water. The Safe Overflow for tiles comes with a removable automatic odour stop and clamping ring. The automatic odour stop prevents any bad odours from escaping through the drainage system, even if it is dried out. The overflow must not be used as an ordinary floor drain, but can be placed underneath a sink, a kitchen ice maker or similar.

The automatic clamping ring is used for both sealing membrane and vinyl flooring. It is a self-adjusting clamping ring for vinyl flooring with a thickness of 1,5 mm to 2 mm.
  • Adapted for accidental water leakages
  • Automatic odour barrier that prevents bad smells
  • Can be placed under a sink, ice maker in the kitchen or similar
RSK Number
7138440
Floor Construction
Concrete flooring
Floor Covering
Tile floor with glueing flange
Function
Bottom outlet
Item Color
White
Material
PP, Stainless steel 1.4301
Outlet Dimension
Ø50 mm
Pressure Flow Temp
0,4 l/s
Size
100x100 mm
Version
With tile frame
RSK Number
7138445
Floor Construction
Tile flooring with clamping frame
Floor Covering
Tiles
Function
Bottom outlet
Item Color
White
Material
PP, Stainless steel 1.4301
Outlet Dimension
Ø50 mm
Pressure Flow Temp
0,4 l/s
Size
100x100 mm
Version
With tile frame
