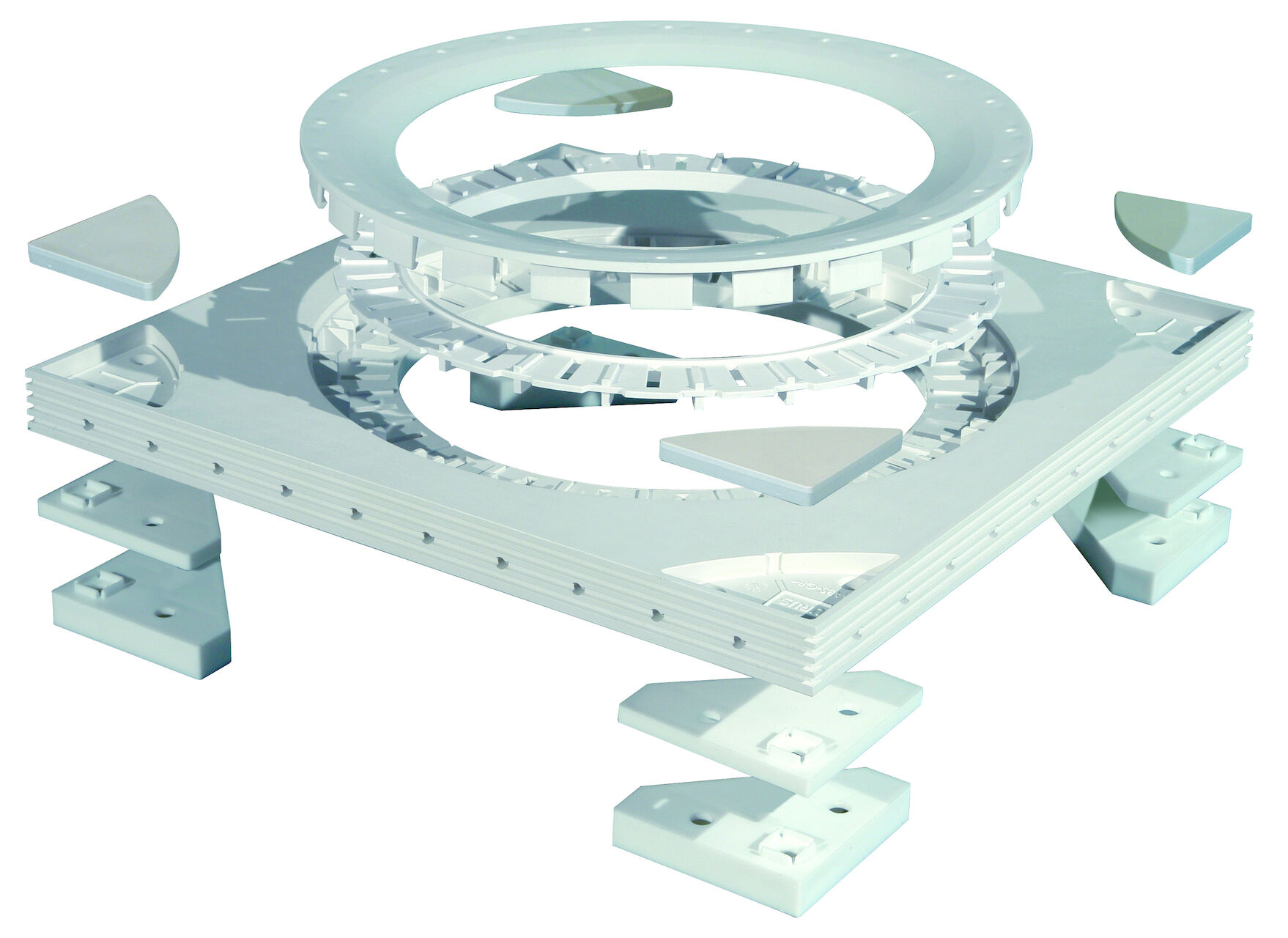

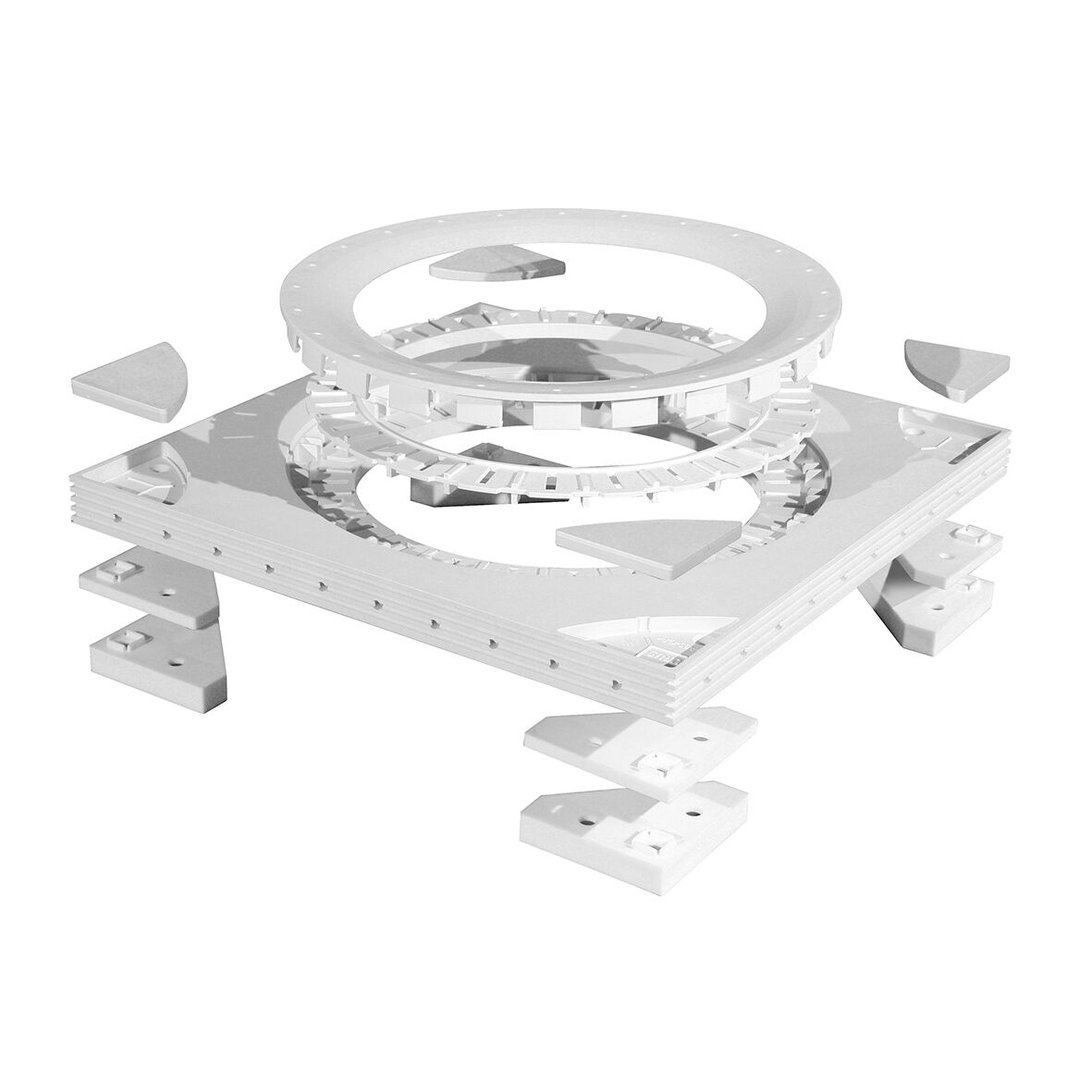

The Purus Plate 300 Multi is for installation of Purus' 130mm and 150mm diameter floor gullies into wooden joist floors. The Purus Plate is 22mm thick at the outer edge and has built-in falls to the drain. 6mm and 13mm spacer blocks can be purchased separately to increase the height. The Purus Plate 300 Multi is manufactured in ABS plastic, which can be glued.
Purus Plate 300 Mult fits Mini Brage, Mini Oden, Brage, Oden, Freja, Ymer, Våge, Flex, Duschbrunn, Loke, S-serie Brage and S-serie Oden in plastic. Rens 110, Balder and Sigyn in stainless steel.
Purus Plate 300 Mult fits Mini Brage, Mini Oden, Brage, Oden, Freja, Ymer, Våge, Flex, Duschbrunn, Loke, S-serie Brage and S-serie Oden in plastic. Rens 110, Balder and Sigyn in stainless steel.
- Includes holes for anchoring mesh to levelling compound
- Reversible spacer ring
- Unique locking ring to hold the drain in place
- Ribbed edges for levelling compound
RSK Number
7133690
Floor Construction
Wooden joist
Function
For Ø130/Ø150 mm drains
Item Color
White
Material
ABS
Outlet Dimension
Ø130/Ø150 mm
Size
300x300 mm
Version
For wooden joists
