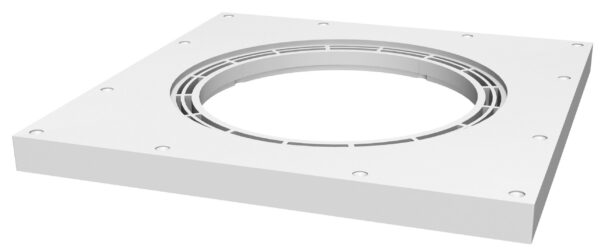

The Purus Plate 2014 is for installation of Purus' floor gullies into wooden joist floors.. The Purus Plate has two sides: one smooth and one ribbed. The smooth side has built-in falls and is used without a spacer for vinyl flooring. The ribbed side is used for tiled floors with a spacer. The Purus Plate 2014 is manufactured in ABS plastic, which can be glued.
This Purus Plate fits Brage, Oden, Freja, Flex and Duschbrunn in plastic. Without the spacer ring, it fits Våke, Våge and Loke.
This Purus Plate fits Brage, Oden, Freja, Flex and Duschbrunn in plastic. Without the spacer ring, it fits Våke, Våge and Loke.
- Pigment-free white finish prevents discolouration when installed in vinyl floors
- Built-in falls
- Flexible. Smooth on one side and grooved on the other depending on whether it is installation for vinyl or tiled floors. The groove makes installation more straightforward
- Square, instead of round, which makes sawing easier
RSK Number
7133696
Floor Construction
Wooden joist
Function
For Ø150 mm floor drains
Item Color
White
Material
ABS
Outlet Dimension
150
Pressure Flow Temp
K3
Size
300x300 mm
Version
Reversible
