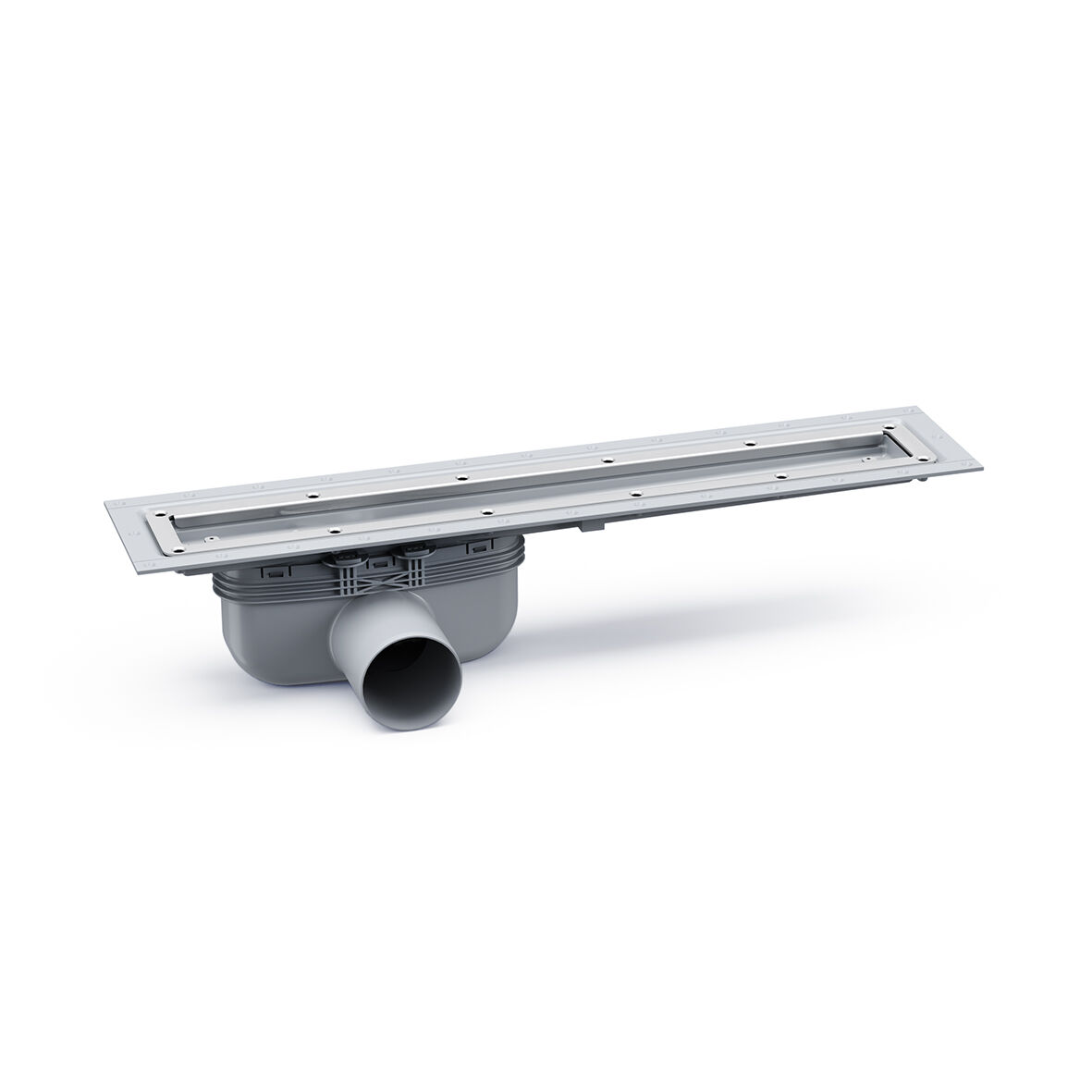

The Purus Line Vinyl Plus 600 is a designed floor drain for vinyl flooring with a 75 mm side outlet for installation in wooden or concrete joists. The floor drain comes with a removable NOOD water trap, stainless steel clamping frame and a concrete installation kit. The NOOD water trap prevents any foul air from escaping through the drain even if there is no water present. Mounting rails for wooden joist are available to purchase separately. The Purus Line Vinyl Plus must be installed at least 200 mm from the wall.
- Outlet gully without joints including clamping frame
- Delivered complete for installation in concrete joists
- NOOD water trap as standard
The Purus Line Vinyl Plus 700 is a designed floor drain for vinyl flooring with a 75 mm side outlet for installation in wooden or concrete joists. The floor drain comes with a removable NOOD water trap, stainless steel clamping frame and a concrete installation kit. The NOOD water trap prevents any foul air from escaping through the drain even if there is no water present. Mounting rails for wooden joist are available to purchase separately. The Purus Line Vinyl Plus must be installed at least 200 mm from the wall.
- Outlet gully without joints including clamping frame
- Delivered complete for installation in concrete joists
- NOOD water trap as standard
The Purus Line Vinyl Plus 800 is a designed floor drain for vinyl flooring with a 75 mm side outlet for installation in wooden or concrete joists. The floor drain comes with a removable NOOD water trap, stainless steel clamping frame and a concrete installation kit. The NOOD water trap prevents any foul air from escaping through the drain even if there is no water present. Mounting rails for wooden joist are available to purchase separately. The Purus Line Vinyl Plus must be installed at least 200 mm from the wall.
- Outlet gully without joints including clamping frame
- Delivered complete for installation in concrete joists
- NOOD water trap as standard
The Purus Line Vinyl Plus 900 is a designed floor drain for vinyl flooring with a 75 mm side outlet for installation in wooden or concrete joists. The floor drain comes with a removable NOOD water trap, stainless steel clamping frame and a concrete installation kit. The NOOD water trap prevents any foul air from escaping through the drain even if there is no water present. Mounting rails for wooden joist are available to purchase separately. The Purus Line Vinyl Plus must be installed at least 200 mm from the wall.
- Outlet gully without joints including clamping frame
- Delivered complete for installation in concrete joists
- NOOD water trap as standard
The Purus Line Vinyl Plus 1000 is a designed floor drain for vinyl flooring with a 75 mm side outlet for installation in wooden or concrete joists. The floor drain comes with a removable NOOD water trap, stainless steel clamping frame and a concrete installation kit. The NOOD water trap prevents any foul air from escaping through the drain even if there is no water present. Mounting rails for wooden joist are available to purchase separately. The Purus Line Vinyl Plus must be installed at least 200 mm from the wall.
- Outlet gully without joints including clamping frame
- Delivered complete for installation in concrete joists
- NOOD water trap as standard
RSK Number
7115496
Floor Construction
Concrete/Wood
Floor Covering
Vinyl
Function
Side outlet
Item Color
Grey
Material
ABS, PP, Stainless steel 1.4301
Outlet Dimension
Ø75 mm
Pressure Flow Temp
0,8 l/s
Size
600
Version
With frame and no grating
RSK Number
7115497
Floor Construction
Concrete/Wood
Floor Covering
Vinyl
Function
Side outlet
Item Color
Grey
Material
ABS, PP, Stainless steel 1.4301
Outlet Dimension
Ø75 mm
Pressure Flow Temp
0,8 l/s
Size
700
Version
With frame and no grating
RSK Number
7115498
Floor Construction
Concrete/Wood
Floor Covering
Vinyl
Function
Side outlet
Item Color
Grey
Material
ABS, PP, Stainless steel 1.4301
Outlet Dimension
Ø75 mm
Pressure Flow Temp
0,8 l/s
Size
800
Version
With frame and no grating
RSK Number
7115499
Floor Construction
Concrete/Wood
Floor Covering
Vinyl
Function
Side outlet
Item Color
Grey
Material
ABS, PP, Stainless steel 1.4301
Outlet Dimension
Ø75 mm
Pressure Flow Temp
0,8 l/s
Size
900
Version
With frame and no grating
RSK Number
7115500
Floor Construction
Concrete/Wood
Floor Covering
Vinyl
Function
Side outlet
Item Color
Grey
Material
ABS, PP, Stainless steel 1.4301
Outlet Dimension
Ø75 mm
Pressure Flow Temp
0,8 l/s
Size
1000
Version
With frame and no grating
