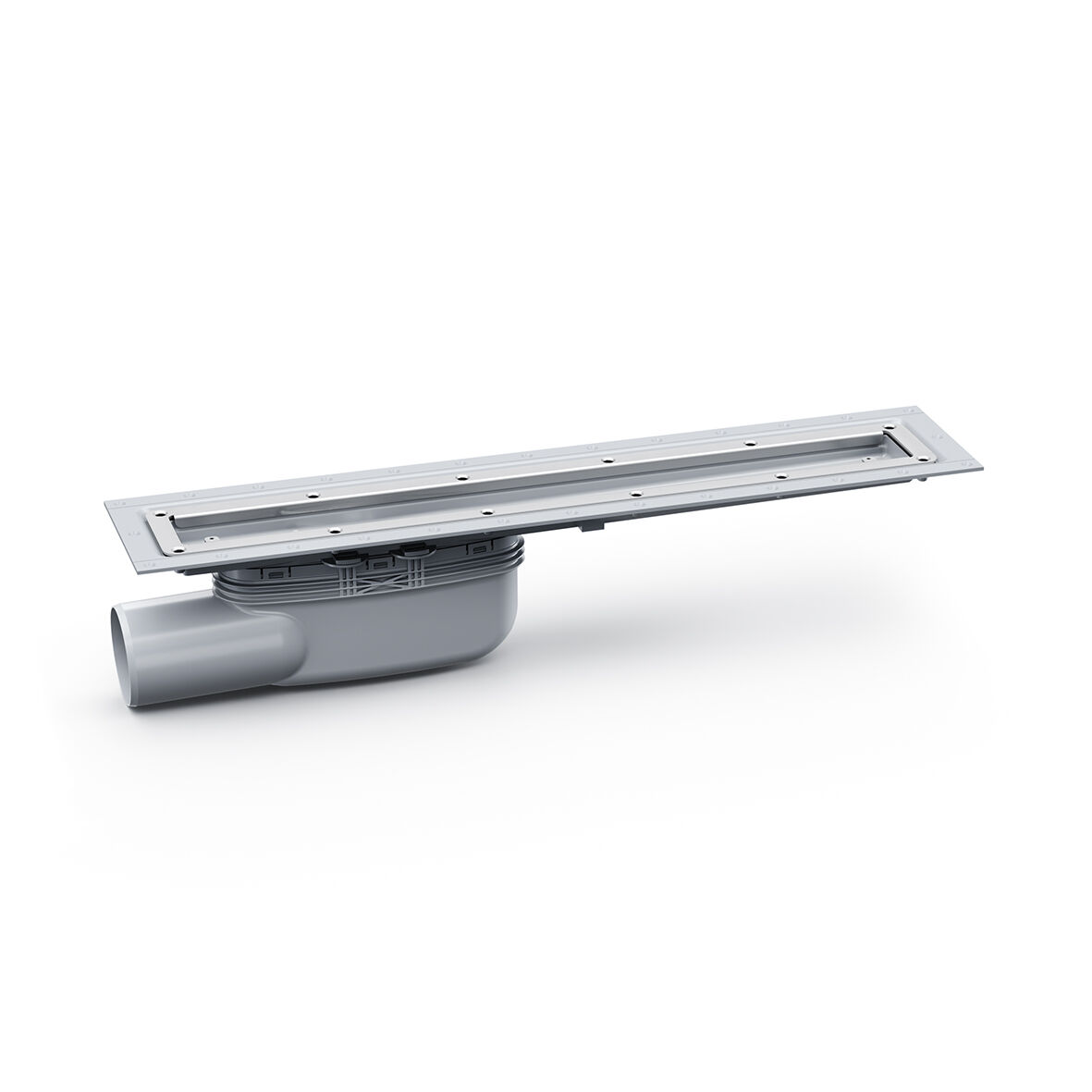

The Purus Line Vinyl Plus 600 is a designed floor drain for vinyl flooring with a 75 mm end outlet for installation in wooden or concrete joists. The floor drain comes with a removable NOOD water trap, stainless steel clamping frame and a concrete installation kit. The NOOD water trap prevents any foul air from escaping through the drain even if there is no water present. Mounting rails for wooden joist are available to purchase separately. The Purus Line Vinyl Plus must be installed at least 200 mm from the wall.
The Purus Line Vinyl Plus 700 is a designed floor drain for vinyl flooring with a 75 mm end outlet for installation in wooden or concrete joists. The floor drain comes with a removable NOOD water trap, stainless steel clamping frame and a concrete installation kit. The NOOD water trap prevents any foul air from escaping through the drain even if there is no water present. Mounting rails for wooden joist are available to purchase separately. The Purus Line Vinyl Plus must be installed at least 200 mm from the wall.
The Purus Line Vinyl Plus 800 is a designed floor drain for vinyl flooring with a 75 mm end outlet for installation in wooden or concrete joists. The floor drain comes with a removable NOOD water trap, stainless steel clamping frame and a concrete installation kit. The NOOD water trap prevents any foul air from escaping through the drain even if there is no water present. Mounting rails for wooden joist are available to purchase separately. The Purus Line Vinyl Plus must be installed at least 200 mm from the wall.
The Purus Line Vinyl Plus 900 is a designed floor drain for vinyl flooring with a 75 mm end outlet for installation in wooden or concrete joists. The floor drain comes with a removable NOOD water trap, stainless steel clamping frame and a concrete installation kit. The NOOD water trap prevents any foul air from escaping through the drain even if there is no water present. Mounting rails for wooden joist are available to purchase separately. The Purus Line Vinyl Plus must be installed at least 200 mm from the wall.
The Purus Line Vinyl Plus 1000 is a designed floor drain for vinyl flooring with a 75 mm end outlet for installation in wooden or concrete joists. The floor drain comes with a removable NOOD water trap, stainless steel clamping frame and a concrete installation kit. The NOOD water trap prevents any foul air from escaping through the drain even if there is no water present. Mounting rails for wooden joist are available to purchase separately. The Purus Line Vinyl Plus must be installed at least 200 mm from the wall.
Size
600
RSK Number
7115506
Floor Construction
Concrete/Wood
Material
ABS, PP, Stainless steel 1.4301
Floor Covering
Vinyl
Version
With frame and no grating
Item Color
Grey
Pressure Flow Temp
0,8 l/s
Outlet Dimension
Ø75 mm
Function
End outlet
Size
700
RSK Number
7115507
Floor Construction
Concrete/Wood
Material
ABS, PP, Stainless steel 1.4301
Floor Covering
Vinyl
Version
With frame and no grating
Item Color
Grey
Pressure Flow Temp
0,8 l/s
Outlet Dimension
Ø75 mm
Function
End outlet
Size
800
RSK Number
7115508
Floor Construction
Concrete/Wood
Material
ABS, PP, Stainless steel 1.4301
Floor Covering
Vinyl
Version
With frame and no grating
Item Color
Grey
Pressure Flow Temp
0,8 l/s
Outlet Dimension
Ø75 mm
Function
End outlet
Size
900
RSK Number
7115509
Floor Construction
Concrete/Wood
Material
ABS, PP, Stainless steel 1.4301
Floor Covering
Vinyl
Version
With frame and no grating
Item Color
Grey
Pressure Flow Temp
0,8 l/s
Outlet Dimension
Ø75 mm
Function
End outlet
Size
1000
RSK Number
7115510
Floor Construction
Concrete/Wood
Material
ABS, PP, Stainless steel 1.4301
Floor Covering
Vinyl
Version
With frame and no grating
Item Color
Grey
Pressure Flow Temp
0,8 l/s
Outlet Dimension
Ø75 mm
Function
End outlet
