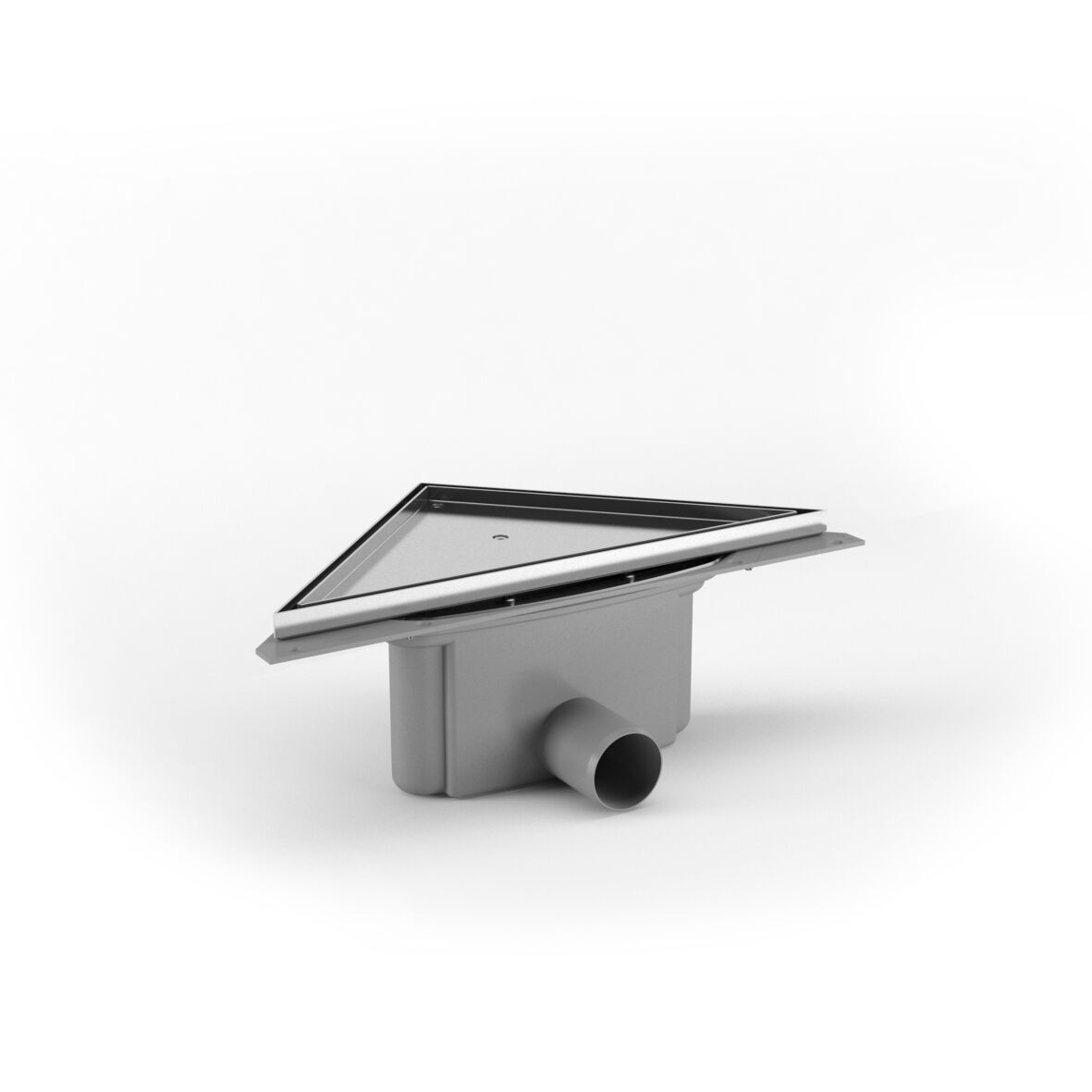

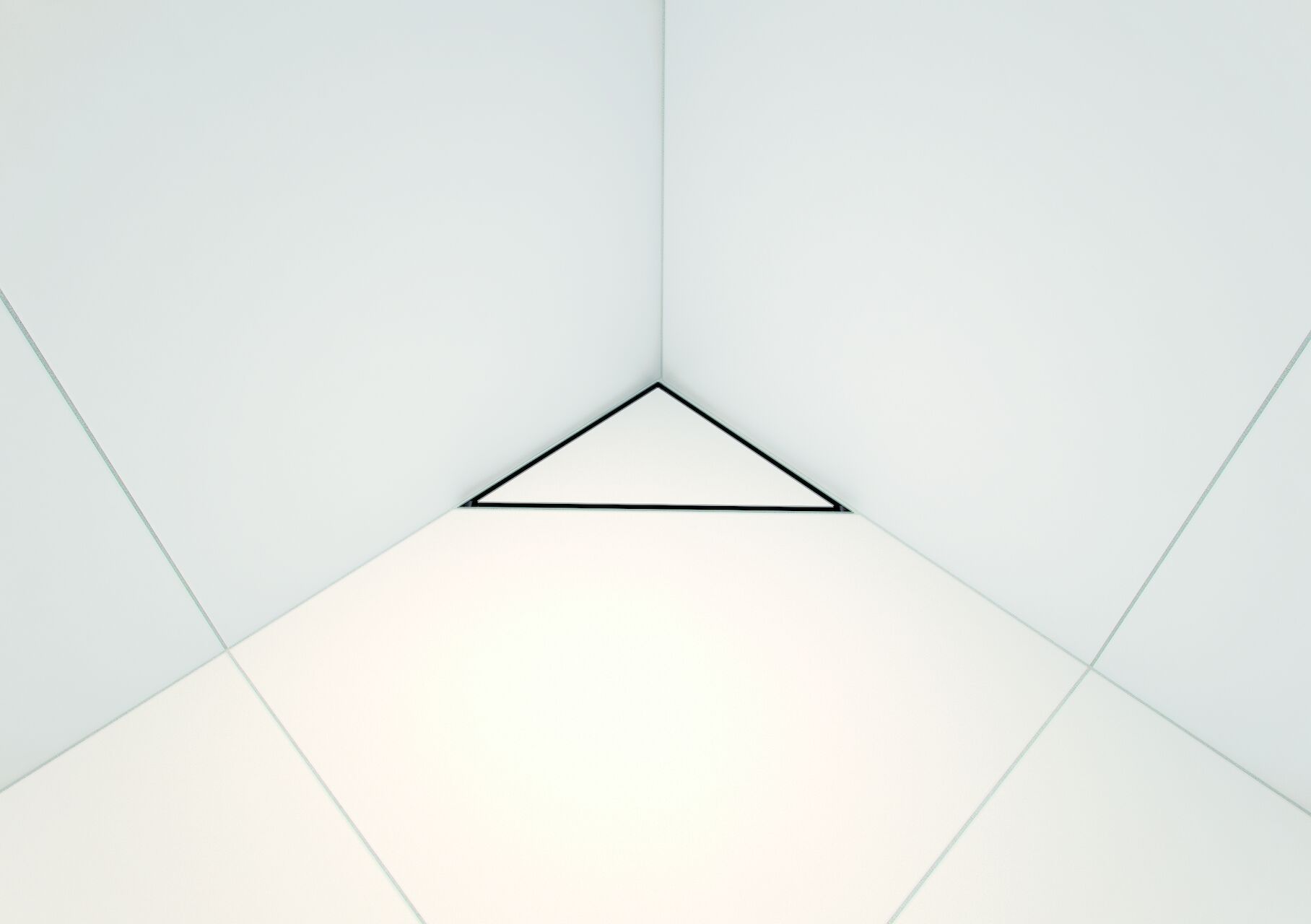

The Purus Corner Tile Insert is a complete floor drain with a side 50 mm outlet. It can be installed in wooden or concrete joists. The Purus Corner Tile Insert comes complete with a removable NOOD water trap, strainer, stainless steel clamping ring, stainless steel frame, Tile Insert grate and installation kit. The NOOD water trap is a mechanical trap which closes when there is no water present, thus preventing any foul air from escaping through the drain. This floor drain can be installed in the corner against the wall or elsewhere in the room.
- Delivered as a complete package with everything required for installation with tiles
- With Tile Insert grate
- Can be installed close to the wall
- Type approved by RISE and tested according to EN-1253
RSK Number
7114406
Floor Construction
Concrete/Wood
Floor Covering
Tiles
Function
Side outlet
Item Color
Grey
Material
PP, ABS, Stainless steel 1.4301, Wood
Outlet Dimension
Ø50 mm
Pressure Flow Temp
0,8 l/s
Size
374x266x266 mm
Version
With frame and grating
