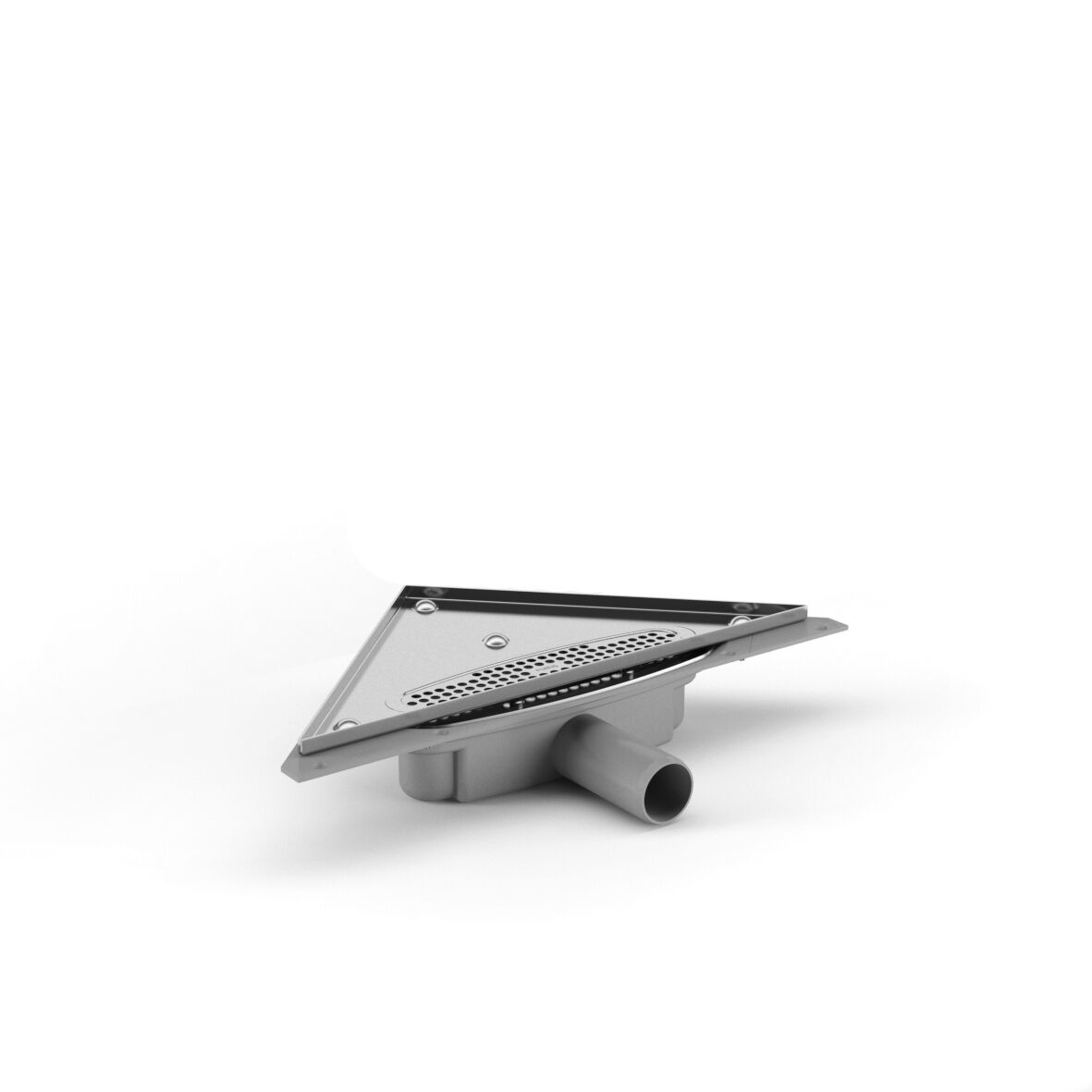

The Purus Corner is a floor drain body with a side 50 mm outlet. It can be installed in wooden or concrete joists. The Purus Corner comes with a removable NOOD water trap, strainer, stainless steel clamping ring, stainless steel frame and installation kit. It is compatible with the Purus Corner grates, which are sold separately. The NOOD water trap is a mechanical trap which closes when there is no water present, thus preventing any foul air from escaping through the drain. This floor drain can be installed in the corner against the wall or elsewhere in the room.
The Purus Corner is a super low-level floor drain body with a height of just 59mm and a horizontal 50 mm outlet. It is designed for installation in concrete joists. The Purus Corner comes with a removable NOOD water trap, strainer, stainless steel clamping ring, stainless steel frame and installation kit. It is compatible with the Purus Corner grates, which are sold separately. The NOOD water trap is a mechanical trap which closes when there is no water present, thus preventing any foul air from escaping through the drain. This floor drain can be installed in the corner against the wall or elsewhere in the room. For wooden joists with poured concrete, you should use the side or gable outlet versions instead.
Size
374x266x266
RSK Number
7114641
Floor Construction
Concrete/Wood
Material
ABS, PP, Stainless steel 1.4301
Floor Covering
Tiles
Version
With frame and no grating
Item Color
Grey
Pressure Flow Temp
0,8 l/s
Outlet Dimension
Ø50 mm
Function
Side outlet
Size
374x266x266
RSK Number
7114642
Floor Construction
Concrete flooring
Material
ABS, PP, Stainless steel 1.4301
Floor Covering
Tiles
Version
With frame and no grating
Item Color
Grey
Pressure Flow Temp
0,6 l/s
Outlet Dimension
Ø50 mm
Function
Side outlet
