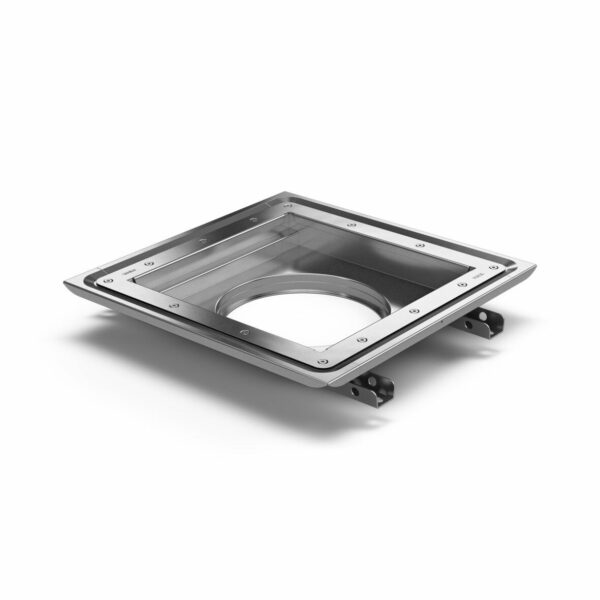

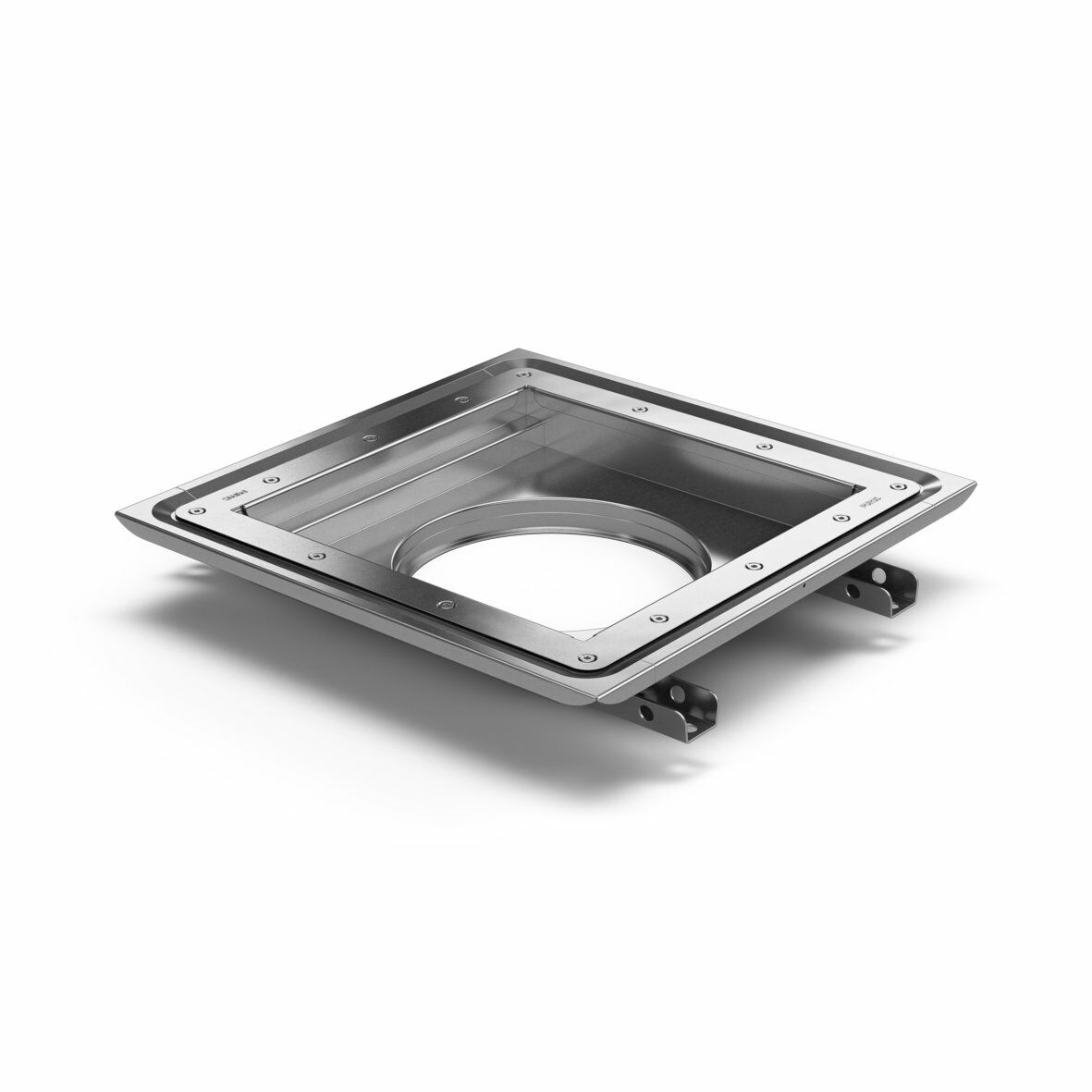

Purus channel square 200 is a floor channel made of acid-resistant stainless steel for installation in concrete flooring. The floor channel is 200x200 and is intended for vinyl flooring. The floor channel needs to be supplemented with grating/grid depending on the environment and outlet house in acid-resistant stainless steel.
- Stainless steel floor channel for general use
- Comes with a grate of L15 load class
- Available in dimensions of 300x300 mm and 200x200 mm
Purus channel square 300 is a floor channel made of acid-resistant stainless steel for installation in concrete. The floor channel is 300x300 and is intended for vinyl flooring. The floor channel needs to be supplemented with grating/grid depending on the environment and outlet house in acid-resistant stainless steel.
- Stainless steel floor channel for general use
- Comes with a grate of L15 load class
- Available in dimensions of 300x300 mm and 200x200 mm
RSK Number
7098755
Construction Height
50
Electrical Data
1,9 l
Floor Construction
Concrete flooring
Floor Covering
Vinyl
Function
Central outlet
Item Color
Stainless
Material
Acid-resistant stainless steel 1.4404
Outlet Dimension
Side/bottom in stainless steel in Ø75/Ø110 mm
Size
200x200x50 mm
Surface
Pickled
Version
Do not forget grid/outlet house
RSK Number
7098759
Construction Height
50
Electrical Data
3,9 l
Floor Construction
Concrete flooring
Floor Covering
Vinyl
Function
Central outlet
Item Color
Stainless
Material
Acid-resistant stainless steel 1.4404
Outlet Dimension
Side/bottom in stainless steel in Ø75/Ø110 mm
Size
300x300x50 mm
Surface
Pickled
Version
Do not forget grid/outlet house
