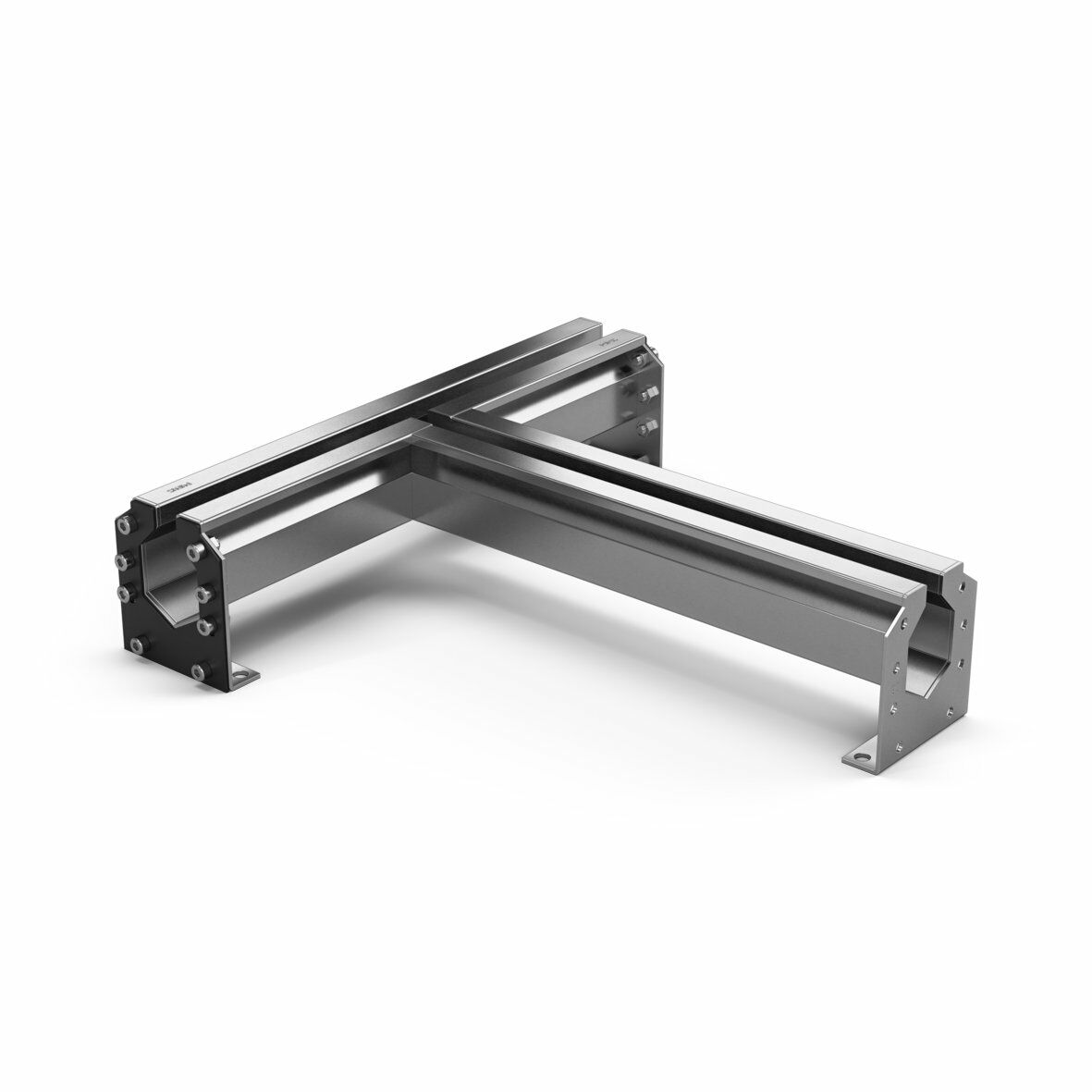

Purus channel spalte module T-kors 75 is a floor channel made of acid-resistant stainless steel for installation in concrete. The floor channel is intended for concrete, epoxy and tile floors without a waterproofing membrane. Purus channel spalte module is only 20 mm wide, has a built-in fall of which the height is 75 mm and length 500x500 mm. Purus channel spalte module is delivered with gasket and screw connection for installation but needs to be supplemented with grid depending on the environment and outlet house. The total height with screw joints is 124 mm.
Purus channel spalte module T-kors 90 is a floor channel made of acid-resistant stainless steel for installation in concrete. The floor channel is intended for concrete, epoxy and tile floors without a waterproofing membrane. Purus channel spalte module is only 20 mm wide, has a built-in fall of which the height is 90 mm and length 500x500 mm. Purus channel spalte module is delivered with gasket and screw connection for installation but needs to be supplemented with grid depending on the environment and outlet house. The total height with screw joints is 124 mm.
Purus channel spalte module T-kors 105 is a floor channel made of acid-resistant stainless steel for installation in concrete. The floor channel is intended for concrete, epoxy and tile floors without a waterproofing membrane. Purus channel spalte module is only 20 mm wide, has a built-in fall of which the height is 105 mm and length 500x500 mm. Purus channel spalte module is delivered with gasket and screw connection for installation but needs to be supplemented with grid depending on the environment and outlet house. The total height with screw joints is 124 mm.
Size
500x500
RSK Number
7098751
Floor Construction
Concrete flooring
Material
Acid-resistant stainless steel 1.4404
Floor Covering
Concrete/Resin/Tiles
Surface
Pickled
Version
20 mm gap, without grate
Item Color
Stainless
Size
500x500
RSK Number
7098752
Floor Construction
Concrete flooring
Material
Acid-resistant stainless steel 1.4404
Floor Covering
Concrete/Resin/Tiles
Surface
Pickled
Version
20 mm gap, without grate
Item Color
Stainless
Size
500x500
RSK Number
7098753
Floor Construction
Concrete flooring
Material
Acid-resistant stainless steel 1.4404
Floor Covering
Concrete/Resin/Tiles
Surface
Pickled
Version
20 mm gap, without grate
Item Color
Stainless
