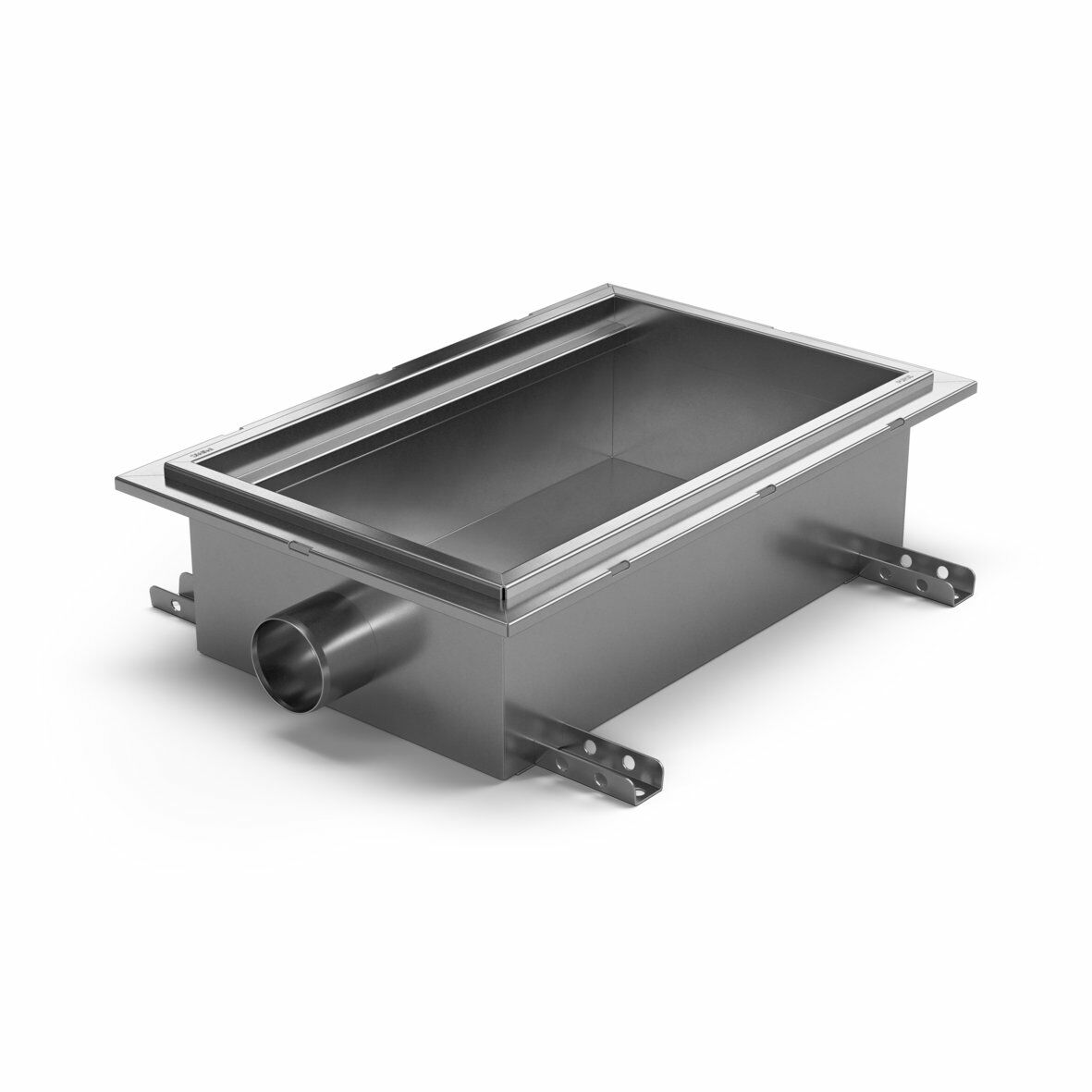

Purus channel combo is made of acid-resistant stainless steel with side outlet Ø75 mm for installation in concrete. The floor channel is 300x300x150 och är avsedd för klinkergolv som ytskick. There is always residual water in the channel about 50 mm of water forms the water trap in the bottom of the channel and is equipped with a cleaning plug. The floor channel requires an almost continuous flow to function properly. Unsuitable in environments that set hygiene requirements.
- Suitable for industrial environments
- Manufactured in acid-resistant stainless steel (EN 1.4404)
- With built-in water trap
- High quality and durable
Purus channel combo is made of acid-resistant stainless steel with side outlet Ø75 mm for installation in concrete. The floor channel is 500x300x150 och är avsedd för klinkergolv som ytskick. There is always residual water in the channel about 50 mm of water forms the water trap in the bottom of the channel and is equipped with a cleaning plug. The floor channel requires an almost continuous flow to function properly. Unsuitable in environments that set hygiene requirements.
- Suitable for industrial environments
- Manufactured in acid-resistant stainless steel (EN 1.4404)
- With built-in water trap
- High quality and durable
RSK Number
7098774
Construction Height
160
Floor Construction
Concrete flooring
Floor Covering
Tile floor with glueing flange
Flow
1,3
Function
Side outlet
Item Color
Stainless
Material
Acid-resistant stainless steel 1.4404
Outlet Dimension
Ø75 mm
Pressure Flow Temp
1,3 l/s
Size
300x300x150 mm
Surface
Pickled
Version
Do not forget grid/grating
RSK Number
7098776
Construction Height
160
Floor Construction
Concrete flooring
Floor Covering
Tile floor with glueing flange
Flow
1,3
Function
Side outlet
Item Color
Stainless
Material
Acid-resistant stainless steel 1.4404
Outlet Dimension
Ø75 mm
Pressure Flow Temp
1,3 l/s
Size
500x300x150 mm
Surface
Pickled
Version
Do not forget grid/grating
