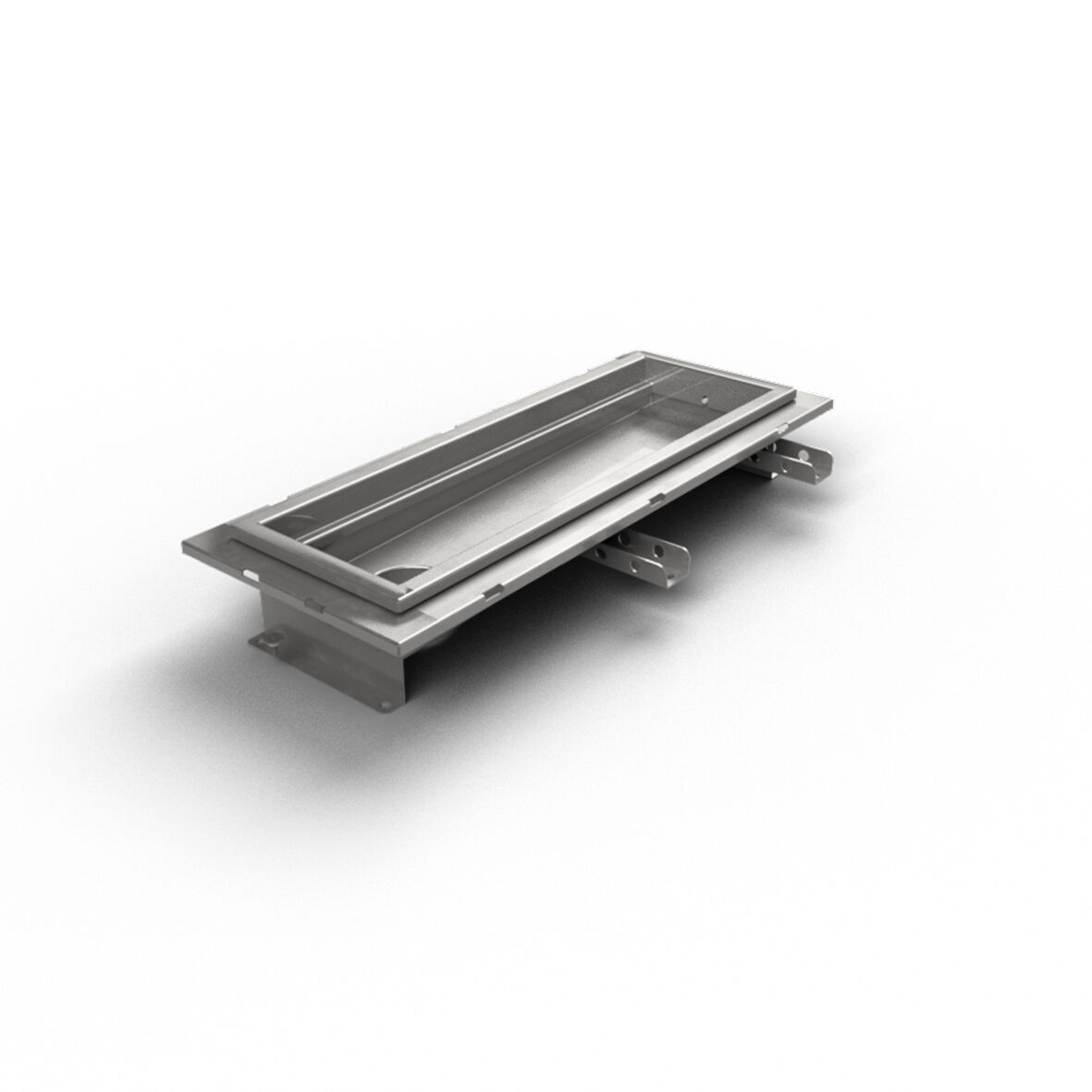

Purus channel 150 is a channel made of acid-resistant stainless steel for installation in concrete floors.The channel has a central outlet and is intended for tiled floors as a surface layer. Supplement with gully base in plastic or acid-resistant stainless steel and mesh grate for higher load classes or grating for K3 (300 kg) load.
- Narrow channel with high flow capacity
- Low installation height
- Hygienic construction
- High quality and durability
- Suitable for commercial kitchens, hospitals, spas, garages and industrial environments
Purus channel 150 is a channel made of acid-resistant stainless steel for installation in concrete floors.The channel has a central outlet and is intended for tiled floors as a surface layer. Supplement with gully base in plastic or acid-resistant stainless steel and mesh grate for higher load classes or grating for K3 (300 kg) load.
- Narrow channel with high flow capacity
- Low installation height
- Hygienic construction
- High quality and durability
- Suitable for commercial kitchens, hospitals, spas, garages and industrial environments
Purus channel 150 is a channel made of acid-resistant stainless steel for installation in concrete floors.The channel has a central outlet and is intended for tiled floors as a surface layer. Supplement with gully base in plastic or acid-resistant stainless steel and mesh grate for higher load classes or grating for K3 (300 kg) load.
- Narrow channel with high flow capacity
- Low installation height
- Hygienic construction
- High quality and durability
- Suitable for commercial kitchens, hospitals, spas, garages and industrial environments
Purus channel 150 is a channel made of acid-resistant stainless steel for installation in concrete floors.The channel has a central outlet and is intended for tiled floors as a surface layer. Supplement with gully base in plastic or acid-resistant stainless steel and mesh grate for higher load classes or grating for K3 (300 kg) load.
- Narrow channel with high flow capacity
- Low installation height
- Hygienic construction
- High quality and durability
- Suitable for commercial kitchens, hospitals, spas, garages and industrial environments
Purus channel 150 is a channel made of acid-resistant stainless steel for installation in concrete floors.The channel has a central outlet and is intended for tiled floors as a surface layer. Supplement with gully base in plastic or acid-resistant stainless steel and mesh grate for higher load classes or grating for K3 (300 kg) load.
- Narrow channel with high flow capacity
- Low installation height
- Hygienic construction
- High quality and durability
- Suitable for commercial kitchens, hospitals, spas, garages and industrial environments
Purus channel 150 is a channel made of acid-resistant stainless steel for installation in concrete floors.The channel has a central outlet and is intended for tiled floors as a surface layer. Supplement with gully base in plastic or acid-resistant stainless steel and mesh grate for higher load classes or grating for K3 (300 kg) load.
- Narrow channel with high flow capacity
- Low installation height
- Hygienic construction
- High quality and durability
- Suitable for commercial kitchens, hospitals, spas, garages and industrial environments
Purus channel 150 is a channel made of acid-resistant stainless steel for installation in concrete floors.The channel has a central outlet and is intended for tiled floors as a surface layer. Supplement with gully base in plastic or acid-resistant stainless steel and mesh grate for higher load classes or grating for K3 (300 kg) load.
- Narrow channel with high flow capacity
- Low installation height
- Hygienic construction
- High quality and durability
- Suitable for commercial kitchens, hospitals, spas, garages and industrial environments
Purus channel 150 is a channel made of acid-resistant stainless steel for installation in concrete floors.The channel has a central outlet and is intended for tiled floors as a surface layer. Supplement with gully base in plastic or acid-resistant stainless steel and mesh grate for higher load classes or grating for K3 (300 kg) load.
- Narrow channel with high flow capacity
- Low installation height
- Hygienic construction
- High quality and durability
- Suitable for commercial kitchens, hospitals, spas, garages and industrial environments
Purus channel 150 is a channel made of acid-resistant stainless steel for installation in concrete floors.The channel has a central outlet and is intended for tiled floors as a surface layer. Supplement with gully base in plastic or acid-resistant stainless steel and mesh grate for higher load classes or grating for K3 (300 kg) load.
- Narrow channel with high flow capacity
- Low installation height
- Hygienic construction
- High quality and durability
- Suitable for commercial kitchens, hospitals, spas, garages and industrial environments
Purus channel 150 is a channel made of acid-resistant stainless steel for installation in concrete floors.The channel has a central outlet and is intended for tiled floors as a surface layer. Supplement with gully base in plastic or acid-resistant stainless steel and mesh grate for higher load classes or grating for K3 (300 kg) load.
- Narrow channel with high flow capacity
- Low installation height
- Hygienic construction
- High quality and durability
- Suitable for commercial kitchens, hospitals, spas, garages and industrial environments
Purus channel 150 is a channel made of acid-resistant stainless steel for installation in concrete floors.The channel has a central outlet and is intended for tiled floors as a surface layer. Supplement with gully base in plastic or acid-resistant stainless steel and mesh grate for higher load classes or grating for K3 (300 kg) load.
- Narrow channel with high flow capacity
- Low installation height
- Hygienic construction
- High quality and durability
- Suitable for commercial kitchens, hospitals, spas, garages and industrial environments
Purus channel 150 is a channel made of acid-resistant stainless steel for installation in concrete floors.The channel has a central outlet and is intended for tiled floors as a surface layer. Supplement with gully base in plastic or acid-resistant stainless steel and mesh grate for higher load classes or grating for K3 (300 kg) load.
- Narrow channel with high flow capacity
- Low installation height
- Hygienic construction
- High quality and durability
- Suitable for commercial kitchens, hospitals, spas, garages and industrial environments
RSK Number
7097021
Construction Height
68
Floor Construction
Concrete flooring
Floor Covering
Tile floor with glueing flange
Function
End outlet
Item Color
Stainless
Material
Acid-resistant stainless steel 1.4404
Outlet Dimension
Bottom/side in plastic or stainless steel in Ø50, Ø75 or Ø 110 mm
Size
800x150 mm
Surface
Pickled
Version
Do not forget grid/outlet house
RSK Number
7097022
Construction Height
68
Floor Construction
Concrete flooring
Floor Covering
Tile floor with glueing flange
Function
End outlet
Item Color
Stainless
Material
Acid-resistant stainless steel 1.4404
Outlet Dimension
Bottom/side in plastic or stainless steel in Ø50, Ø75 or Ø 110 mm
Size
1000x150 mm
Surface
Pickled
Version
Do not forget grid/outlet house
RSK Number
7097023
Construction Height
73
Floor Construction
Concrete flooring
Floor Covering
Tile floor with glueing flange
Function
End outlet
Item Color
Stainless
Material
Acid-resistant stainless steel 1.4404
Outlet Dimension
Bottom/side in plastic or stainless steel in Ø50, Ø75 or Ø 110 mm
Size
1200x150 mm
Surface
Pickled
Version
Do not forget grid/outlet house
RSK Number
7103047
Construction Height
56
Floor Construction
Concrete flooring
Floor Covering
Tile floor with glueing flange
Function
End outlet
Item Color
Stainless
Material
Acid-resistant stainless steel 1.4404
Outlet Dimension
Bottom/side in plastic or stainless steel in Ø50, Ø75 or Ø 110 mm
Size
500x150 mm
Surface
Pickled
Version
Do not forget grid/outlet house
RSK Number
7103051
Construction Height
61
Floor Construction
Concrete flooring
Floor Covering
Tile floor with glueing flange
Function
End outlet
Item Color
Stainless
Material
Acid-resistant stainless steel 1.4404
Outlet Dimension
Bottom/side in plastic or stainless steel in Ø50, Ø75 or Ø 110 mm
Size
1300x150 mm
Surface
Pickled
Version
Do not forget grid/outlet house
RSK Number
7103048
Construction Height
56
Floor Construction
Concrete flooring
Floor Covering
Tile floor with glueing flange
Function
End outlet
Item Color
Stainless
Material
Acid-resistant stainless steel 1.4404
Outlet Dimension
Bottom/side in plastic or stainless steel in Ø50, Ø75 or Ø 110 mm
Size
600x150 mm
Surface
Pickled
Version
Do not forget grid/outlet house
RSK Number
7103049
Construction Height
56
Floor Construction
Concrete flooring
Floor Covering
Tile floor with glueing flange
Function
End outlet
Item Color
Stainless
Material
Acid-resistant stainless steel 1.4404
Outlet Dimension
Bottom/side in plastic or stainless steel in Ø50, Ø75 or Ø 110 mm
Size
900x150 mm
Surface
Pickled
Version
Do not forget grid/outlet house
RSK Number
7103050
Construction Height
61
Floor Construction
Concrete flooring
Floor Covering
Tile floor with glueing flange
Function
End outlet
Item Color
Stainless
Material
Acid-resistant stainless steel 1.4404
Outlet Dimension
Bottom/side in plastic or stainless steel in Ø50, Ø75 or Ø 110 mm
Size
1100x150 mm
Surface
Pickled
Version
Do not forget grid/outlet house
RSK Number
7103052
Construction Height
61
Floor Construction
Concrete flooring
Floor Covering
Tile floor with glueing flange
Function
End outlet
Item Color
Stainless
Material
Acid-resistant stainless steel 1.4404
Outlet Dimension
Bottom/side in plastic or stainless steel in Ø50, Ø75 or Ø 110 mm
Size
1400x150 mm
Surface
Pickled
Version
Do not forget grid/outlet house
RSK Number
7103053
Construction Height
61
Floor Construction
Concrete flooring
Floor Covering
Tile floor with glueing flange
Function
End outlet
Item Color
Stainless
Material
Acid-resistant stainless steel 1.4404
Outlet Dimension
Bottom/side in plastic or stainless steel in Ø50, Ø75 or Ø 110 mm
Size
1500x150 mm
Surface
Pickled
Version
Do not forget grid/outlet house
RSK Number
7103054
Construction Height
66
Floor Construction
Concrete flooring
Floor Covering
Tile floor with glueing flange
Function
End outlet
Item Color
Stainless
Material
Acid-resistant stainless steel 1.4404
Outlet Dimension
Bottom/side in plastic or stainless steel in Ø50, Ø75 or Ø 110 mm
Size
2000x150 mm
Surface
Pickled
Version
Do not forget grid/outlet house
RSK Number
7103055
Construction Height
66
Floor Construction
Concrete flooring
Floor Covering
Tile floor with glueing flange
Function
End outlet
Item Color
Stainless
Material
Acid-resistant stainless steel 1.4404
Outlet Dimension
Bottom/side in plastic or stainless steel in Ø50, Ø75 or Ø 110 mm
Size
2500x150 mm
Surface
Pickled
Version
Do not forget grid/outlet house
