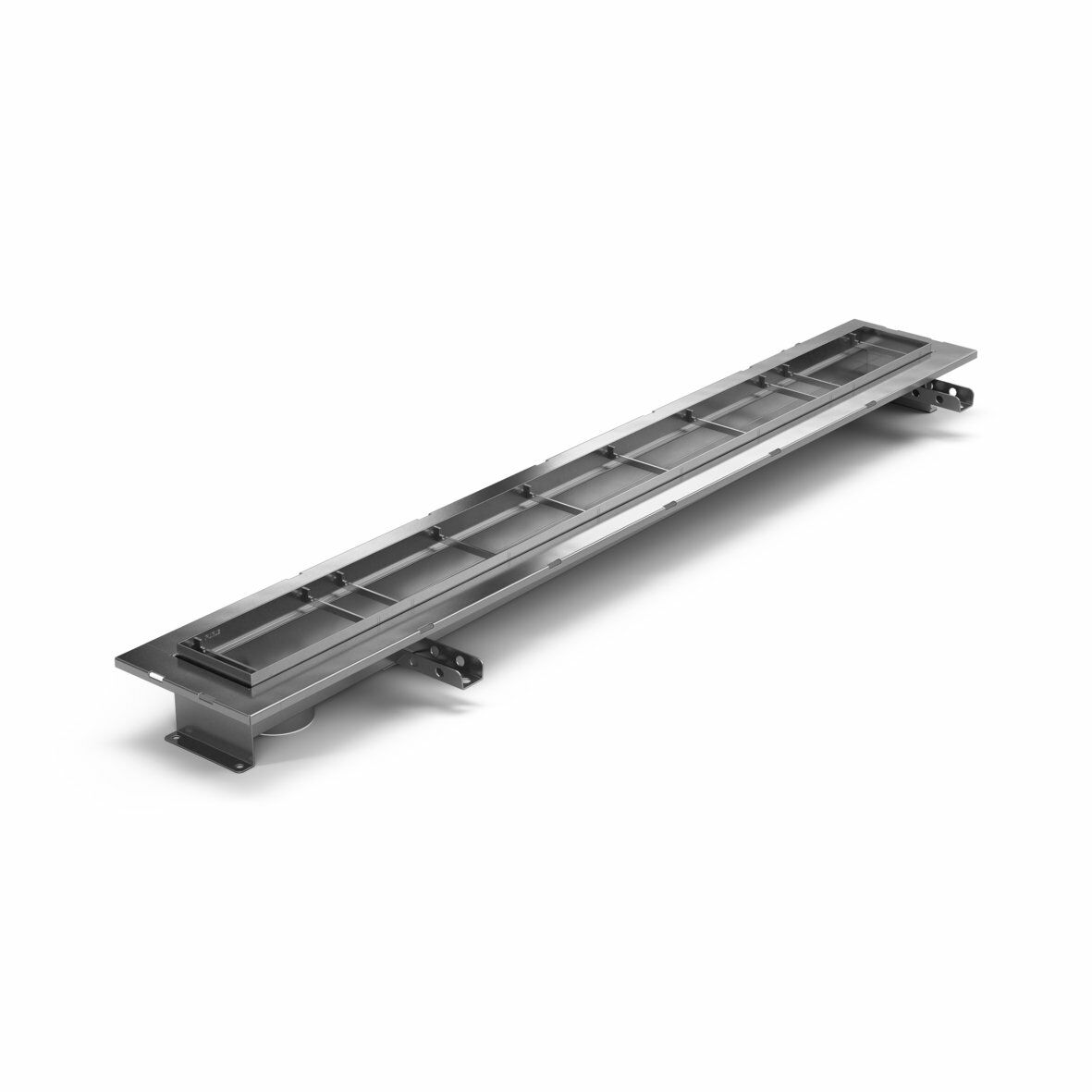

Purus channel 100 glueing flange Tile Insert end-outlet

Purus channel 100 is a floor channel made of acid-resistant stainless steel for installation in concrete. The floor channel is 600×100 mm with an end outlet and is intended for tile flooring with glue flange. The floor channel needs to be supplemented with a strainer/grating due to the environment and an outlet house made of plastic or acid-resistant stainless steel.

Purus channel 100 is a floor channel made of acid-resistant stainless steel for installation in concrete. The floor channel is 600x100 mm with an end outlet and is intended for tile flooring with glue flange. The floor channel needs to be supplemented with a strainer/grating due to the environment and an outlet house made of plastic or acid-resistant stainless steel.
  • Narrow channel with high flow capacity
  • Low installation height
  • Can be customised
  • High quality, hygienic and durable design
  • Suitable for commercial kitchens, hospitals, spas, garages and industrial environments
Purus channel 100 is a floor channel made of acid-resistant stainless steel for installation in concrete. The floor channel is 800x100 mm with an end outlet and is intended for tile flooring with glue flange. The floor channel needs to be supplemented with a strainer/grating due to the environment and an outlet house made of plastic or acid-resistant stainless steel.
  • Narrow channel with high flow capacity
  • Low installation height
  • Can be customised
  • High quality, hygienic and durable design
  • Suitable for commercial kitchens, hospitals, spas, garages and industrial environments
Purus channel 100 is a floor channel made of acid-resistant stainless steel for installation in concrete. The floor channel is 900x100 mm with an end outlet and is intended for tile flooring with glue flange. The floor channel needs to be supplemented with a strainer/grating due to the environment and an outlet house made of plastic or acid-resistant stainless steel.
  • Narrow channel with high flow capacity
  • Low installation height
  • Can be customised
  • High quality, hygienic and durable design
  • Suitable for commercial kitchens, hospitals, spas, garages and industrial environments
Purus channel 100 is a floor channel made of acid-resistant stainless steel for installation in concrete. The floor channel is 1000x100 mm with an end outlet and is intended for tile flooring with glue flange. The floor channel needs to be supplemented with a strainer/grating due to the environment and an outlet house made of plastic or acid-resistant stainless steel.
  • Narrow channel with high flow capacity
  • Low installation height
  • Can be customised
  • High quality, hygienic and durable design
  • Suitable for commercial kitchens, hospitals, spas, garages and industrial environments
Purus channel 100 is a floor channel made of acid-resistant stainless steel for installation in concrete. The floor channel is 1100x100 mm with an end outlet and is intended for tile flooring with glue flange, comes with a stainless steel tile box Tile Insert as top. The floor channel needs to be supplemented with a outlet house made of plastic or acid-resistant stainless steel.
  • Narrow channel with high flow capacity
  • Low installation height
  • Can be customised
  • High quality, hygienic and durable design
  • Suitable for commercial kitchens, hospitals, spas, garages and industrial environments
Purus channel 100 is a floor channel made of acid-resistant stainless steel for installation in concrete. The floor channel is 1200x100 mm with an end outlet and is intended for tile flooring with glue flange. The floor channel needs to be supplemented with a strainer/grating due to the environment and an outlet house made of plastic or acid-resistant stainless steel.
  • Narrow channel with high flow capacity
  • Low installation height
  • Can be customised
  • High quality, hygienic and durable design
  • Suitable for commercial kitchens, hospitals, spas, garages and industrial environments
Purus channel 100 is a floor channel made of acid-resistant stainless steel for installation in concrete. The floor channel is 1400x100 mm with an end outlet and is intended for tile flooring with glue flange. The floor channel needs to be supplemented with a strainer/grating due to the environment and an outlet house made of plastic or acid-resistant stainless steel.
  • Narrow channel with high flow capacity
  • Low installation height
  • Can be customised
  • High quality, hygienic and durable design
  • Suitable for commercial kitchens, hospitals, spas, garages and industrial environments
Purus channel 100 is a floor channel made of acid-resistant stainless steel for installation in concrete. The floor channel is 1500x100 mm with an end outlet and is intended for tile flooring with glue flange. The floor channel needs to be supplemented with a strainer/grating due to the environment and an outlet house made of plastic or acid-resistant stainless steel.
  • Narrow channel with high flow capacity
  • Low installation height
  • Can be customised
  • High quality, hygienic and durable design
  • Suitable for commercial kitchens, hospitals, spas, garages and industrial environments
Purus channel 100 is a floor channel made of acid-resistant stainless steel for installation in concrete. The floor channel is 2000x100 mm with an end outlet and is intended for tile flooring with glue flange. The floor channel needs to be supplemented with a strainer/grating due to the environment and an outlet house made of plastic or acid-resistant stainless steel.
  • Narrow channel with high flow capacity
  • Low installation height
  • Can be customised
  • High quality, hygienic and durable design
  • Suitable for commercial kitchens, hospitals, spas, garages and industrial environments
Purus channel 100 is a floor channel made of acid-resistant stainless steel for installation in concrete. The floor channel is 2500x100 mm with an end outlet and is intended for tile flooring with glue flange. The floor channel needs to be supplemented with a strainer/grating due to the environment and an outlet house made of plastic or acid-resistant stainless steel.
  • Narrow channel with high flow capacity
  • Low installation height
  • Can be customised
  • High quality, hygienic and durable design
  • Suitable for commercial kitchens, hospitals, spas, garages and industrial environments
RSK Number
7098969
Construction Height
68
Floor Construction
Concrete flooring
Floor Covering
Tiles
Function
End outlet
Item Color
Stainless
Material
Acid-resistant stainless steel 1.4404
Outlet Dimension
Bottom/side in plastic or stainless steel in Ø50, Ø75 or Ø 110 mm
Size
600x100 mm
Surface
Pickled
Version
Do not forget grid/outlet house
RSK Number
7098970
Construction Height
68
Floor Construction
Concrete flooring
Floor Covering
Tiles
Function
End outlet
Item Color
Stainless
Material
Acid-resistant stainless steel 1.4404
Outlet Dimension
Bottom/side in plastic or stainless steel in Ø50, Ø75 or Ø 110 mm
Size
800x100 mm
Surface
Pickled
Version
Do not forget grid/outlet house
RSK Number
7098971
Construction Height
68
Floor Construction
Concrete flooring
Floor Covering
Tiles
Function
End outlet
Item Color
Stainless
Material
Acid-resistant stainless steel 1.4404
Outlet Dimension
Bottom/side in plastic or stainless steel in Ø50, Ø75 or Ø 110 mm
Size
900x100 mm
Surface
Pickled
Version
Do not forget grid/outlet house
RSK Number
7098972
Construction Height
68
Floor Construction
Concrete flooring
Floor Covering
Tiles
Function
End outlet
Item Color
Stainless
Material
Acid-resistant stainless steel 1.4404
Outlet Dimension
Bottom/side in plastic or stainless steel in Ø50, Ø75 or Ø 110 mm
Size
1000x100 mm
Surface
Pickled
Version
Do not forget grid/outlet house
RSK Number
7098973
Construction Height
73
Floor Construction
Concrete flooring
Floor Covering
Tiles
Function
End outlet
Item Color
Stainless
Material
Acid-resistant stainless steel 1.4404
Outlet Dimension
Bottom/side in plastic or stainless steel in Ø50, Ø75 or Ø 110 mm
Size
1100x100 mm
Surface
Pickled
Version
Do not forget grid/outlet house
RSK Number
7098974
Construction Height
73
Floor Construction
Concrete flooring
Floor Covering
Tiles
Function
End outlet
Item Color
Stainless
Material
Acid-resistant stainless steel 1.4404
Outlet Dimension
Bottom/side in plastic or stainless steel in Ø50, Ø75 or Ø 110 mm
Size
1200x100 mm
Surface
Pickled
Version
Do not forget grid/outlet house
RSK Number
7098975
Construction Height
73
Floor Construction
Concrete flooring
Floor Covering
Tiles
Function
End outlet
Item Color
Stainless
Material
Acid-resistant stainless steel 1.4404
Outlet Dimension
Bottom/side in plastic or stainless steel in Ø50, Ø75 or Ø 110 mm
Size
1400x100 mm
Surface
Pickled
Version
Do not forget grid/outlet house
RSK Number
7098976
Construction Height
73
Floor Construction
Concrete flooring
Floor Covering
Tiles
Function
End outlet
Item Color
Stainless
Material
Acid-resistant stainless steel 1.4404
Outlet Dimension
Bottom/side in plastic or stainless steel in Ø50, Ø75 or Ø 110 mm
Size
1500x100 mm
Surface
Pickled
Version
Do not forget grid/outlet house
RSK Number
7098977
Construction Height
78
Floor Construction
Concrete flooring
Floor Covering
Tiles
Function
End outlet
Item Color
Stainless
Material
Acid-resistant stainless steel 1.4404
Outlet Dimension
Bottom/side in plastic or stainless steel in Ø50, Ø75 or Ø 110 mm
Size
2000x100 mm
Surface
Pickled
Version
Do not forget grid/outlet house
RSK Number
7098978
Construction Height
78
Floor Construction
Concrete flooring
Floor Covering
Tiles
Function
End outlet
Item Color
Stainless
Material
Acid-resistant stainless steel 1.4404
Outlet Dimension
Bottom/side in plastic or stainless steel in Ø50, Ø75 or Ø 110 mm
Size
2500x100 mm
Surface
Pickled
Version
Do not forget grid/outlet house
