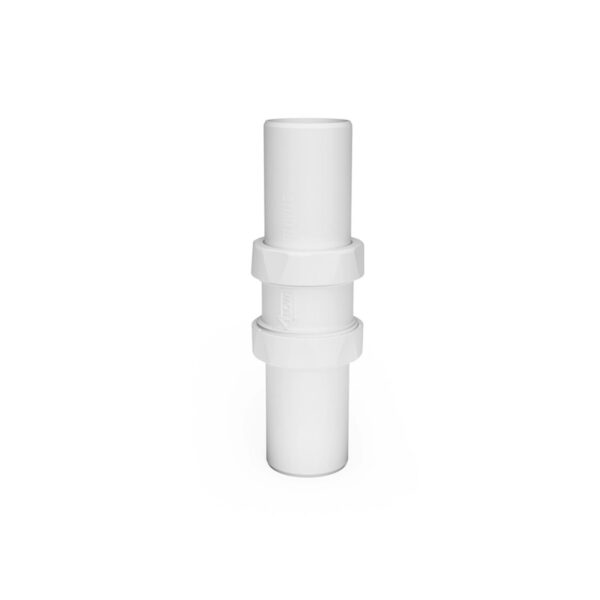

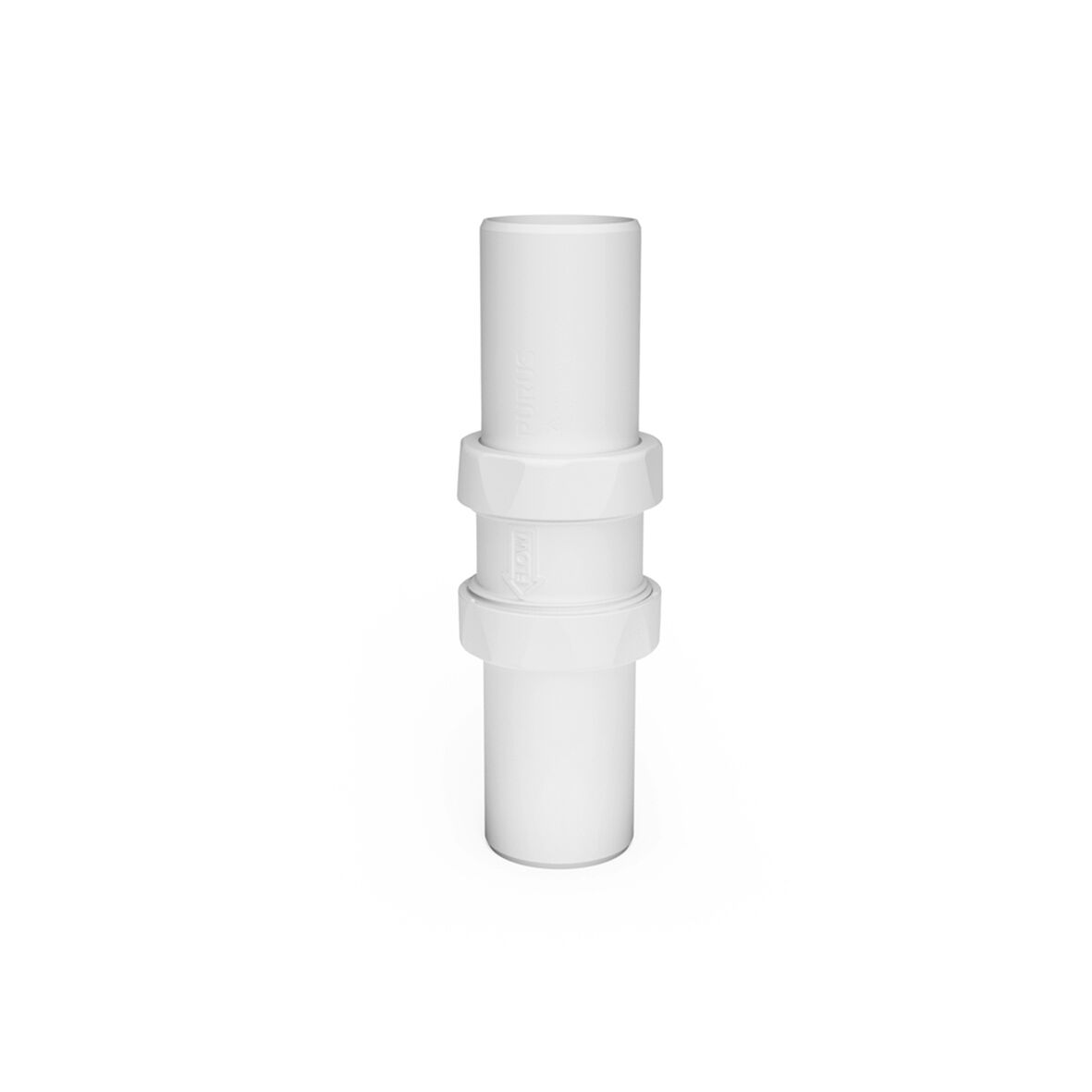

PUM Pipe connection is used in pipe systems for water outlets and provides easy access for inspection and cleaning of the membrane. PUM Pipe connection is intended for connection to pipe diameter Ø32/40 mm using sleeves or transition couplings.
The PUM membrane acts as a mechanical odour barrier, which is closed in its original position and is opened by the water flow, thus replacing a traditional water trap. The membrane's advantages include easy cleaning, compact installation, and good flow capacity. The membrane also functions as secondary ventilation.
The PUM membrane acts as a mechanical odour barrier, which is closed in its original position and is opened by the water flow, thus replacing a traditional water trap. The membrane's advantages include easy cleaning, compact installation, and good flow capacity. The membrane also functions as secondary ventilation.
- Easy access for inspection and cleaning
- Compact installation
- Stops bad smell
- Good flow capacity
- Secondary ventilation
RSK Number
8124020
Function
Odour trap
Item Color
White
Material
PP, TPE, Silicone
Outlet Dimension
Ø40 mm
Pressure Flow Temp
0,6 l/s
Size
164x53x53 mm
