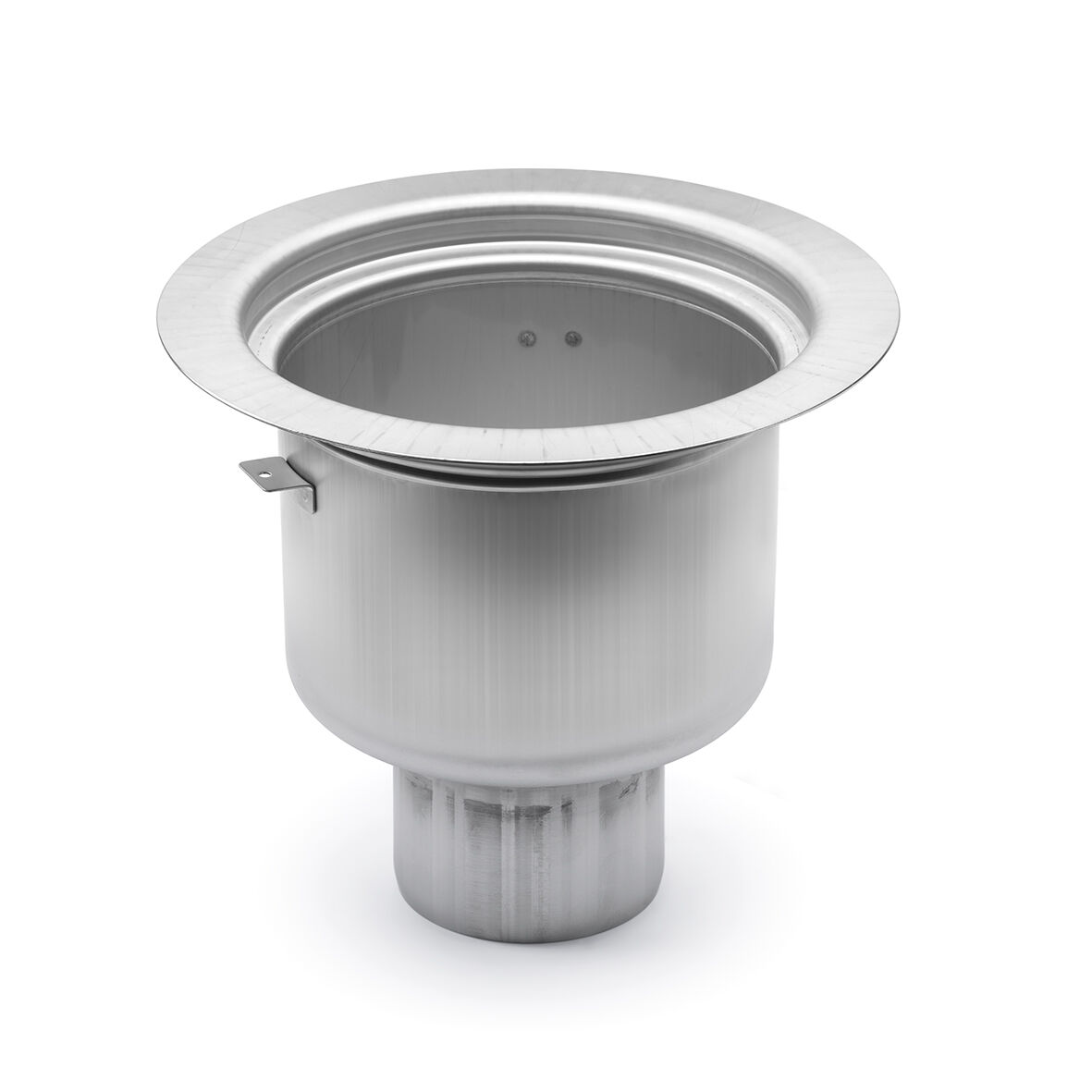

Outlet house untrapped in acid-resistant stainless steel with Ø110 bottom outlet and Ø110 connection to the drainage channel.
Outlet gully untrapped in acid-resistant stainless steel with Ø110 vertical outlet and Ø220 connection to the drainage channel.
Outlet gully untrapped in acid-resistant stainless steel with Ø110 vertical outlet and Ø150 connection to the drainage channel.
Size
110
RSK Number
7101003
Material
Acid-resistant stainless steel 1.4404
Construction Height
125
Surface
Cold rolled (2B)
Version
Untrapped
Flow
3,9
Item Color
Stainless
Pressure Flow Temp
4,6 l/s
Outlet Dimension
Ø110 mm
Function
Bottom outlet
Size
220
RSK Number
7101018
Material
Acid-resistant stainless steel 1.4404
Construction Height
256
Surface
Cold rolled (2B)
Version
Untrapped
Flow
>5,2
Item Color
Stainless
Pressure Flow Temp
5,2 l/s
Outlet Dimension
Ø110 mm
Function
Bottom outlet
Size
150
RSK Number
7101013
Material
Acid-resistant stainless steel 1.4404
Construction Height
132
Surface
Cold rolled (2B)
Version
Untrapped
Flow
>5,2
Item Color
Stainless
Pressure Flow Temp
5,2 l/s
Outlet Dimension
Ø110 mm
Function
Bottom outlet
