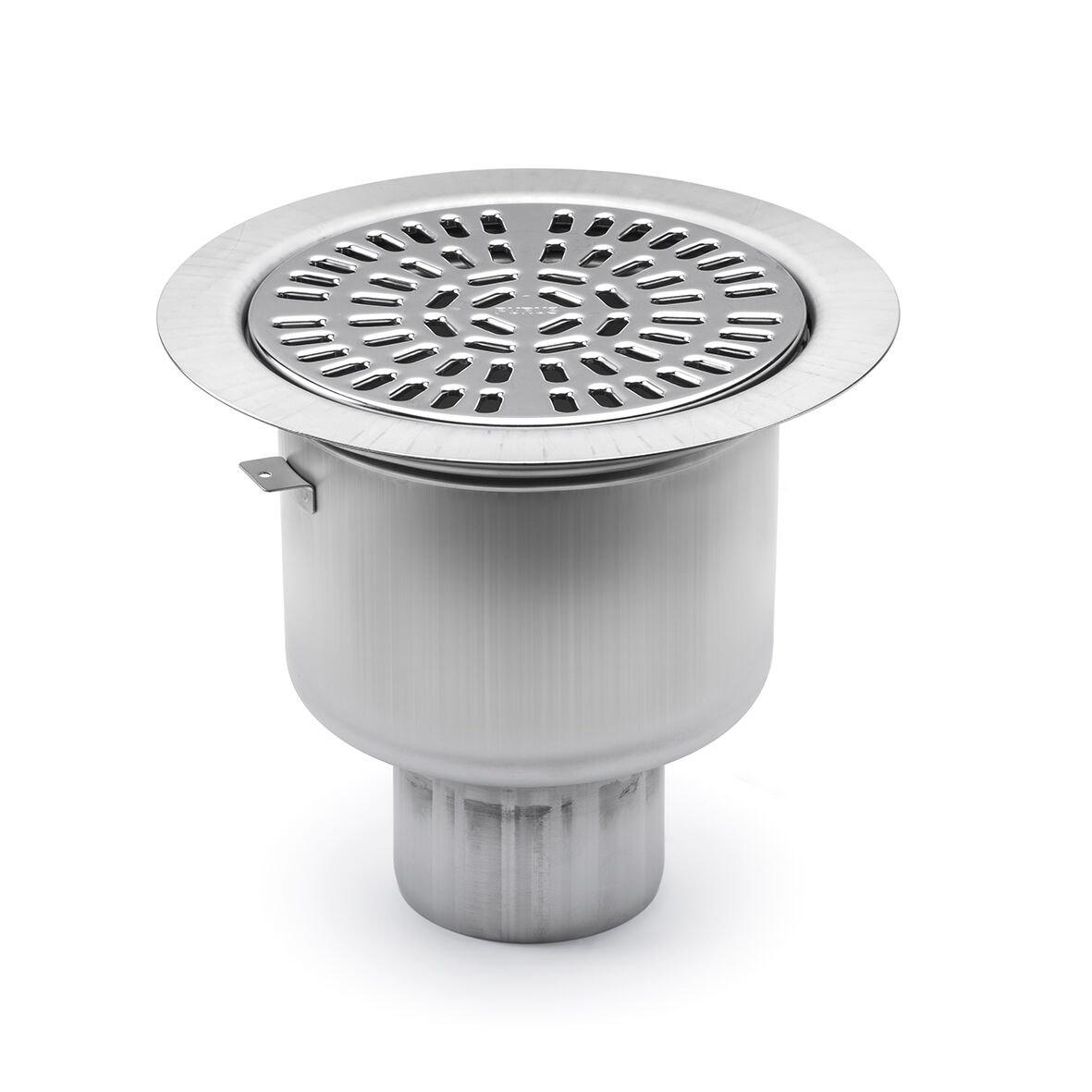

The Heavy 110 R floor drain has a 110mm bottom outlet and is for installation in concrete joists. The Heavy floor drain comes with a stainless steel water trap, clamping ring and stainless steel grate. It also comes with a protective cover that is intended to prevent any concrete or debris from installation from entering the drain.
The automatic clamping ring is used for both sealing membrane and vinyl flooring. It is a self-adjusting clamping ring for vinyl flooring with a thickness of 1,5 mm to 2 mm.
The automatic clamping ring is used for both sealing membrane and vinyl flooring. It is a self-adjusting clamping ring for vinyl flooring with a thickness of 1,5 mm to 2 mm.
- High resistance to chemicals
- Corrosion resistant
- Recyclable
- High strength
- Withstand rats/animals
RSK Number
7102837
Floor Covering
Concrete/Resin/Tiles/Vinyl
Function
Bottom outlet
Item Color
Stainless
Material
Acid-resistant stainless steel 1.4404
Outlet Dimension
Ø110 mm
Pressure Flow Temp
3,3 l/s
Size
220
Surface
Cold rolled (2B)
Version
With stainless steel grating
