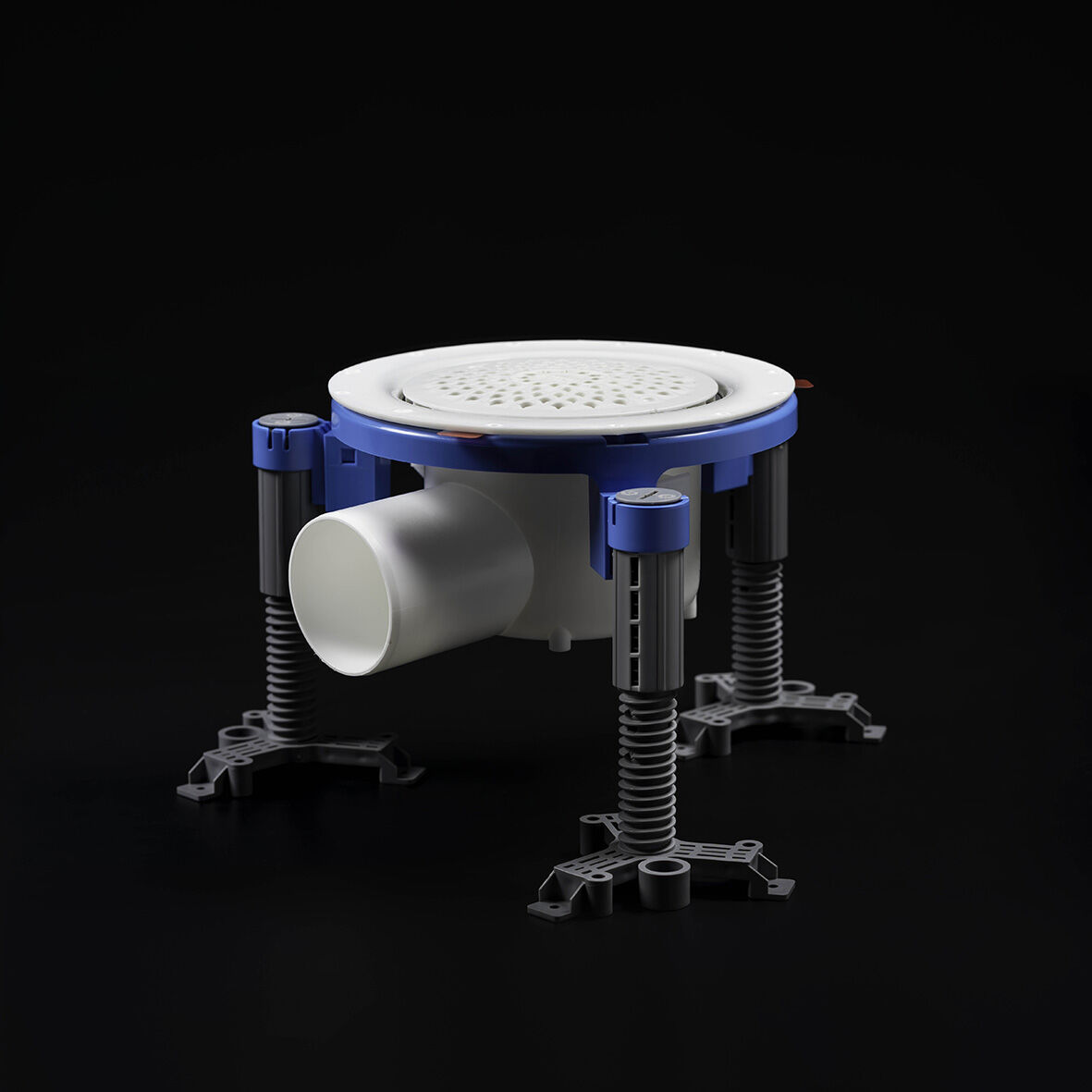

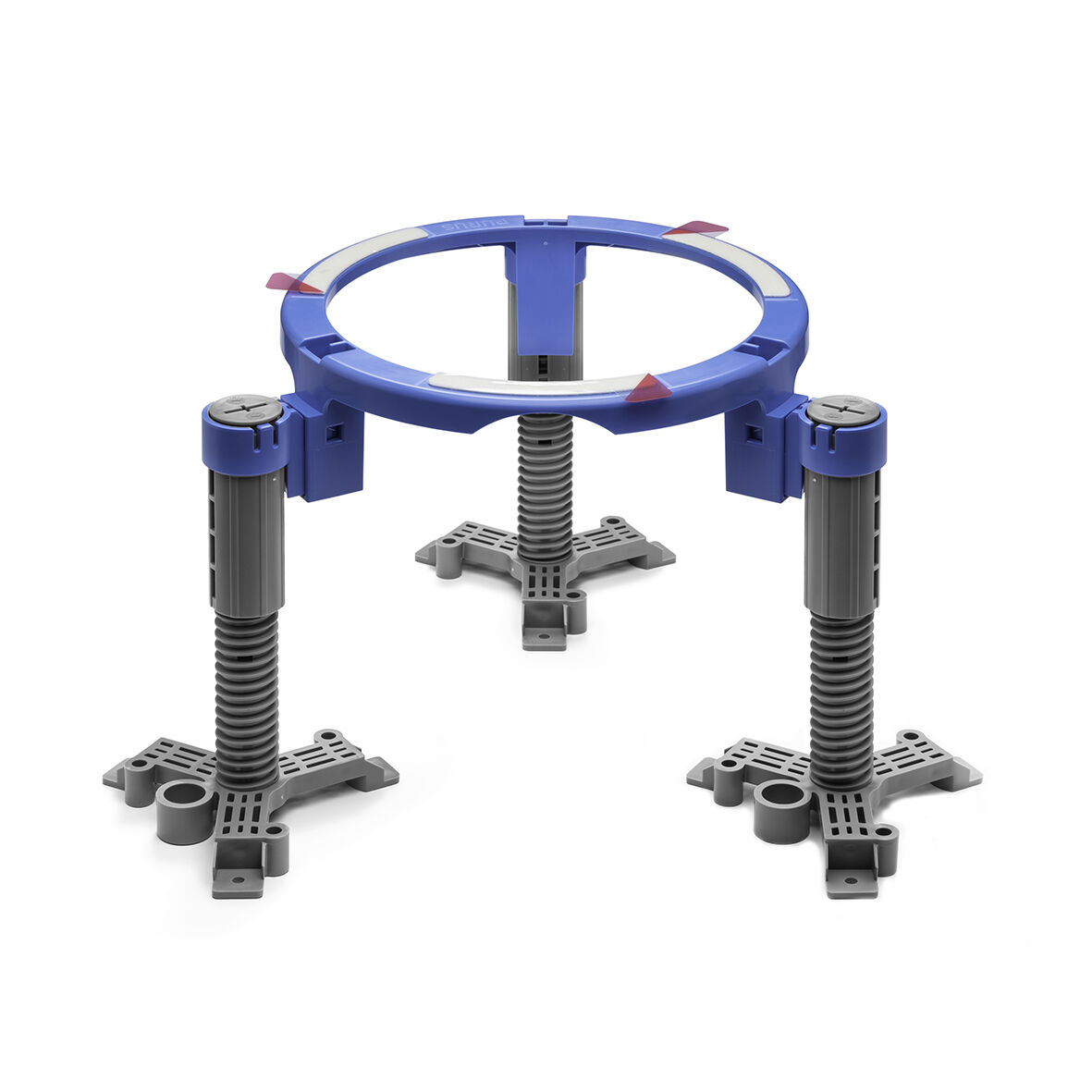

The Midgård installation support must always be used when installing Purus floor drains into concrete floors. The Midgård support ensures that the installation meets the recommended tolerance requirements of +/- 2mm for floor drain installations, according to current industry guidelines. The legs are set for an installation height of 172mm; but can also be adjusted from 82mm to 230mm. The support feet have four different installation options: nail gun and washer; screw and plug; nail plug; EPS fastener and nail; or alternatively can be fixed and fastened. The Midgård support is designed to fit all plastic, stainless steel and cast iron Purus floor drains with a grate diameter of 130mm and 150mm, as well as gullies in the S-Series. For installation of the Saga and Rot floor drains, the Bifrost support is recommended.
- Quick and stable installation; adhesive tape which secures the floor drain
- Patented solution

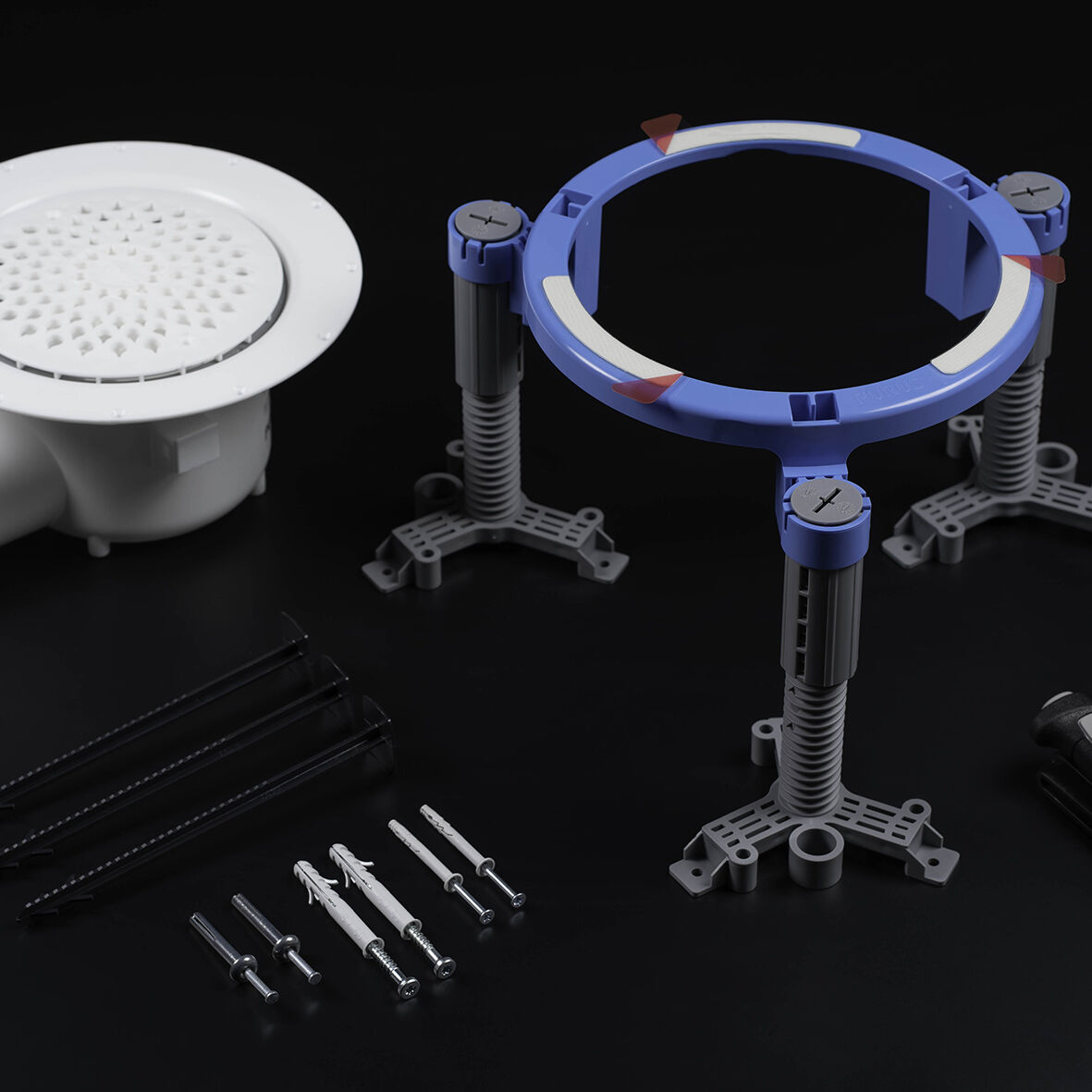

- 4 attachment options

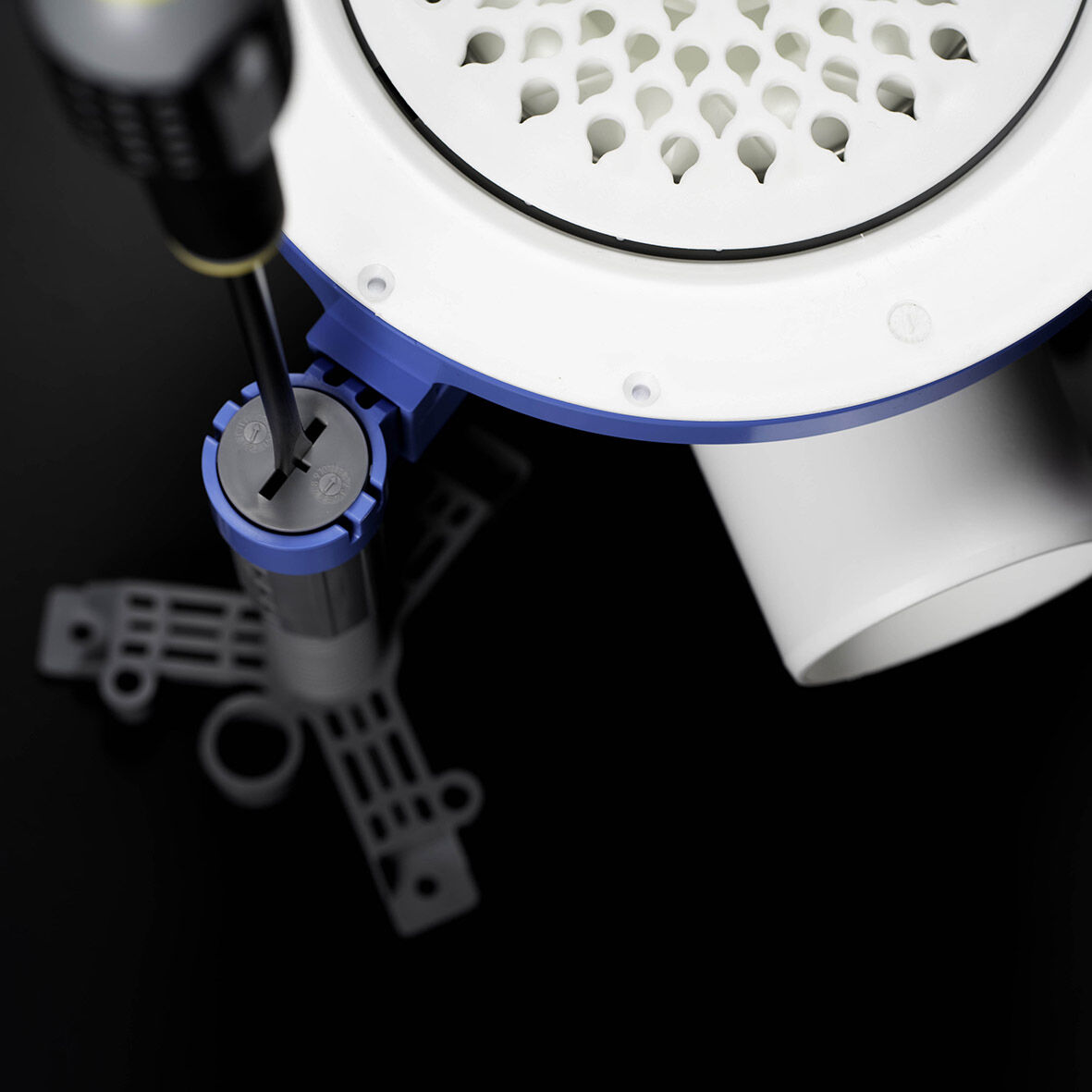

- Infinitely adjustable, either by hand or with a chisel/knife
- Reduces the need for cutting the support legs
- Compatible with most floor drains
RSK Number
7129928
Floor Construction
Concrete flooring
Function
For installation in concrete floor
Item Color
Grey
Material
ABS, PP
Version
Adjustable height
