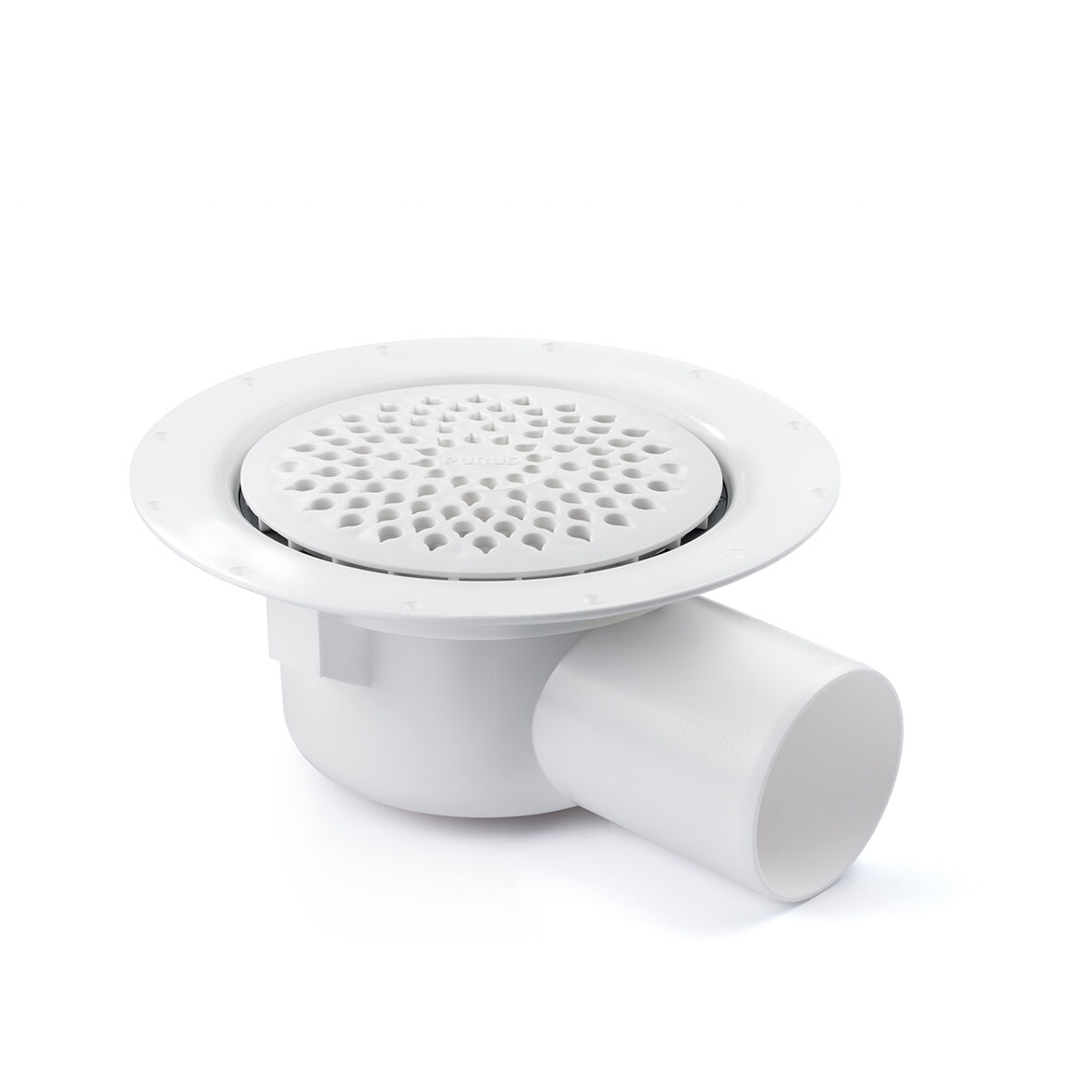

The Ymer 75 Side floor drain has a 75mm side outlet and a low total height of 101mm. It is suitable for installation in wooden or concrete joists. The Ymer floor drain comes complete with a removable water trap, clamping ring and plastic grate. It also comes with a protective cover that is intended to prevent any concrete or debris from installation from entering the drain. The floor drain is manufactured in weldable PEH plastic.
The automatic clamping ring is used for both sealing membrane and vinyl flooring. It is a self-adjusting clamping ring for vinyl flooring with a thickness of 1,5 mm to 2 mm.
The automatic clamping ring is used for both sealing membrane and vinyl flooring. It is a self-adjusting clamping ring for vinyl flooring with a thickness of 1,5 mm to 2 mm.
- Low-built and made of weldable material
- The floor drain comes complete with an automatic clamping ring, water trap and grating
- Removable and divisible water trap for easy cleaning
- The automatic clamping ring means that no o-ring or loose screws need to be used during installation
- The floor drain grating is designed to prevent any residual water from pooling
RSK Number
7113546
Floor Construction
Concrete/Wood
Floor Covering
Concrete/Resin/Tiles/Vinyl
Function
Side outlet
Item Color
White
Material
PEH
Outlet Dimension
Ø75 mm
Pressure Flow Temp
1,0 l/s
Size
150
Version
With plastic grating
