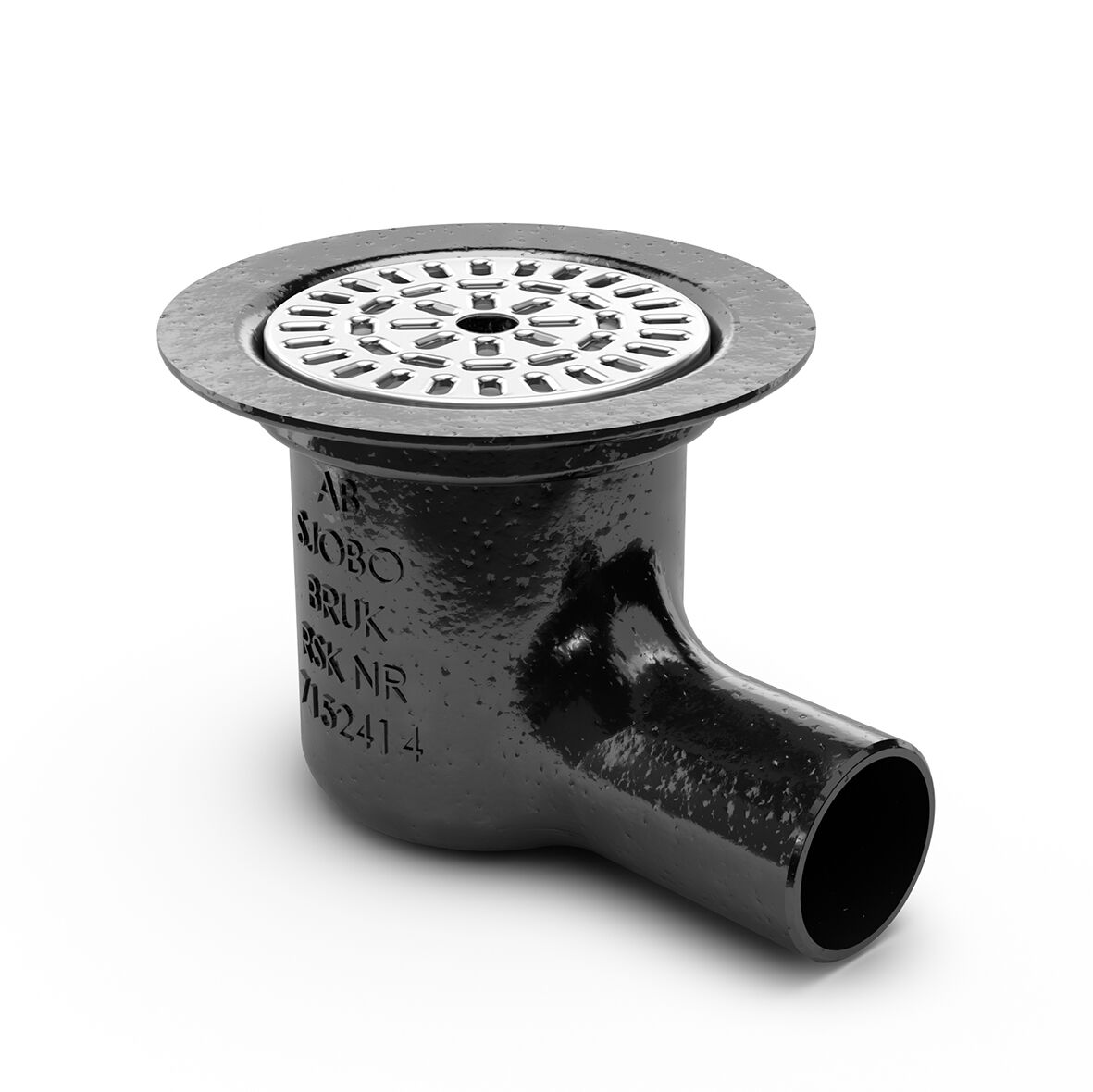

The Tryggve floor drain has a 75 mm side outlet and is for installation in concrete joists with vinyl floor finishes. The floor drain is manufactured in epoxy coated cast iron and comes complete with a lockable brass water trap, locking set, clamping ring and stainless steel grate. It is approved by MSB for installation in shelters.
The automatic clamping ring is used for both sealing membrane and vinyl flooring. It is a self-adjusting clamping ring for vinyl flooring with a thickness of 1,5 mm to 2 mm.
The automatic clamping ring is used for both sealing membrane and vinyl flooring. It is a self-adjusting clamping ring for vinyl flooring with a thickness of 1,5 mm to 2 mm.
- Sound-absorbing
- Fireproof
- Lockable water trap
- Approved for shelters
RSK Number
7098057
Floor Construction
Concrete flooring
Floor Covering
Vinyl
Function
Side outlet
Item Color
Black
Material
Cast iron, Acid-resistant stainless steel 1.4404
Outlet Dimension
Ø75 mm
Pressure Flow Temp
1,0 l/s
Size
Ø150 mm
Surface
Epoxy coated
Version
With stainless steel grating
