The Sigyn 75 floor drain has a 75mm side outlet and is suitable for installation in wooden or concrete joists. The Sigyn floor drain comes with a stainless steel water trap, clamping ring and stainless steel grate. It also comes with a protective cover that is intended to prevent any concrete or debris from installation from entering the drain.

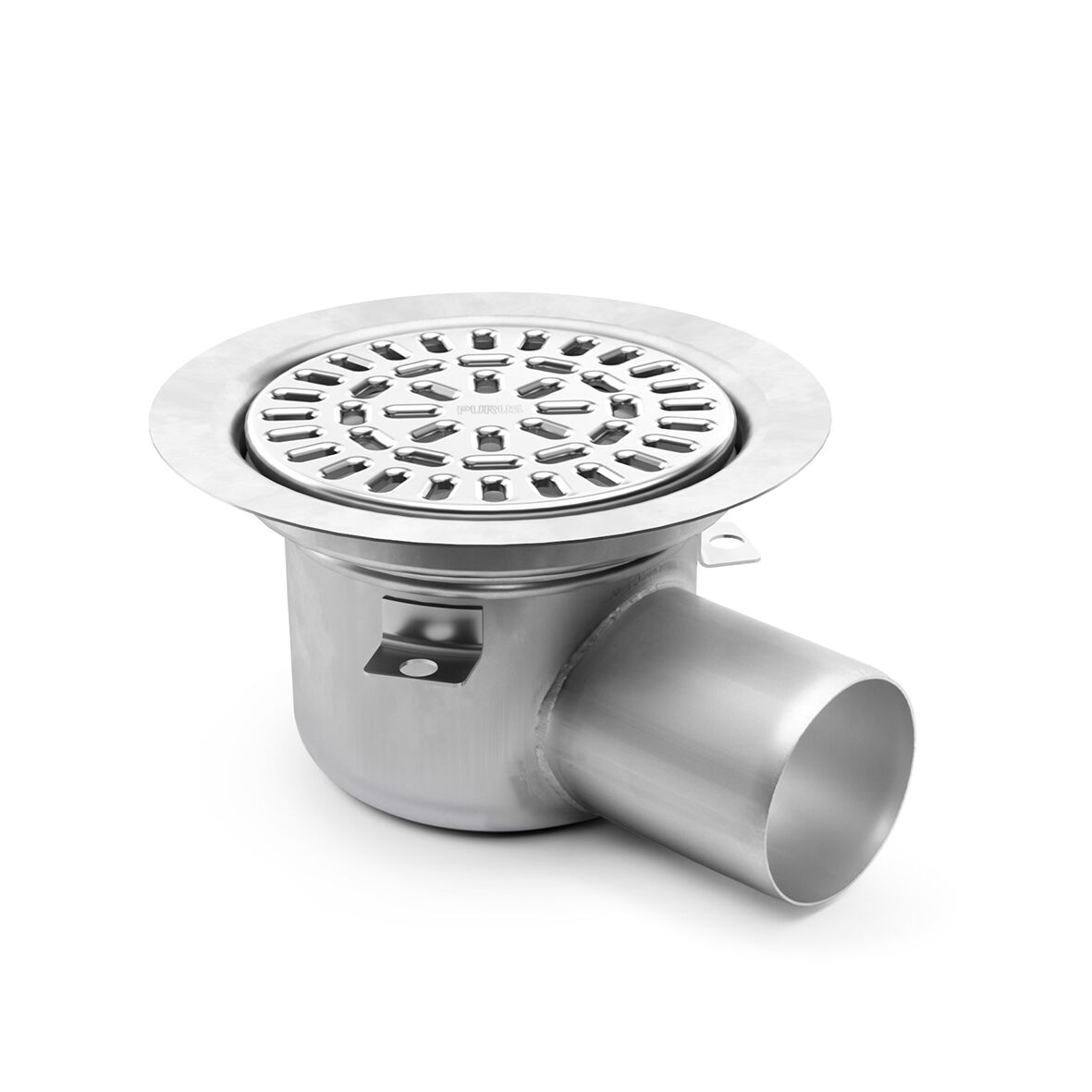

The Sigyn 75 Low floor drain has a 75mm low side outlet. The floor drain has a total height of 120mm and is suitable for installation in wooden or concrete joists. The Sigyn floor drain comes with a stainless steel water trap, clamping ring and stainless steel grate. It also comes with a protective cover that is intended to prevent any concrete or debris from installation from entering the drain.
Size
150
RSK Number
7118085
Material
Acid-resistant stainless steel 1.4404
Floor Covering
Concrete/Resin/Tiles/Vinyl
Surface
Cold rolled (2B)
Version
With stainless steel grating
Item Color
Stainless
Pressure Flow Temp
1,0 l/s
Outlet Dimension
Ø75 mm
Function
Side outlet
Size
150
RSK Number
7110828
Material
Acid-resistant stainless steel 1.4404
Floor Covering
Concrete/Resin/Tiles/Vinyl
Surface
Cold rolled (2B)
Version
With stainless steel grating
Item Color
Stainless
Pressure Flow Temp
1,0 l/s
Outlet Dimension
Ø75 mm
Function
Side outlet
