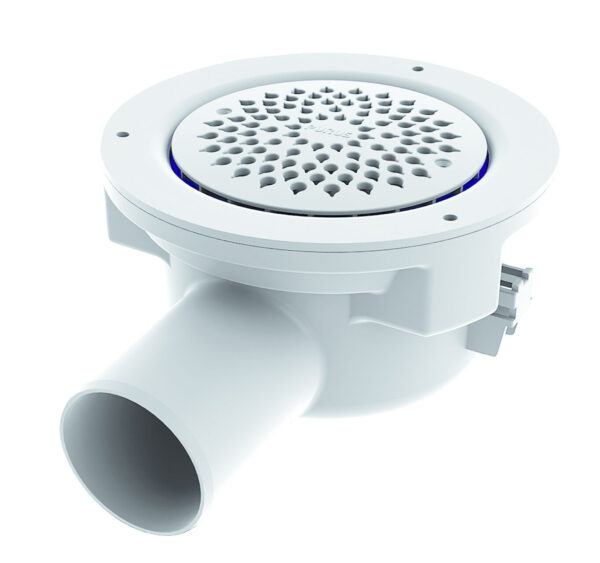

Floor drain Saga 75 side

The Saga 75 Side floor drain has a 75mm side outlet and is suitable for installation in concrete joists. The floor drain has a built-in extension ring. This extension ring should sit in its lowest position when casting the concrete; and after grouting, the upper part can then be raised by a maximum of 15mm and can be angled up to 4° from its starting position. The Saga floor drain comes complete with a removable water trap, clamping ring and plastic grate. It also comes with a protective cover that is intended to prevent any concrete or debris from installation from entering the drain.

The automatic clamping ring is used for both sealing membrane and vinyl flooring. It is a self-adjusting clamping ring for vinyl flooring with a thickness of 1,5 mm to 2 mm.

The Saga 75 Side floor drain has a 75mm side outlet and is suitable for installation in concrete joists. The floor drain has a built-in extension ring. This extension ring should sit in its lowest position when casting the concrete; and after grouting, the upper part can then be raised by a maximum of 15mm and can be angled up to 4° from its starting position. The Saga floor drain comes complete with a removable water trap, clamping ring and plastic grate. It also comes with a protective cover that is intended to prevent any concrete or debris from installation from entering the drain.

The automatic clamping ring is used for both sealing membrane and vinyl flooring. It is a self-adjusting clamping ring for vinyl flooring with a thickness of 1,5 mm to 2 mm.
  • Built-in extension ring that is adjustable and tiltable after installation
  • Adapted for concrete floors
  • The Saga comes complete with an automatic clamping ring, water trap and grating
  • The automatic clamping ring means that no o-ring or loose screws need to be used during installation
  • The grating is designed to prevent any residual water from pooling
RSK Number
7113609
Floor Construction
Concrete flooring
Floor Covering
Concrete/Resin/Tiles/Vinyl
Function
Side outlet
Item Color
White
Material
PP, Unleaded brass
Outlet Dimension
Ø75 mm
Pressure Flow Temp
1,0 l/s
Size
150
Version
With plastic grating
