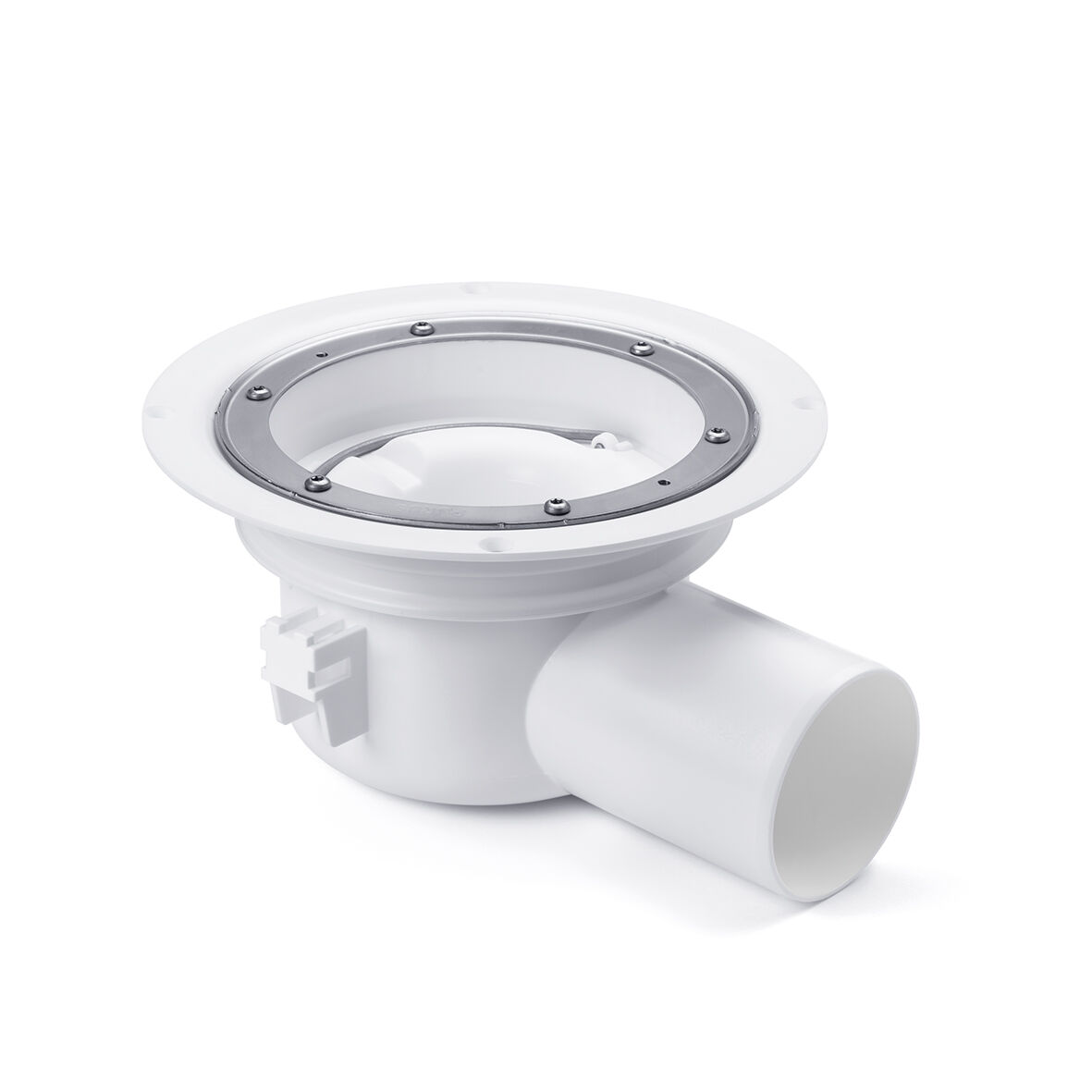

The S-Series Oden is a floor drain with a 75mm side outlet for installation in wooden or concrete joists. The S-Series Oden floor drain comes with a removable water trap and stainless steel clamping ring. It also comes with a protective cover that is intended to prevent any concrete or debris from installation from entering the drain.
The clamping is for vinyl flooring with a thickness of up to 3 mm.
The clamping is for vinyl flooring with a thickness of up to 3 mm.
- The floor drain is delivered with a stainless steel screwed clamping ring with 6 screws, specially developed for waterproofing membrane
- Many screw holes for easy installation - if necessary, there are new screw holes around the entire flange of the drain
- Low seat (7mm)
- Weldable material
- Removable and divisible water trap for easy cleaning
RSK Number
7110405
Floor Construction
Concrete/Wood
Floor Covering
Tiles/Vinyl
Function
Side outlet
Item Color
White
Material
PP
Outlet Dimension
Ø75 mm
Pressure Flow Temp
1,0 l/s
Size
179
Version
Stainless screwed clamping ring
