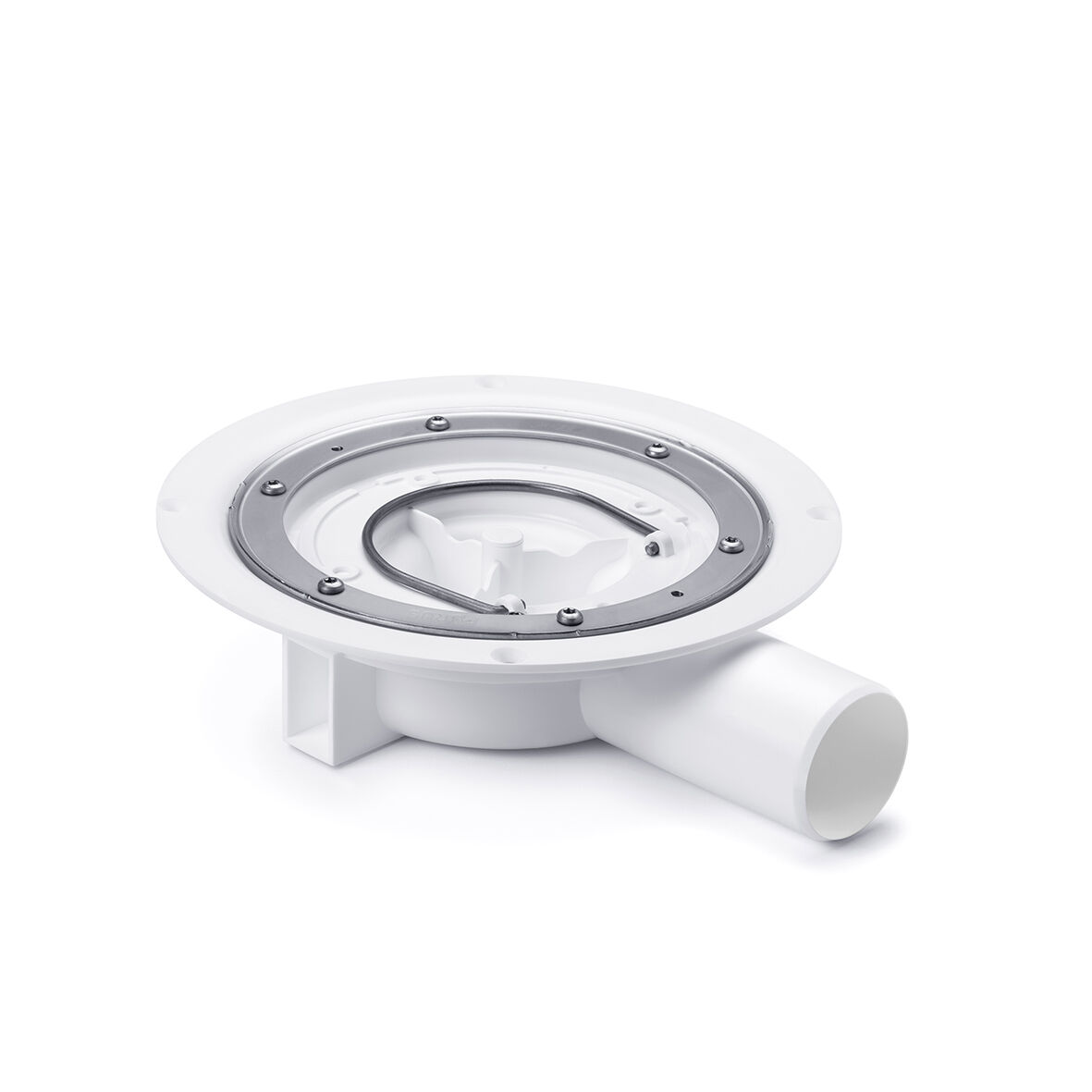

The S-Series Minimax is a floor drain with a 50mm side outlet and a low construction height of 59mm. It is designed for installation in concrete joists. The S-Series Minimax floor drain comes with a removable NOOD water trap and stainless steel clamping ring. The NOOD water trap is a mechanical trap which closes when there is no water present, thus preventing any foul air from escaping through the drain. The S-Series Minimax requires connection with a joint connector and is not suitable for installation underneath a bath tub. It also comes with a protective cover that is intended to prevent any concrete or debris from installation from entering the drain.
The clamping is for vinyl flooring with a thickness of up to 3 mm.
The clamping is for vinyl flooring with a thickness of up to 3 mm.
- Low-built
- Comes with NOOD water trap
- The floor drain comes with a stainless steel screwed clamping ring with 6 screws, specially developed for waterproofing membrane
- Many screw holes for easy installation - if necessary, there are new screw holes around the entire flange of the drain
- Low seat (7mm)
RSK Number
7110406
Floor Construction
Concrete flooring
Floor Covering
Tiles/Vinyl
Function
Side outlet
Item Color
White
Material
PP
Outlet Dimension
Ø50 mm
Pressure Flow Temp
0,5 l/s
Size
179
Version
Stainless screwed clamping ring
