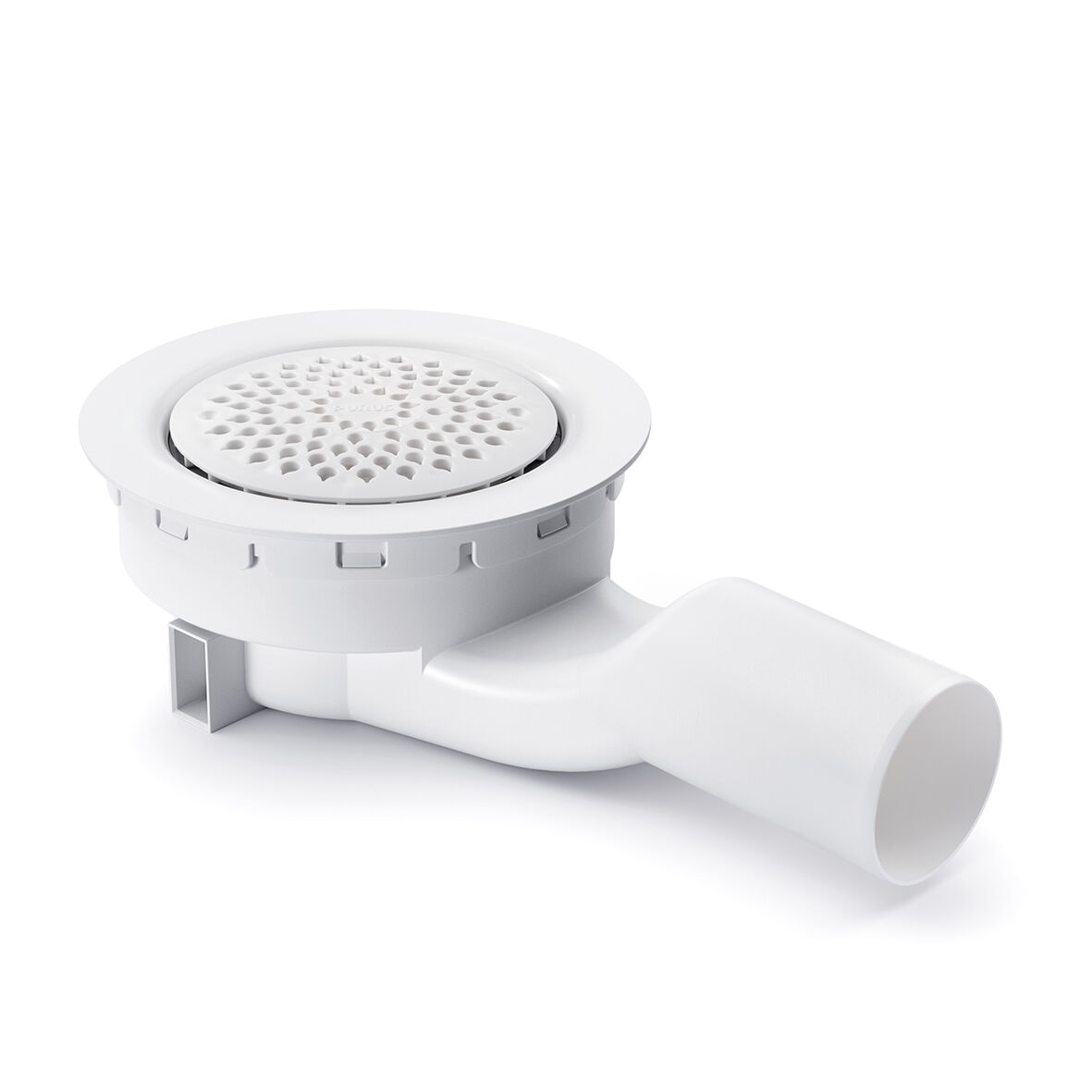

The Rot 75 Side floor drain has a 75mm side outlet and a low total height of 99mm. It is suitable for installation in concrete joists. The floor drain can be height-adjusted from 99mm to 129mm by rotating the flange anti-clockwise. This must be done before casting. The Rot floor drain comes complete with a removable water trap, clamping ring and plastic grate. It also comes with a protective cover that is intended to prevent any concrete or debris from installation from entering the drain.
The automatic clamping ring is used for both sealing membrane and vinyl flooring. It is a self-adjusting clamping ring for vinyl flooring with a thickness of 1,5 mm to 2 mm.
The automatic clamping ring is used for both sealing membrane and vinyl flooring. It is a self-adjusting clamping ring for vinyl flooring with a thickness of 1,5 mm to 2 mm.
- Height-adjustable flange
- Outlet dimensions correspond with older floor drains
- Adapted for concrete floors
- The Rot comes complete with a clamping ring, water trap and grating
- The grating is designed to prevent any residual water from pooling
RSK Number
7113544
Floor Construction
Concrete flooring
Floor Covering
Concrete/Resin/Tiles/Vinyl
Function
Side outlet
Item Color
White
Material
PP
Outlet Dimension
Ø75 mm
Pressure Flow Temp
1,0 l/s
Size
150
Version
With plastic grating
