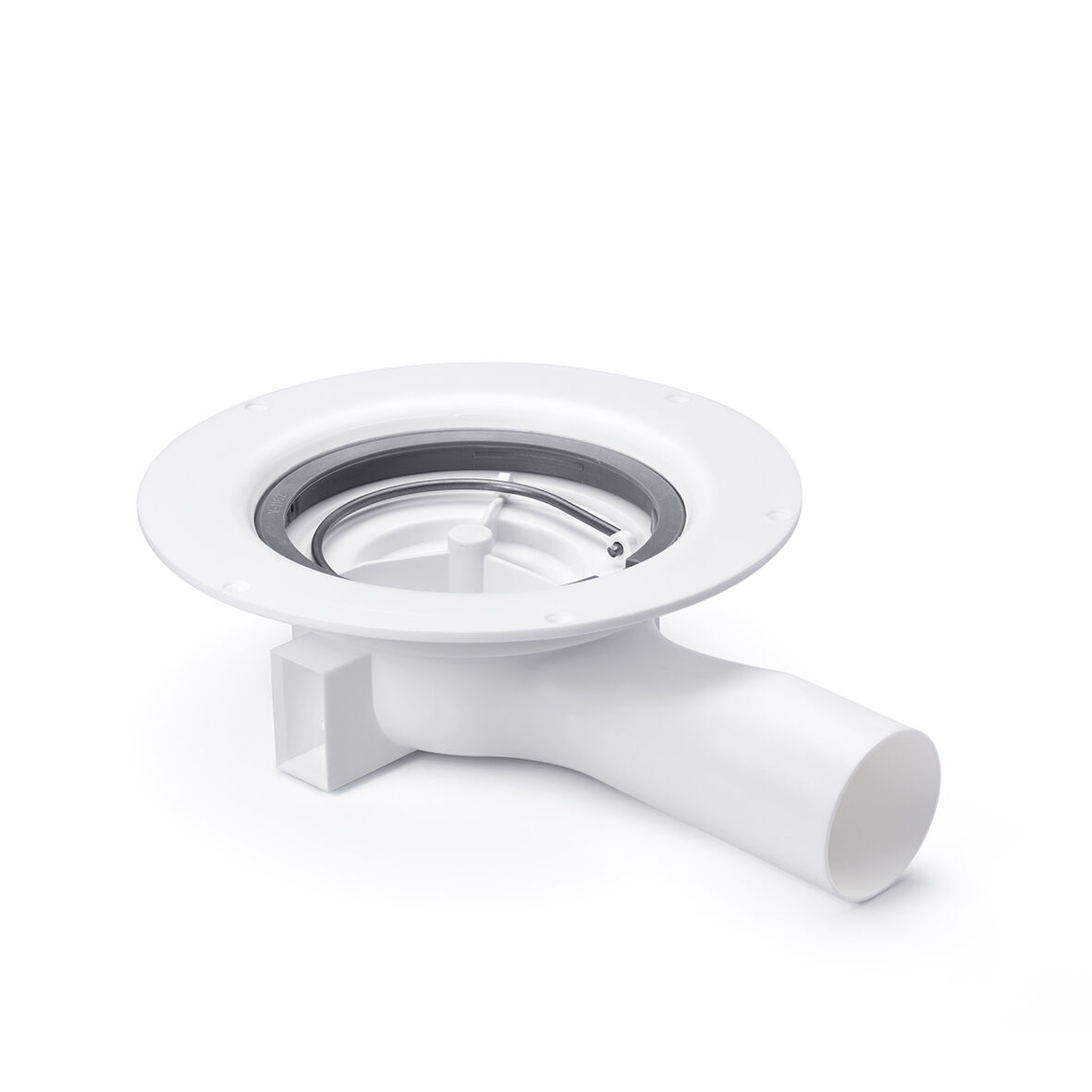

The Minimax 50 floor drain has a 50 mm side outlet and a low total height of 76mm. It is suitable for installation in concrete joists. The Minimax floor drain comes with a removable NOOD water trap and clamping ring. The NOOD water trap is a mechanical trap which closes when there is no water present, thus preventing any foul air from escaping through the drain. It also comes with a protective cover that is intended to prevent any concrete or debris from installation from entering the drain. It is not suitable for installation underneath a bath tub.
The automatic clamping ring is used for both sealing membrane and vinyl flooring. It is a self-adjusting clamping ring for vinyl flooring with a thickness of 1,5 mm to 2 mm.
The automatic clamping ring is used for both sealing membrane and vinyl flooring. It is a self-adjusting clamping ring for vinyl flooring with a thickness of 1,5 mm to 2 mm.
- Low-built
- The floor drain comes complete with an automatic clamping ring and NOOD water trap
- Removable NOOD water trap for easy cleaning
- The automatic clamping ring means that no o-ring or loose screws need to be used during installation
RSK Number
7113768
Floor Construction
Concrete flooring
Floor Covering
Concrete/Resin/Tiles/Vinyl
Function
Side outlet
Item Color
White
Material
PP
Outlet Dimension
Ø50 mm
Pressure Flow Temp
0,8 l/s
Size
Ø130 mm
Version
No grating
