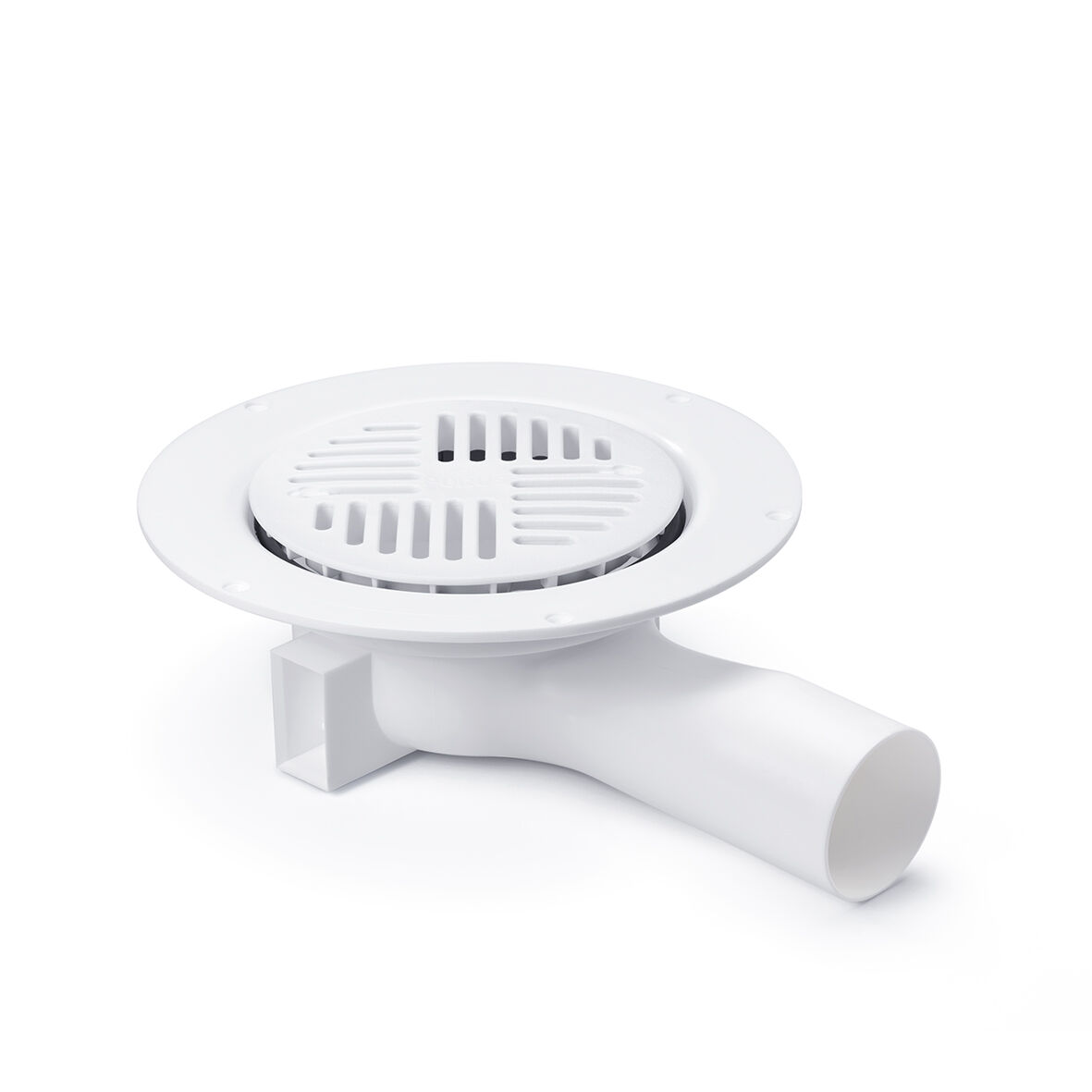

The Minimax 50 floor drain has a 50 mm side outlet and a low total height of 70mm (76mm with falls). It is suitable for installation in concrete joists. The Minimax floor drain comes complete with a removable NOOD water trap, clamping ring and plastic grate. The NOOD water trap is a mechanical trap which closes when there is no water present, thus preventing any foul air from escaping through the drain.
The automatic clamping ring is used for both sealing membrane and vinyl flooring. It is a self-adjusting clamping ring for vinyl flooring with a thickness of 1,5 mm to 2 mm.
The automatic clamping ring is used for both sealing membrane and vinyl flooring. It is a self-adjusting clamping ring for vinyl flooring with a thickness of 1,5 mm to 2 mm.
- Low-built
- The floor drain comes complete with an automatic clamping ring and NOOD water trap
- Removable NOOD water trap for easy cleaning
- The automatic clamping ring means that no o-ring or loose screws need to be used during installation
- The floor drain grating is designed to prevent any residual water from pooling
RSK Number
7113764
Floor Construction
Concrete flooring
Floor Covering
Concrete/Resin/Tiles/Vinyl
Function
Side outlet
Item Color
White
Material
PP
Outlet Dimension
Ø50 mm
Pressure Flow Temp
0,8 l/s
Size
Ø130 mm
Version
With NOOD water trap
