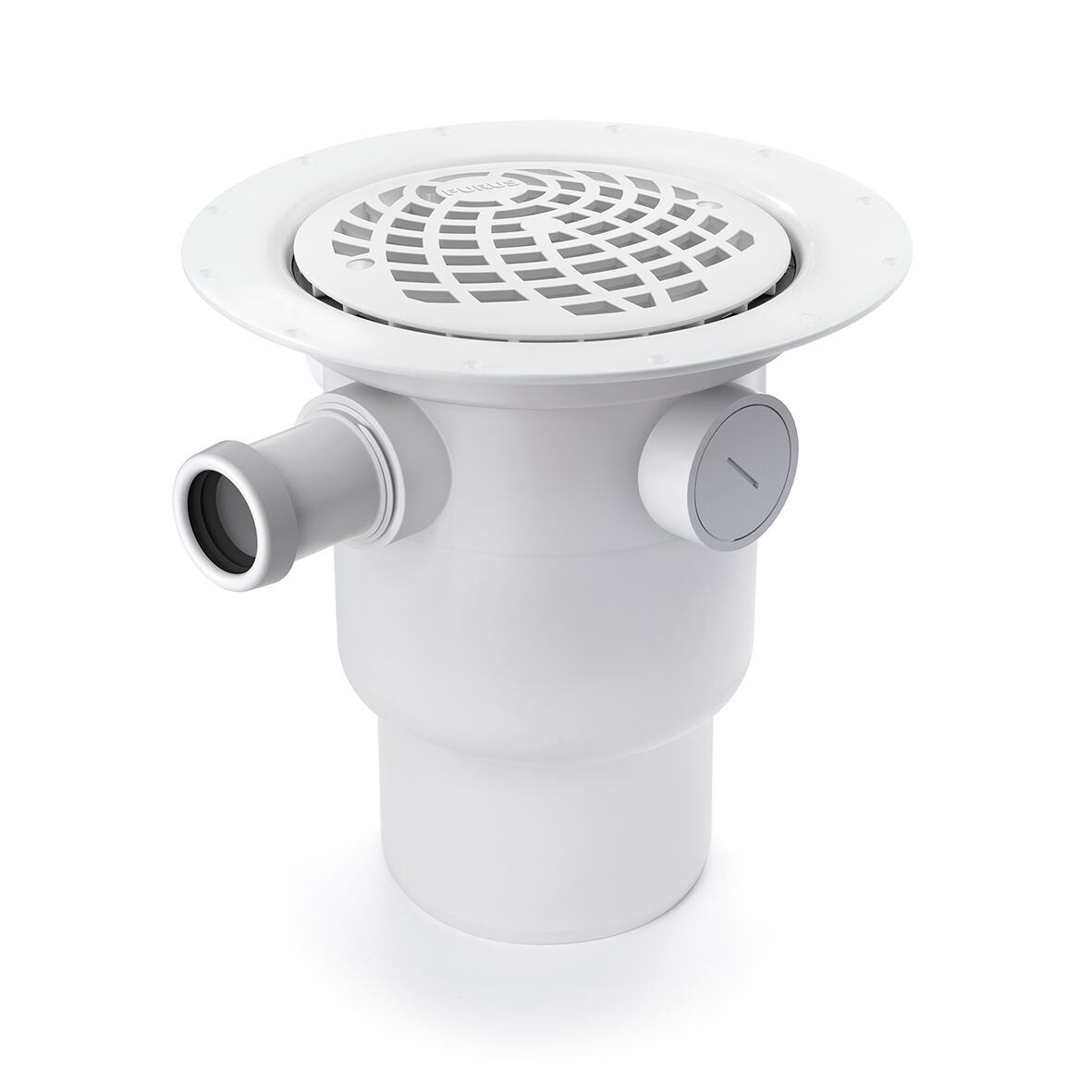

The Loke 75/110 Vertical floor drain has a dual vertical outlet with dimensions of 75mm and 110mm; as well as three extra inlets. Only one of the extra inlets should be used. The floor drain is suitable for installation in wooden or concrete joists. The Loke floor drain comes complete with a removable water trap with splash guard, clamping ring and plastic grate. It also comes with a protective cover that is intended to prevent any concrete or debris from installation from entering the drain. When installing the Loke floor drain with the Purus Plate (2014 model), the extension ring should not be used.
The automatic clamping ring is used for both sealing membrane and vinyl flooring. It is a self-adjusting clamping ring for vinyl flooring with a thickness of 1,5 mm to 2 mm.
The automatic clamping ring is used for both sealing membrane and vinyl flooring. It is a self-adjusting clamping ring for vinyl flooring with a thickness of 1,5 mm to 2 mm.
- Floor drain with 3 extra inlets and 2 connection diameters
- The Loke comes complete with an automatic clamping ring, water trap, splash guard and grating
- Removable water trap and splash guard for easy cleaning
- The automatic clamping ring means that no o-ring or loose screws need to be used during installation
- The grating is designed to prevent any residual water from pooling
RSK Number
7113588
Floor Construction
Concrete/Wood
Floor Covering
Concrete/Resin/Tiles/Vinyl
Function
Bottom outlet
Item Color
White
Material
PP
Outlet Dimension
Ø75/Ø110 mm
Pressure Flow Temp
1,4 l/s
Size
Ø150 mm
Version
With extra inlet
