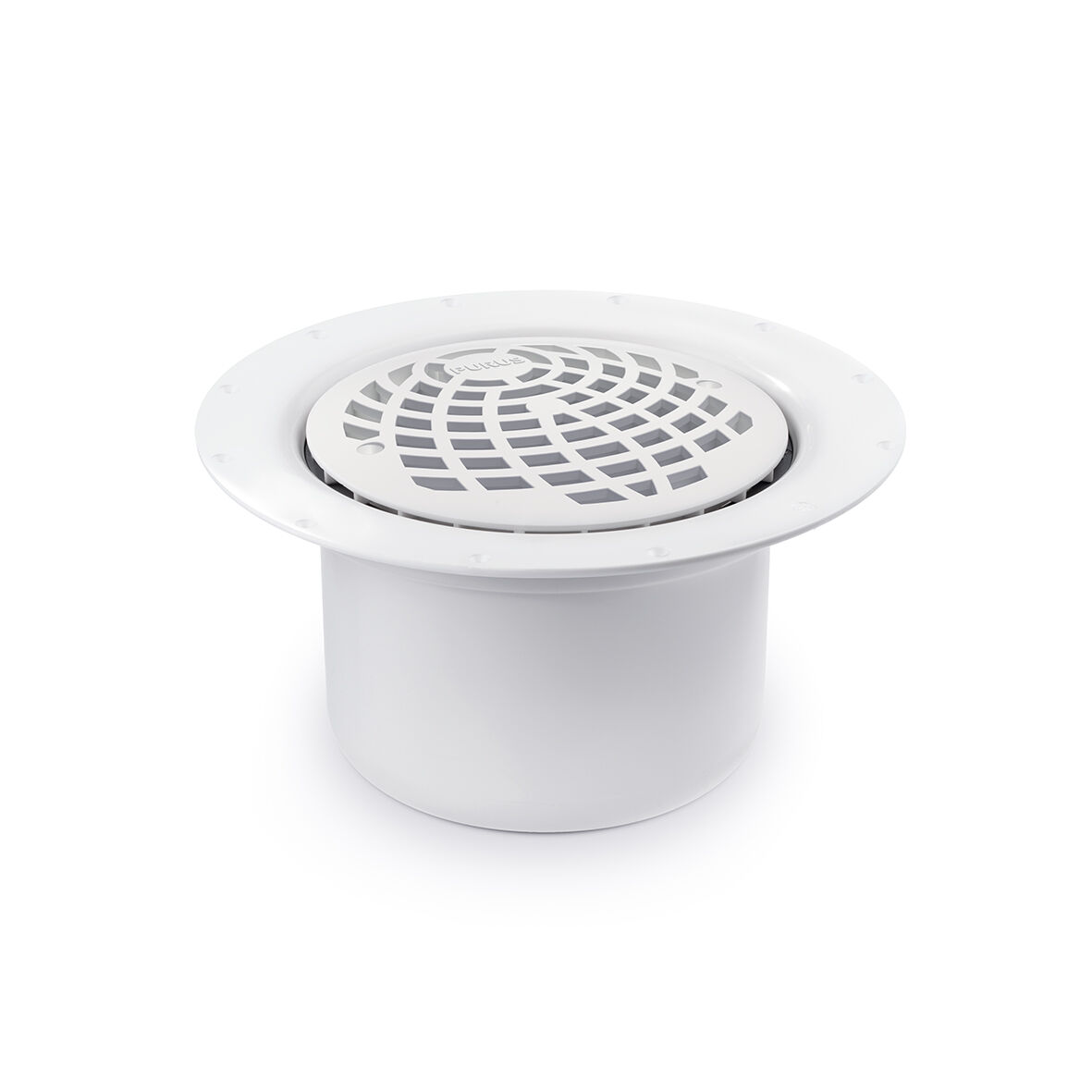

The Duschbrunn 50 Vertical floor drain has a 50mm vertical outlet and a total height of 98mm. It is suitable for installation in wooden or concrete joists. The Duschbrunn floor drain comes complete with a removable water trap, clamping ring and plastic grate. It also comes with a protective cover that is intended to prevent any concrete or debris from installation from entering the drain.
The automatic clamping ring is used for both sealing membrane and vinyl flooring. It is a self-adjusting clamping ring for vinyl flooring with a thickness of 1,5 mm to 2 mm.
The automatic clamping ring is used for both sealing membrane and vinyl flooring. It is a self-adjusting clamping ring for vinyl flooring with a thickness of 1,5 mm to 2 mm.
- Low-built
- The floor drain comes complete with an automatic clamping ring and NOOD water trap
- Removable NOOD water trap for easy cleaning
- The automatic clamping ring means that no o-ring or loose screws need to be used during installation
- The floor drain grating is designed to prevent any residual water from pooling
RSK Number
7113527
Floor Construction
Concrete/Wood
Floor Covering
Concrete/Resin/Tiles/Vinyl
Function
Bottom outlet
Item Color
White
Material
ABS
Outlet Dimension
Ø50 mm
Pressure Flow Temp
0,8 l/s
Size
Ø150 mm
Version
With plastic grating
