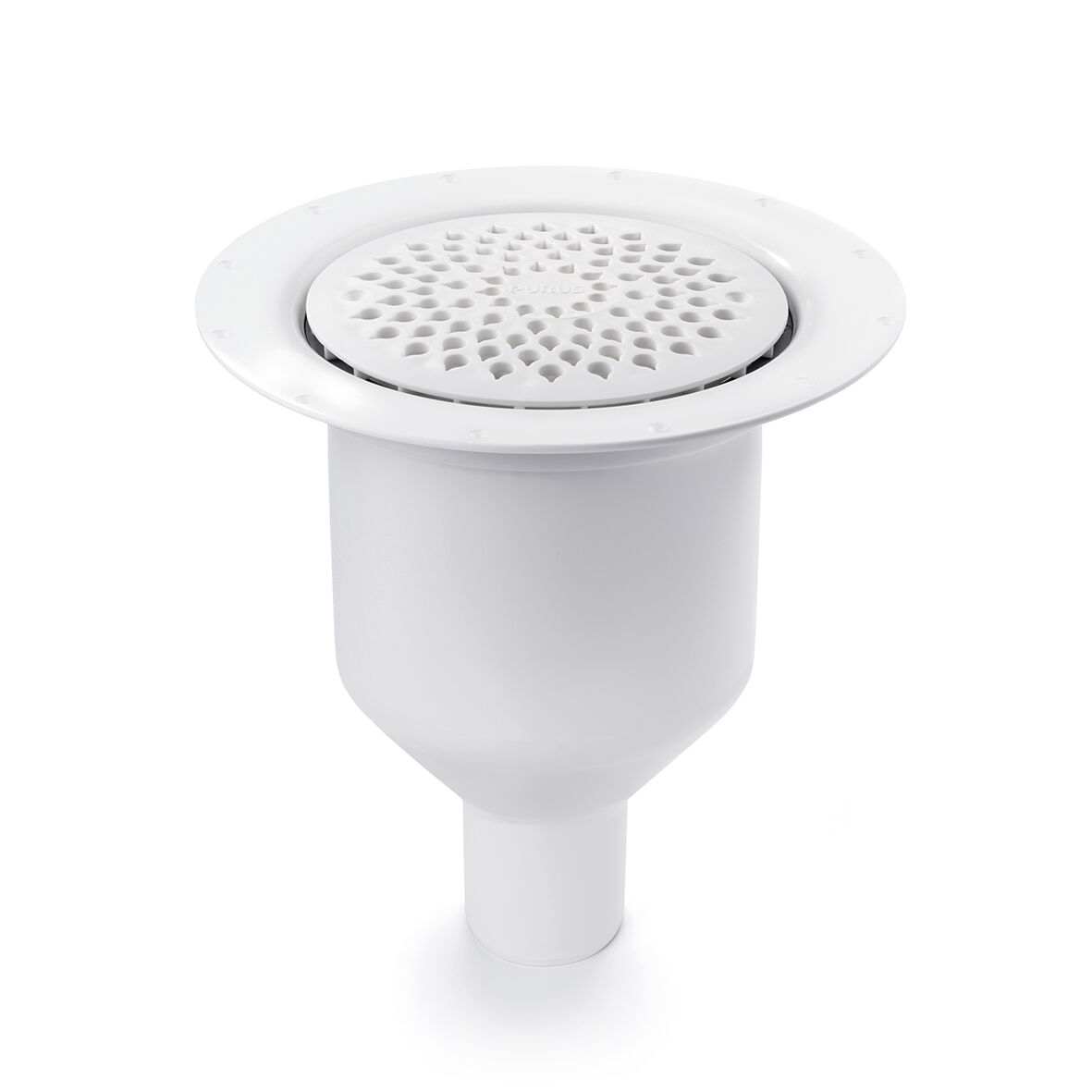

The Brage 50 floor drain has a 50 vertical outlet and is for installation in wooden or concrete joists. The Brage floor drain comes complete with a removable water trap, clamping ring and plastic grate. It also comes with a protective cover that is intended to prevent any concrete or debris from installation from entering the drain.
The automatic clamping ring is used for both sealing membrane and vinyl flooring. It is a self-adjusting clamping ring for vinyl flooring with a thickness of 1,5 mm to 2 mm.
The automatic clamping ring is used for both sealing membrane and vinyl flooring. It is a self-adjusting clamping ring for vinyl flooring with a thickness of 1,5 mm to 2 mm.
- The floor drain comes complete with an automatic clamping ring, water trap and grating
- Removable water trap for easy cleaning
- The automatic clamping ring means that no o-ring or loose screws need to be used during installation
- The grating is designed to prevent any residual water from pooling
RSK Number
7113927
Floor Construction
Concrete/Wood
Floor Covering
Concrete/Resin/Tiles/Vinyl
Function
Bottom outlet
Item Color
White
Material
ABS
Outlet Dimension
Ø50 mm
Pressure Flow Temp
1,1 l/s
Size
150
Version
With plastic grating
