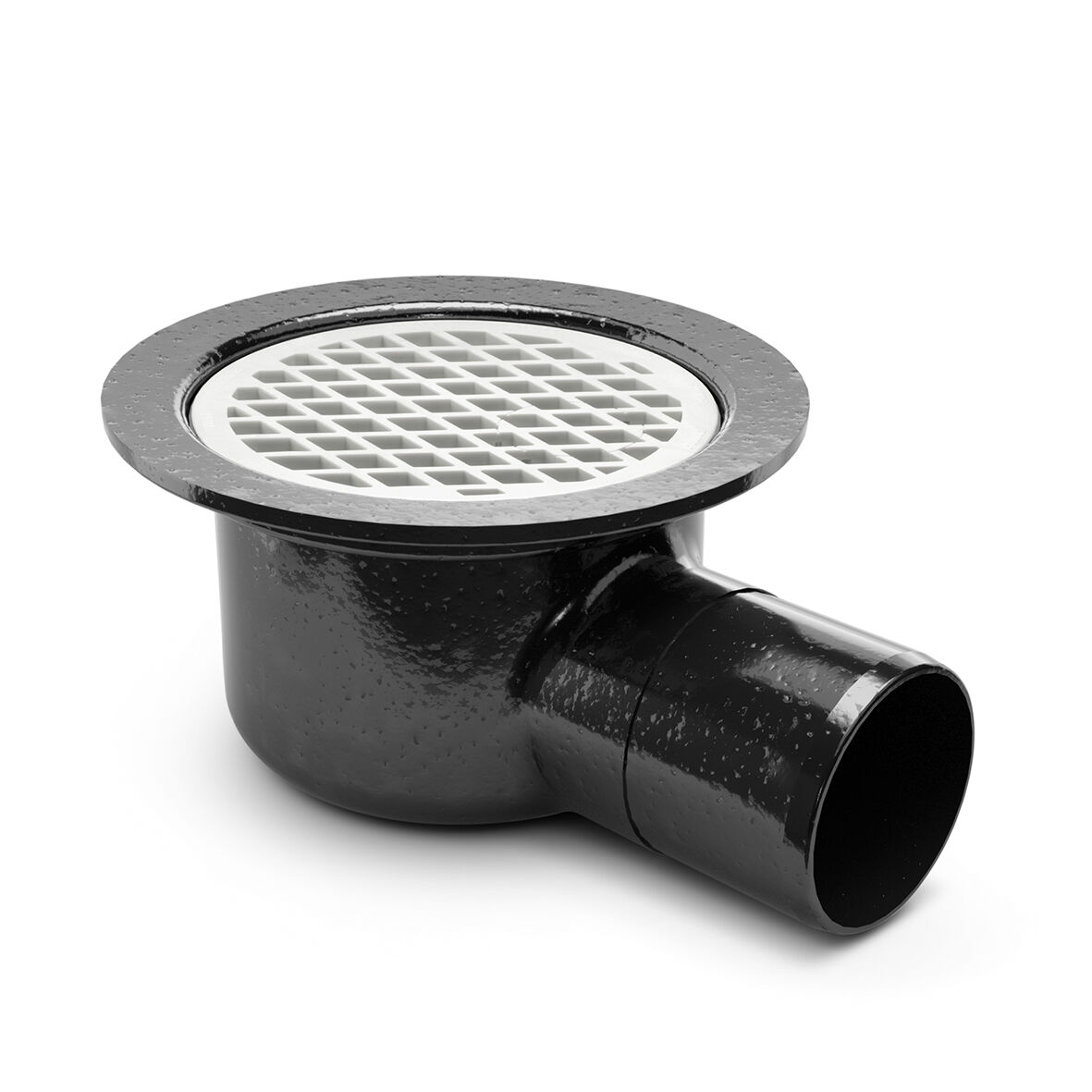

The Bigg 110 E floor drain has a 110 mm side outlet and is for installation in concrete joists. It is manufactured in epoxy coated cast iron and comes complete with a removable water trap, clamping ring and plastic grate. It also comes with a protective cover that is intended to prevent any concrete or debris from installation from entering the drain.
The automatic clamping ring is used for both sealing membrane and vinyl flooring. It is a self-adjusting clamping ring for vinyl flooring with a thickness of 1,5 mm to 2 mm.
The automatic clamping ring is used for both sealing membrane and vinyl flooring. It is a self-adjusting clamping ring for vinyl flooring with a thickness of 1,5 mm to 2 mm.
- Sound-absorbing
- Fireproof
RSK Number
7102819
Floor Construction
Concrete flooring
Floor Covering
Concrete/Resin/Tiles/Vinyl
Function
Side outlet
Item Color
Black
Material
Cast iron, PP
Outlet Dimension
Ø110 mm
Pressure Flow Temp
2,2 l/s
Size
Ø220 mm
Surface
Epoxy coated
Version
With plastic grating
