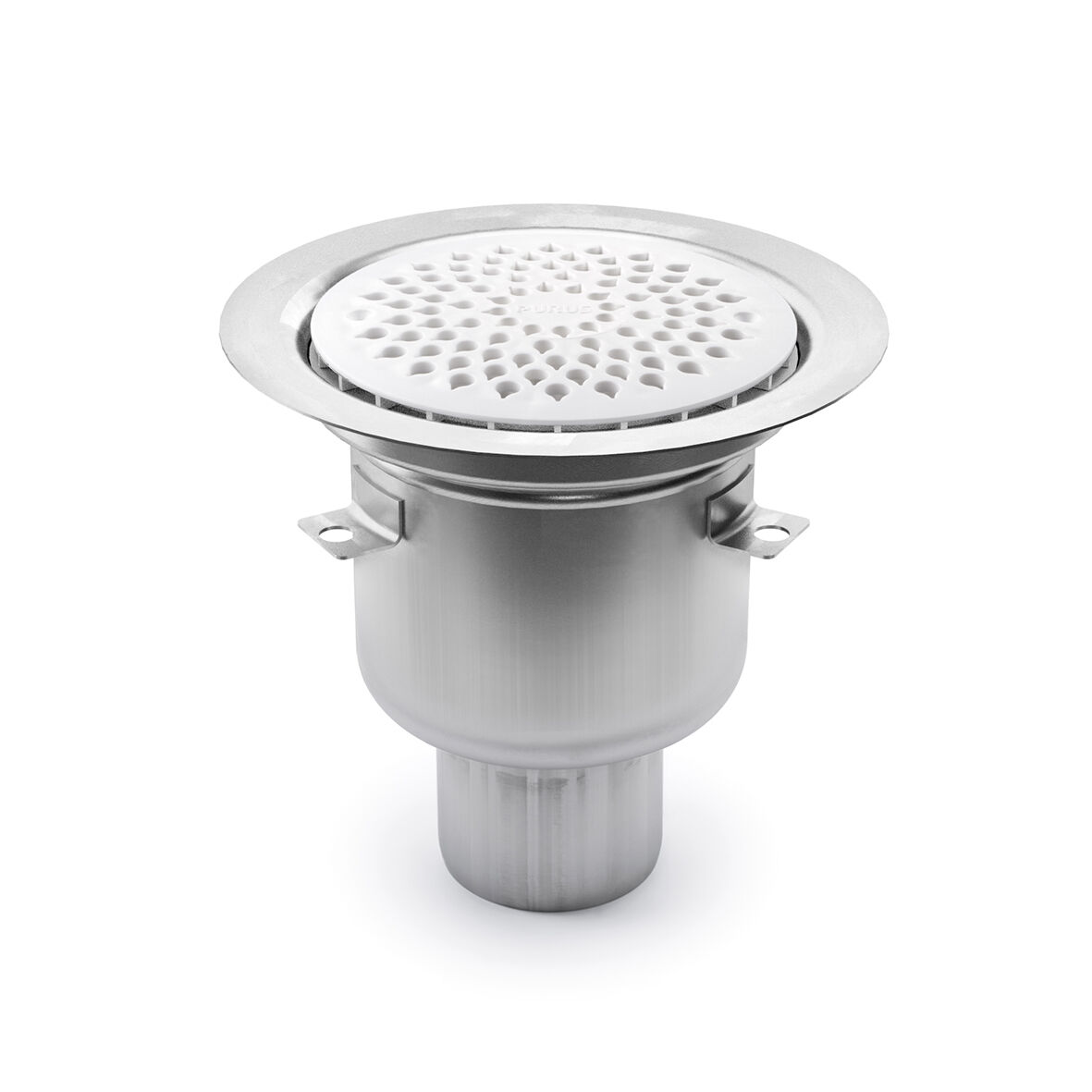

Floor drain Balder 75 NOOD

The Balder 75 R Vertical floor drain has a 75mm vertical outlet and is for installation in wooden or concrete joists. The Balder floor drain comes complete with a removable stainless steel NOOD water trap, clamping ring and stainless steel grate. The NOOD water trap is a mechanical trap which closes when there is no water present, thus preventing any foul air from escaping through the drain. The floor drain also comes with a protective cover that is intended to prevent any concrete or debris from installation from entering the drain.

The Balder 75 R Vertical floor drain has a 75mm vertical outlet and is for installation in wooden or concrete joists. The Balder floor drain comes complete with a removable stainless steel NOOD water trap, clamping ring and stainless steel grate. The NOOD water trap is a mechanical trap which closes when there is no water present, thus preventing any foul air from escaping through the drain. The floor drain also comes with a protective cover that is intended to prevent any concrete or debris from installation from entering the drain.
The F92 B floor drain has a 75mm vertical outlet and is for installation in wooden or concrete joists. It comes complete with a removable stainless steel NOOD water trap, clamping ring and plastic grate. The NOOD water trap is a mechanical trap which closes when there is no water present, thus preventing any foul air from escaping through the drain. It also acts as a 1m water column and prevents backflow. The floor drain also comes with a protective cover that is intended to prevent any concrete or debris from installation from entering the drain.
Size
150
RSK Number
7152479
Material
Acid-resistant stainless steel 1.4404, PP
Floor Covering
Concrete/Resin/Tiles/Vinyl
Surface
Cold rolled (2B)
Version
With NOOD water trap
Item Color
Stainless
Pressure Flow Temp
1,1 l/s
Outlet Dimension
Ø75 mm
Function
Bottom outlet
Size
150
RSK Number
7152411
Material
Acid-resistant stainless steel 1.4404, PP
Floor Covering
Concrete/Resin/Tiles/Vinyl
Surface
Cold rolled (2B)
Version
With NOOD water trap
Item Color
Stainless
Pressure Flow Temp
1,1 l/s
Outlet Dimension
Ø75 mm
Function
Bottom outlet
Installation instructions
Maintenance Instructions
Type approval
Tech drawing
Installation instructions
Maintenance Instructions
Tech drawing
